Siemens SIMATIC IFP2200

Technical information
7.6 Interface description
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
110 Operating Instructions, 07/2016, A5E31298376-AF

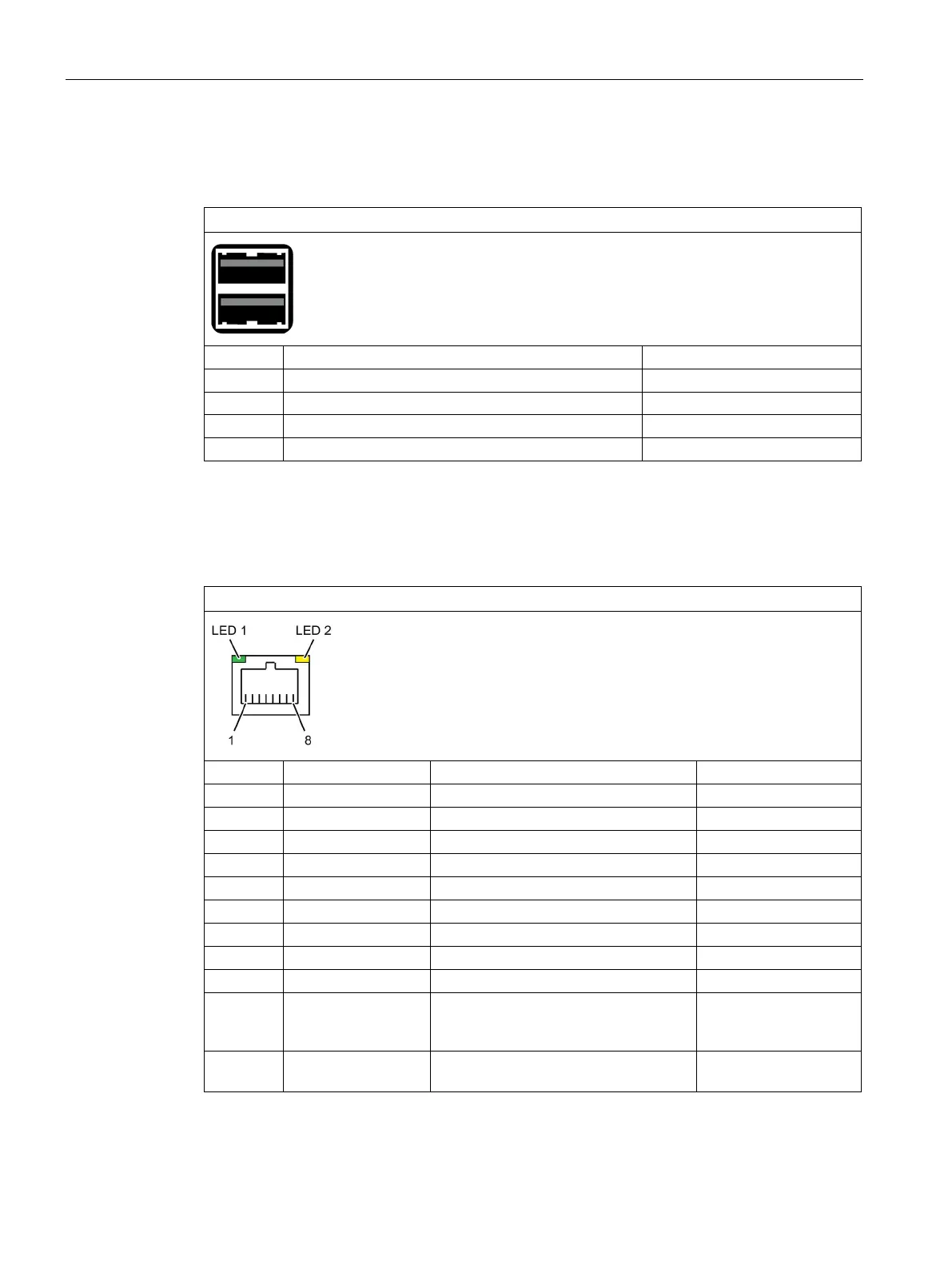

7.6.5
USB hub, Type A
USB port
Pin No.
Abbreviation
Signal
1 VCC + 5 V (fused)
2
- Data
Data channel
3 + Data Data channel
4
GND
Ground
7.6.6
Ethernet
Ethernet RJ45 interface
Pin no.
Short description
Meaning
Input / output
1
BI_DA+
Bi-directional data A+
Input/output
2
BI_DA-
Bi-directional data A-
Input/output
3
BI_DB+
Bi-directional data B+
Input/output
4
BI_DC+
Bi-directional data C+
Input/output
5
BI_DC-
Bi-directional data C-
Input/output
6
BI_DB-
Bi-directional data B-
Input/output
7
BI_DD+
Bi-directional data D+
Input/output
8
BI_DD-
Bi-directional data D-
Input/output
S
Shield
–
LED 1 Off: 10 Mbps
Green light: 100 Mbps
Orange light: 1000 Mbps
–
LED 2 Lit: Active connection, e.g., to a hub
Flashing: Activity
–
The Ethernet interface supports MDXI (auto crossover) for all transmission rates.
