Installing and connecting the device
3.2 Installing the built-in unit
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
Operating Instructions, 07/2016, A5E31298376-AF
41
● Ensure that the protective contact socket of the building installation is easily accessible
and that there is a mains disconnect switch in switchgear cabinet installations.
● Position the device so that it is not exposed to direct sunlight.
● Position the device so that it is easily accessible for the operator.
● Choose a suitable installation height.
● Ensure that the air vents of the device are not covered as a result of installation. Note the
permitted mounting positions.
Mounting clips or mounting brackets, position for IP65

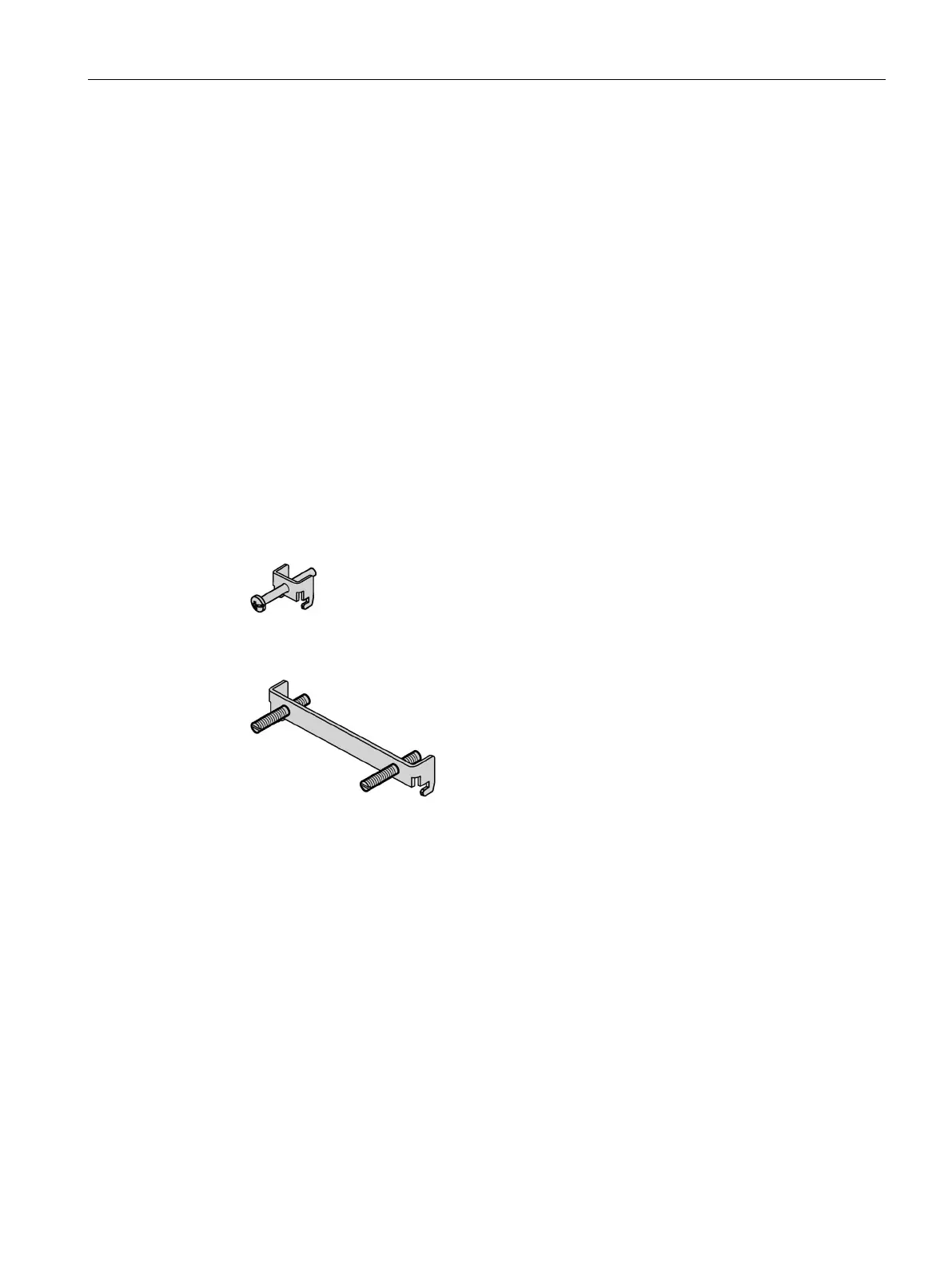

Types of mounting clips and mounting brackets
You can mount the device as follows:
● Device with 15", 19" or 22" display:
with 12 steel mounting clips (included in the product package and available as
accessories)
● Device with 15", 19" or 22" display:
With 6 mounting brackets (available as accessories)
See also section "Accessories (Page 23)".
