1.4 Design of the PRO devices
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
20 Operating Instructions, 07/2016, A5E31298376-AF

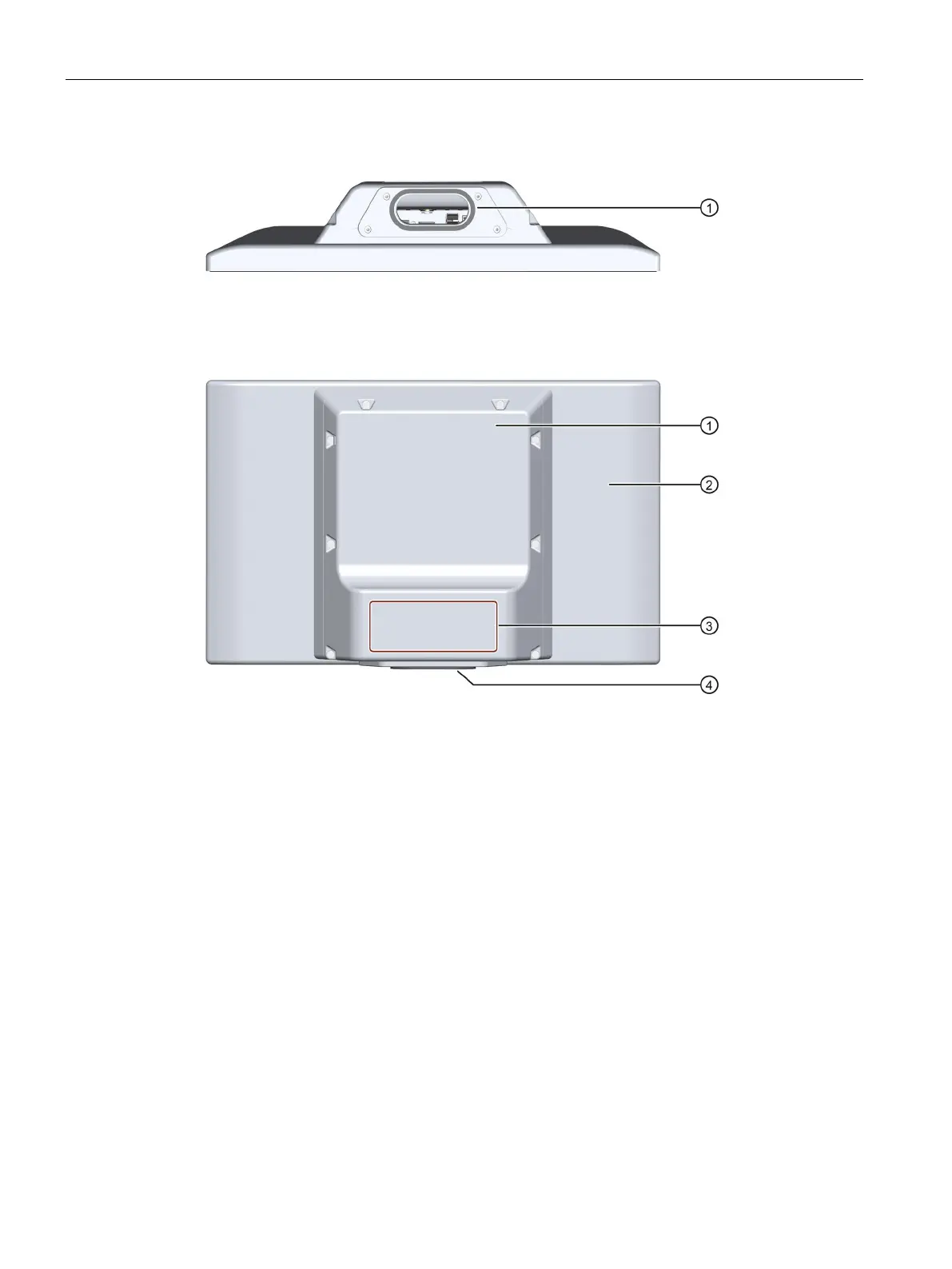

Bottom view
①
Mechanical interface for fastening
Rear view
①
Backplane cover
②
Enclosure
③
Rating plate
④
Mechanical interface for fastening
