9.5 Configure BACnet client
PN/BACnet LINK
66 Operating Instructions, 10/2017, A5E39895543-AA
Check the status address and the control address
On the "Status and control address" page, you can see the addresses in the process image
that contain the status byte and the control byte for the sever functionality. (see Data
exchange between controller and PN/BACnet LINK (Page 32)).
The addresses are defined by the HSP and can be influenced by moving the start addresses
of the BACnet server (see I/O addresses).
Adapting I/O addresses
The "I/O addresses" page allows you to set the start and end addresses of the input and
output data of the BACnet server. In addition, the address range can be assigned to an
organization block and a process image.
9.5
Configure BACnet client
9.5.1
Set client-specific parameters
With the client functionality, the PN/BACnet LINK can access objects in other BACnet
devices. You define the data exchange with the various BACnet devices by "plugging" in
BACnet devices and then configuring references to objects contained in them.

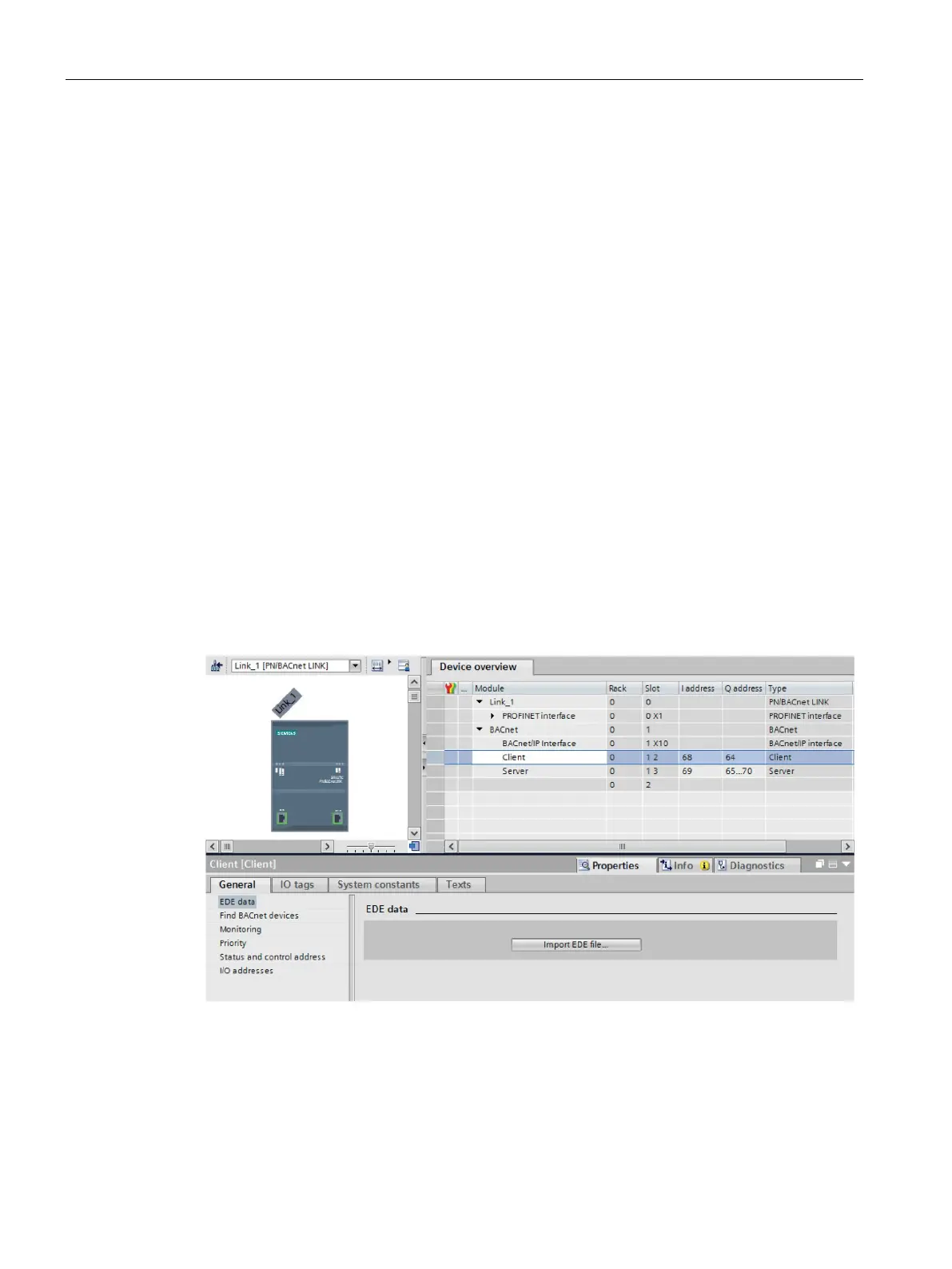

Figure 9-8 BACnet client
