Diagnostics
10
10.1
Status LEDs
10.1.1
Operating state of the PN/BACnet LINK / PROFINET diagnostics
The LEDs for visualizing the operating states of the PN/BACnet LINK and the PROFINET
ports are located on the front of the housing.

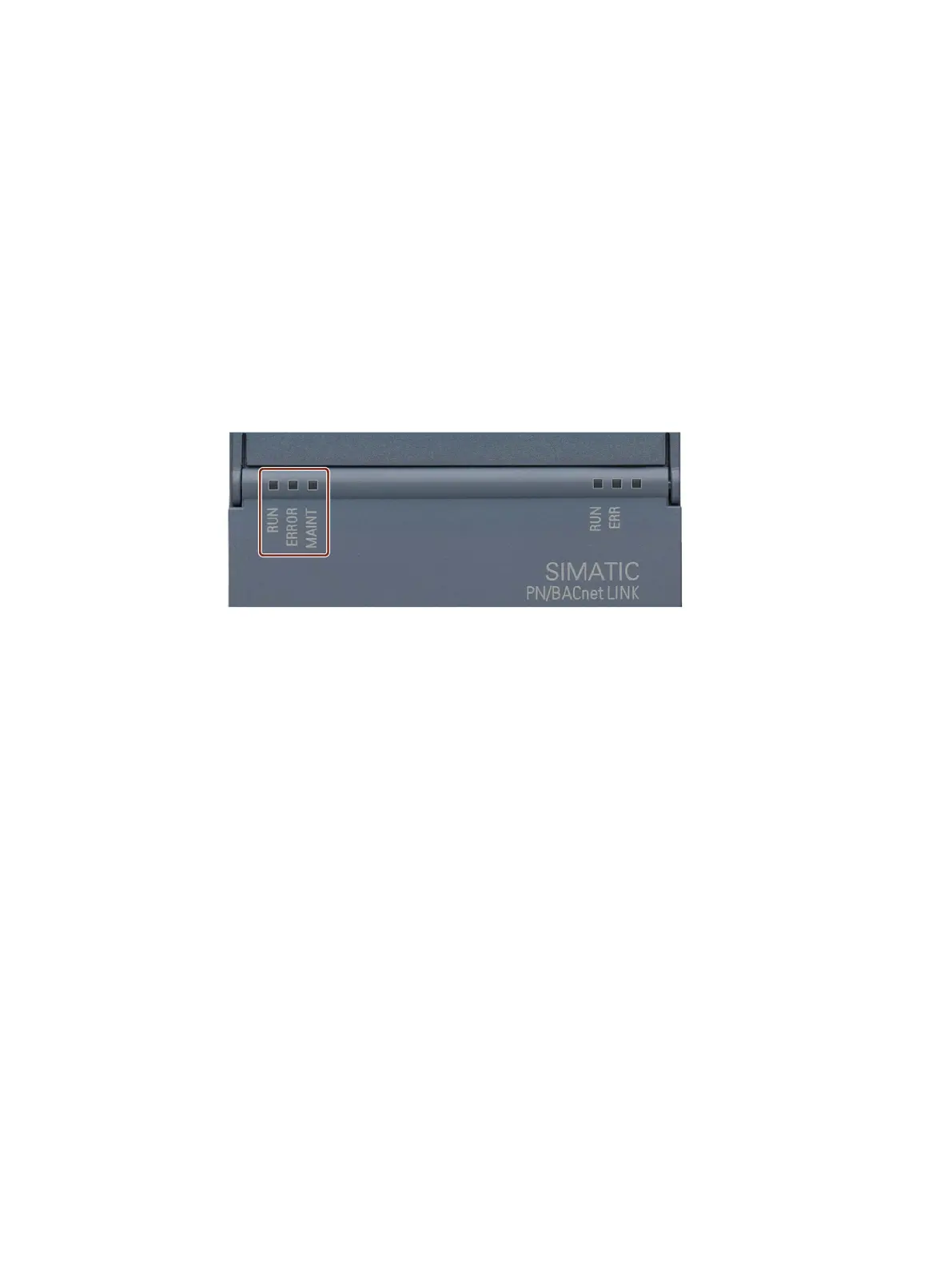

Figure 10-1 Status LEDs – Operating state of the PN/BACnet LINK / PROFINET diagnostics
