Programming via SIMATIC controller
8.6 Programming the Ident profile
SIMATIC RF650R/RF680R/RF685R
Configuration Manual, 03/2018, C79000-G8976-C386-06
151

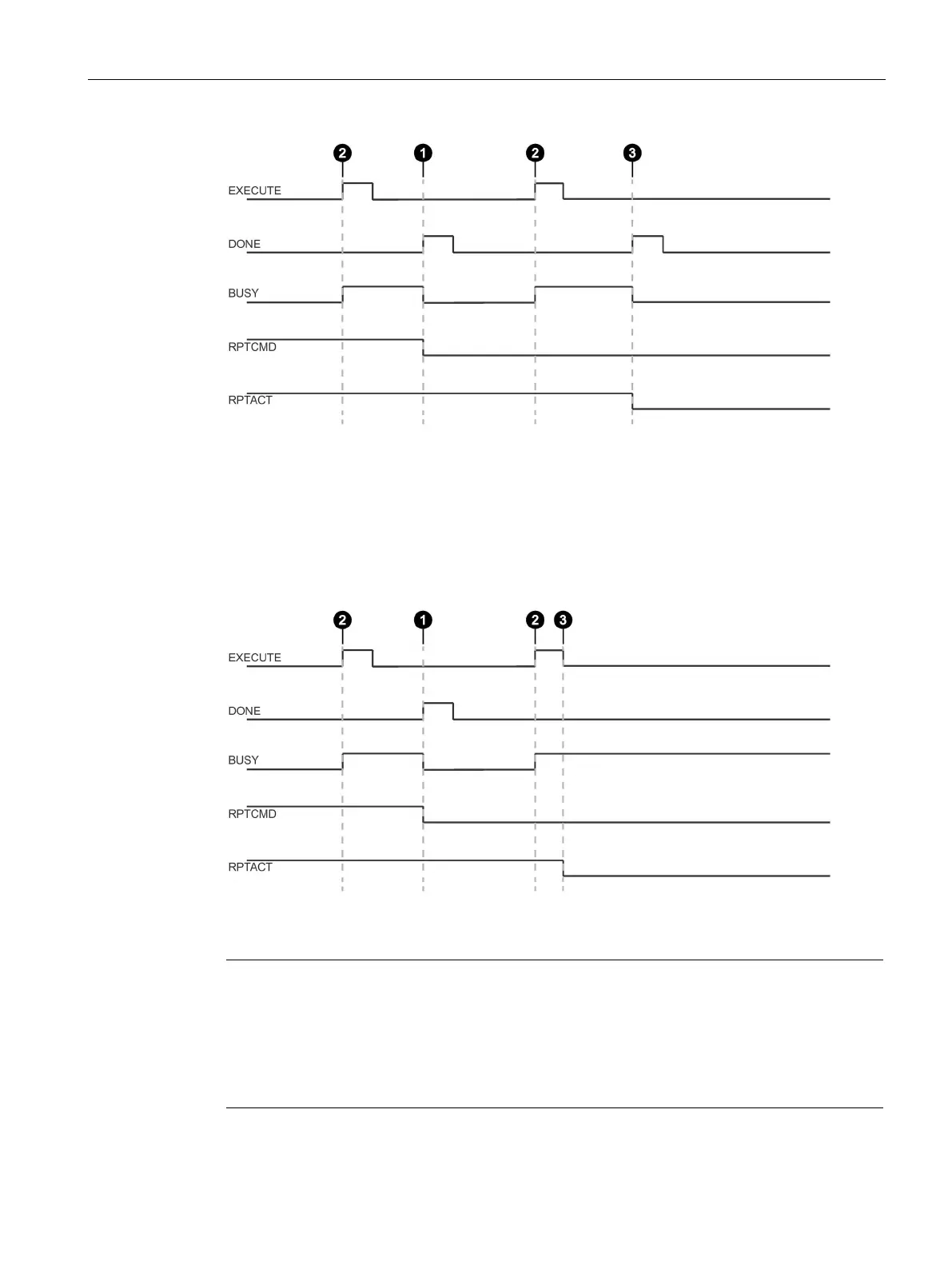

Figure 8-22 End the Repeat command by resetting "RPTCMD" (ended normally)
The "RPTACT" output parameter is reset by the reader. Under certain circumstances, it is
possible that resetting "RPTACT" will be delayed. In other words not at the same time as the
"DONE" of the last acknowledgement. If the block is now restarted with "EXECUTE" and
"RPTACT" is still set although there are no longer any results in the buffer, the block is not
ended (BUSY = 1). In this case, you can wait until the next transponders are read out. As an
alternative, the block can be ended with "INIT" or "SRESET".
Figure 8-23 End the Repeat command by resetting "RPTCMD" (the last command remains pending)
Note
End the Repeat command with "INIT" or "SRESET"
End the Repeat command using the input
parameters "INIT" or "SRESET" if it is not known
how many transponders were still processed after resetting the "RPTCMD" input parameter.
Normally, an "SRESET" is performed significantly faster because not reset routine is run
through.
