Description
3.1 Properties of the UHF readers
SIMATIC RF650R/RF680R/RF685R
18 Configuration Manual, 03/2018, C79000-G8976-C386-06

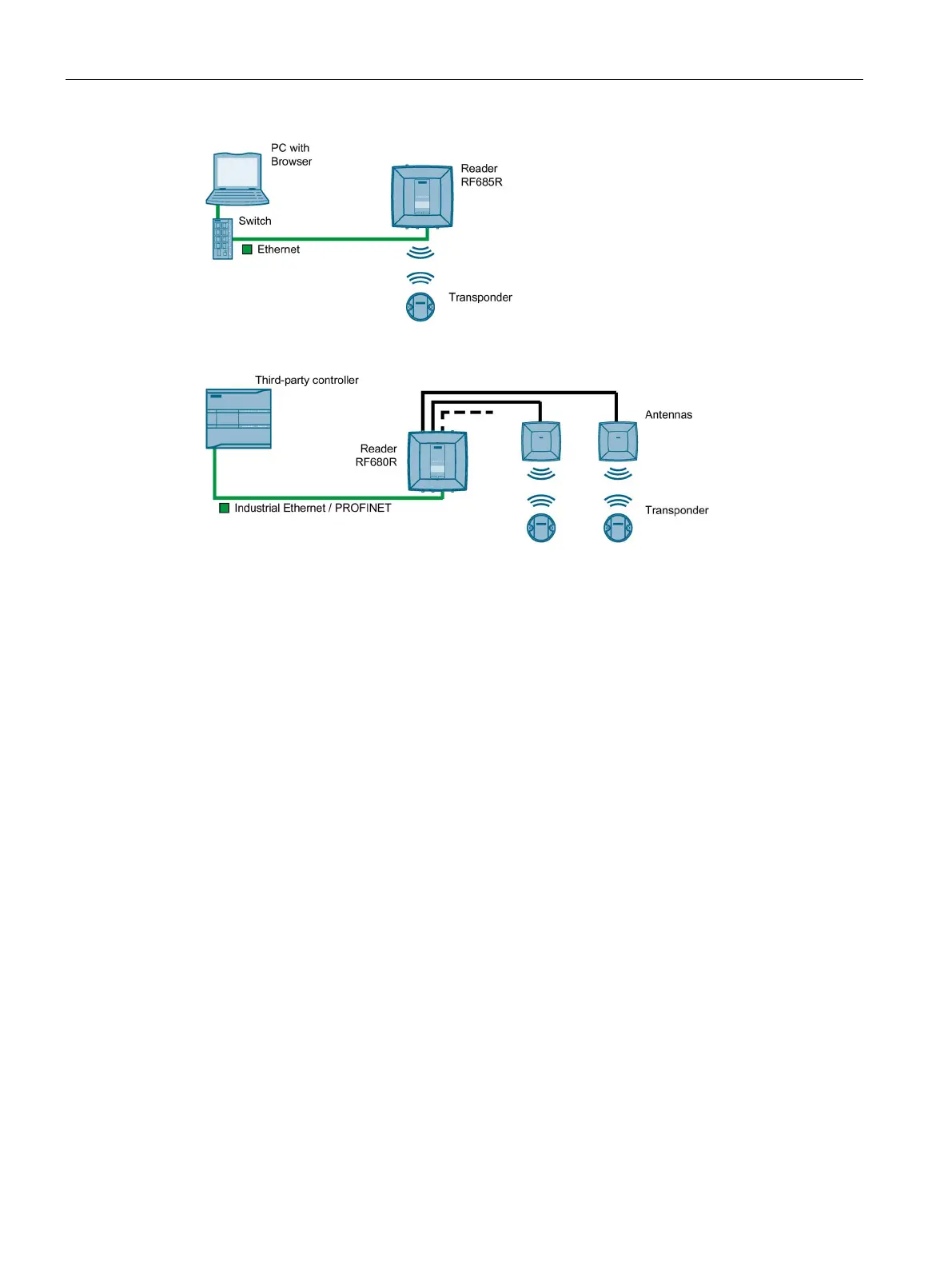

Figure 3-4 RF685R in an IT environment, without external antenna
Figure 3-5 RF680R reader in an automation environment (PROFINET) with use of third-party
controller
All 3 readers can be integrated in an IT environment (XML, OPC UA). The RF68xR readers
can be integrated both in an IT and in an automation environment (S7).
The RF685R reader can also be operated without external antennas.
