Description
3.1 Properties of the UHF readers
SIMATIC RF650R/RF680R/RF685R
Configuration Manual, 03/2018, C79000-G8976-C386-06
17
The following certificates and approvals are currently available for the RF650R, RF680R and
RF685R readers:
RF650R certificates (https://support.industry.siemens.com/cs/ww/en/ps/15085/cert
)
RF680R/RF685R certificates (https://support.industry.siemens.com/cs/ww/en/ps/15088/cert)

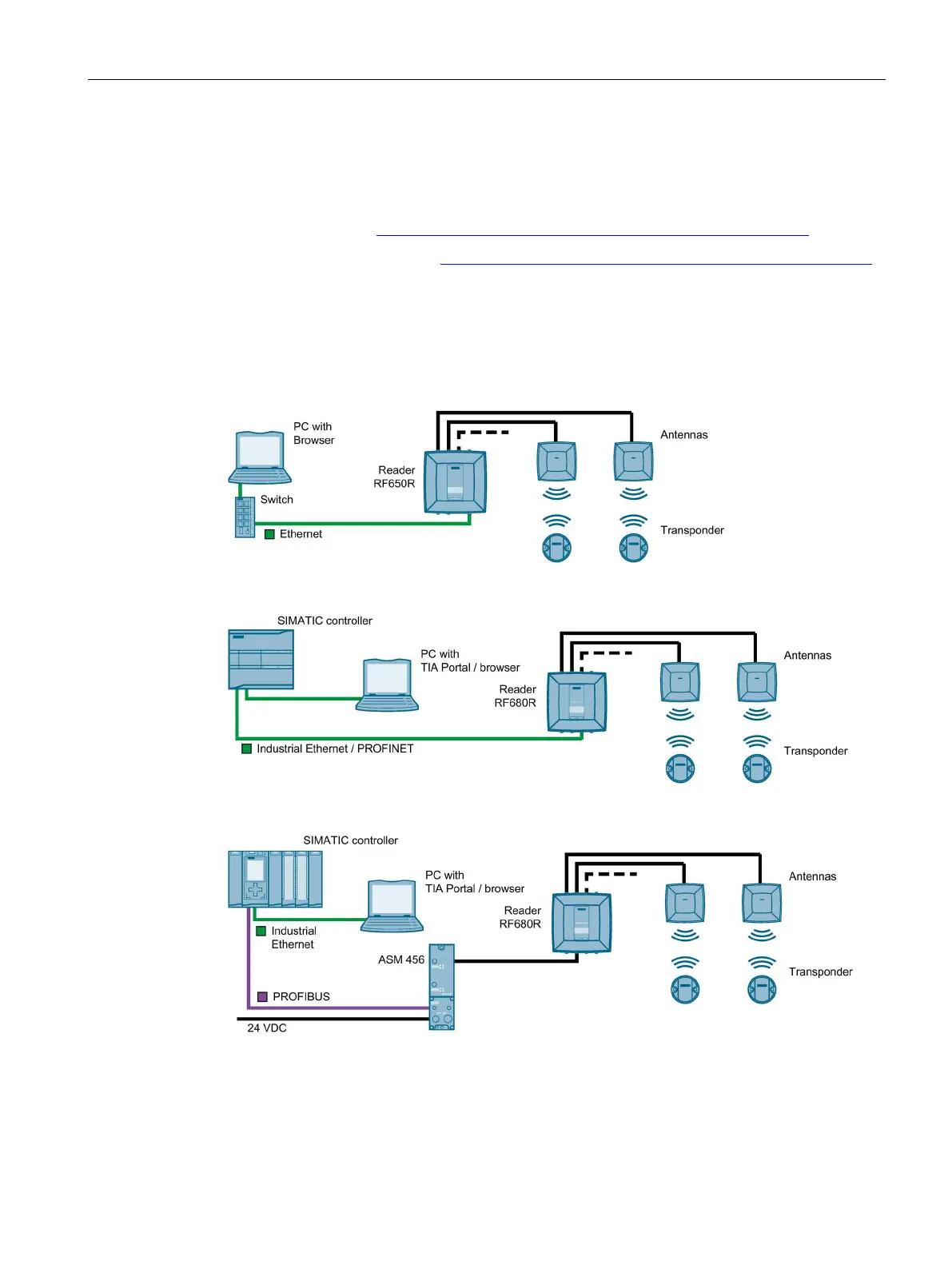

The following figures show examples of some of the of the integration options of the readers.
Note that in all examples, the connection of the readers RF680R and RF685R can be via a
SIMATIC controller both via Industrial Ethernet / PROFINET and via PROFIBUS.
Figure 3-1 RF650R reader in an IT environment
Figure 3-2 RF680R reader in an automation environment (PROFINET)
Figure 3-3 RF680R reader in an automation environment (PROFIBUS)
