Configuring with the WBM
7.3 The menu items of the WBM
SIMATIC RF650R/RF680R/RF685R
Configuration Manual, 03/2018, C79000-G8976-C386-06
71
Example of a filter - "Pallet"
The following filter example shows how to create the suitable filter for the sample scenario
described.
1. Click on the "Insert" button and select the newly created filter.
2. Name: Enter a name in the input box.
3. Bank: Select the memory area "1 - GEN2 - EPC" from the drop-down list.
4. Start address: Enter "8" in the input box as the start address.
The EPC-ID starts at the 4th byte of the memory area "EPC". Each byte writes two
positions of the EPC-ID. To address the 10th position of the EPC-ID, you therefore need
to select the 8th byte:
5. Length: Enter "1" in the input box as the number of bytes.
Each byte contains two positions of the EPC-ID. Since only one position is relevant in this
example, you need to mask out the second position using the mask.
6. Criterion: Enter "03" in the input box as the criterion.
Since only the second position is relevant in this example, the first position of the criterion
can have any other value.
7. Mask: Enter the value "0F" in the input box.
This specifies the positions in the EPC-ID relevant for filtering out.
8. Inclusive/exclusive filters: Select the "Inclusive filter" filter type.

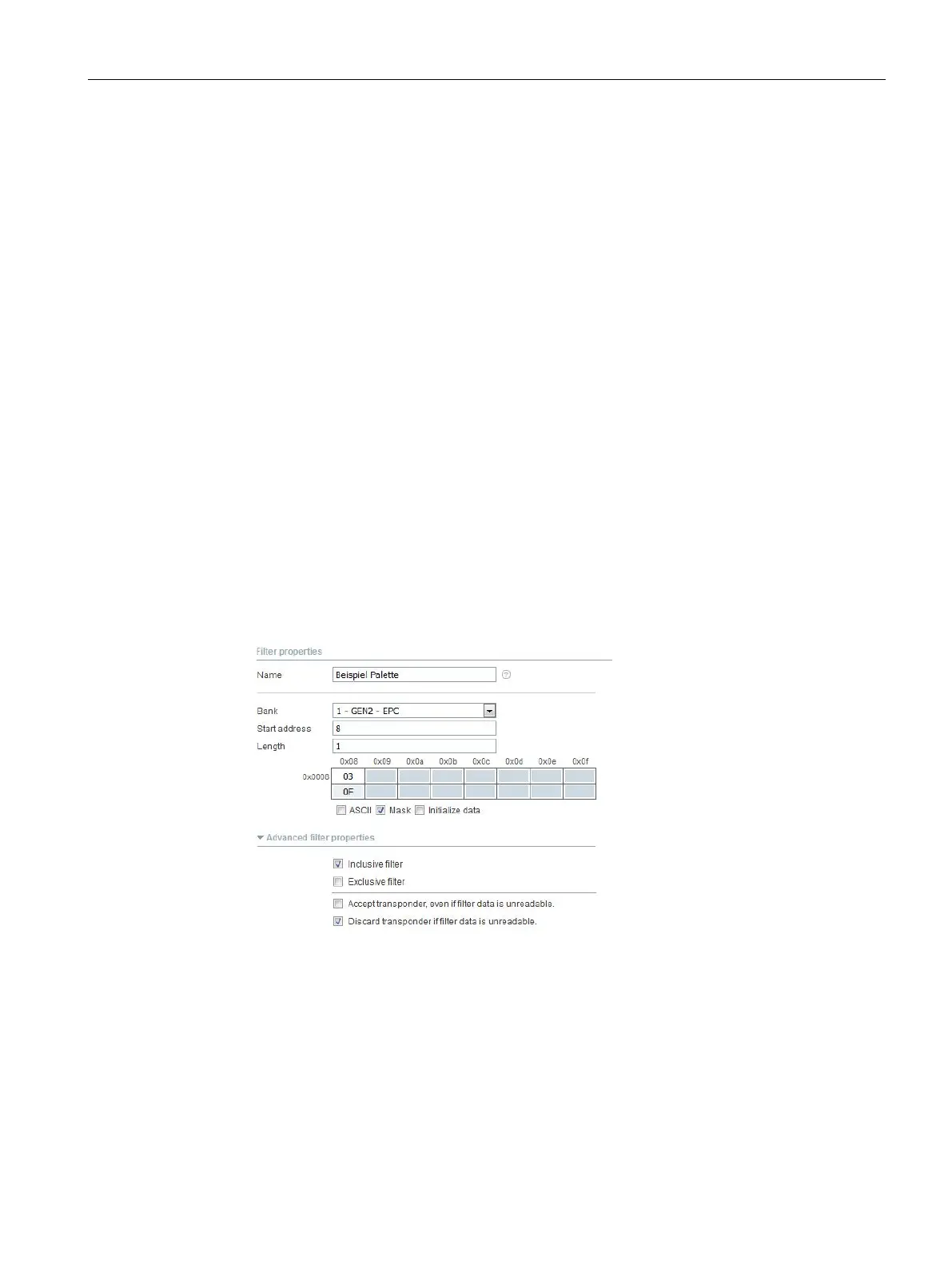

Figure 7-11 Example of a filter
9. Unreadable filter data: Select how the reader handles transponders whose filter data
cannot be read out.
10.Enable the filter in the "Settings - Read points" menu item and transfer the configuration
to the reader.
