Getting Started
60 A5E37208904-003, 04/2017

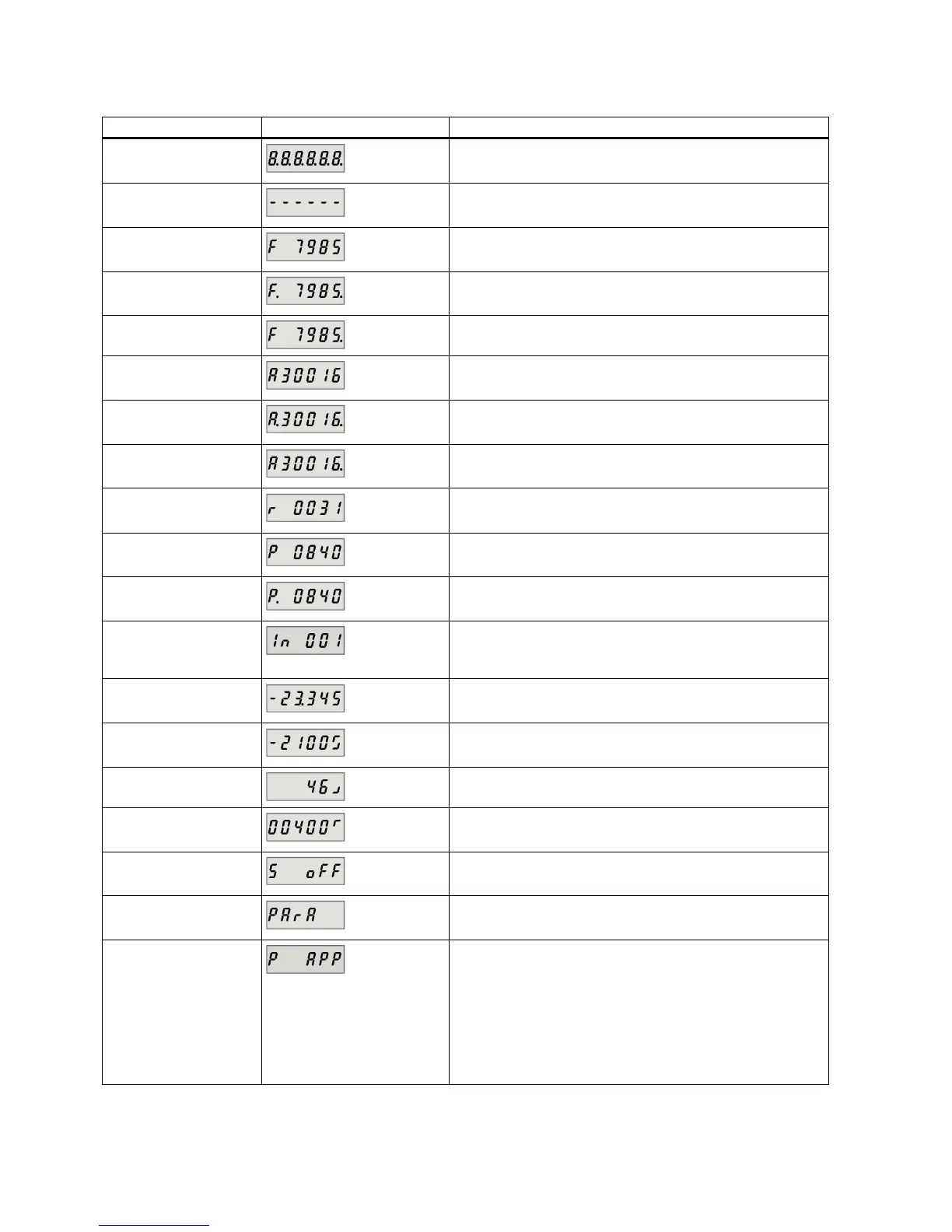

BOP displays
Display
Example
Description
8.8.8.8.8.8.
Drive is in startup state
------
Drive is busy
Fxxxxx
Fault code, in the case of a single fault
F.xxxxx. Fault code of the first fault, in the case of multiple faults
Fxxxxx.
Fault code, in the case of multiple faults
Axxxxx
Alarm code, in the case of a single alarm
A.xxxxx.
Alarm code of the first alarm, in the case of multiple alarms
Axxxxx. Alarm code, in the case of multiple alarms
Rxxxxx
Parameter number, read-only parameter
Pxxxxx
Parameter number, editable parameter
P.xxxxx
Parameter number, editable parameter; the dot means that at
least one parameter has been changed
In xxx Indexed parameter
Figure after "
In
" indicates the number of indices.
For example, "In 001" means that this indexed parameter is 1.
xxx.xxx
Negative parameter value
xxx.xx<>
Current display can be moved to left or right
xxxx.xx>
Current display can be moved to right
xxxx.xx<
Current display can be moved to left
S Off
Operating display: servo off
Para
Editable parameter group
P xxxx Parameter group
Five groups are available:
1.
P APP
: application
2.
P BASE
: basic
3.
P CON
: communication
4.
P EPOS
: basic positioner
5.
P ALL
: all parameters
