Connecting
4.5 Encoder interface - X9
SINAMICS V90, SIMOTICS S-1FL6
166 Operating Instructions, 04/2019, A5E36037884-007

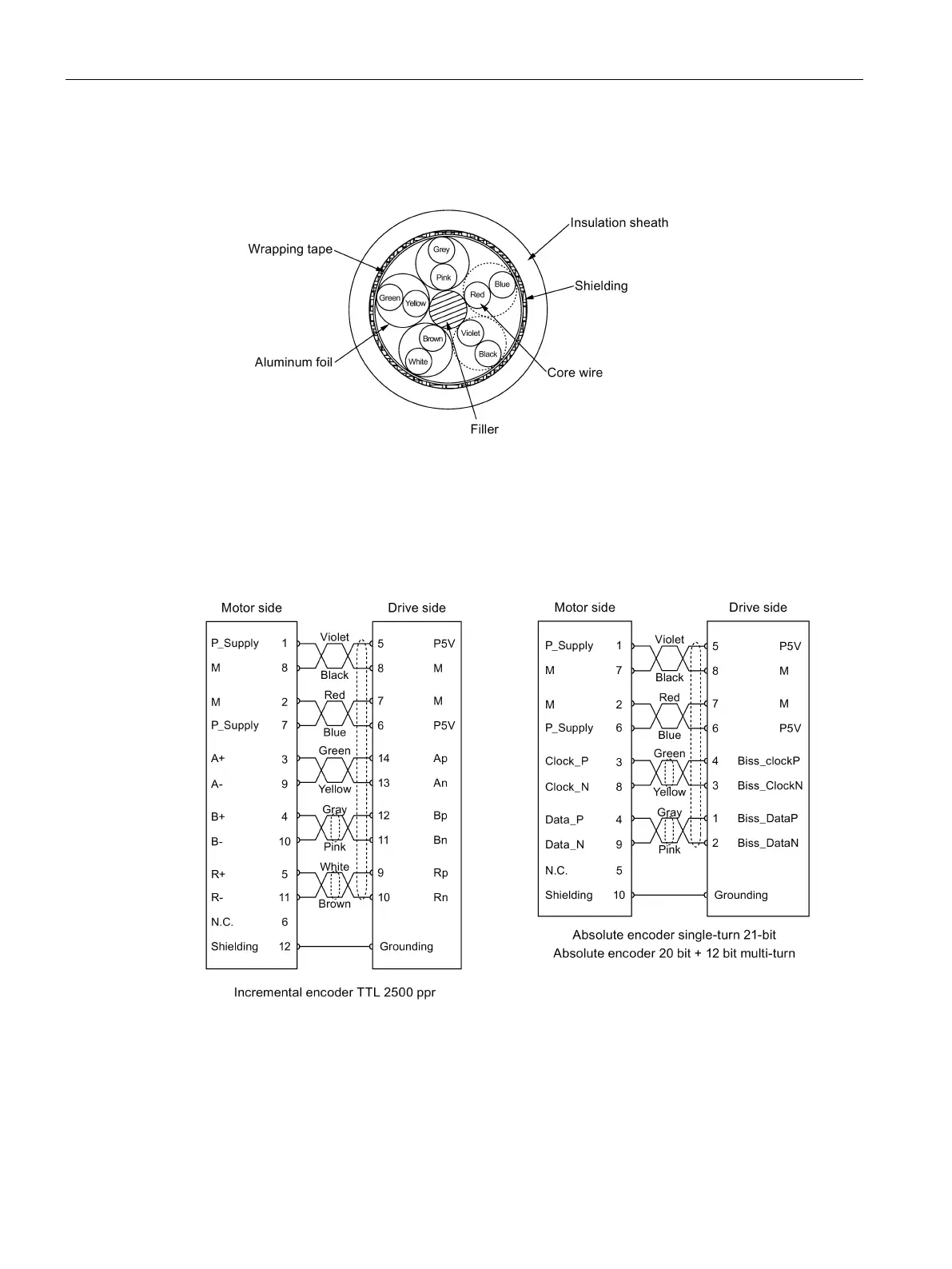

Internal structure of encoder cable
6FX3002-2CT..../6FX3002-2DB....
Wiring of encoder cable
Low inertia motor, shaft-height: 20 mm, 30 mm and 40 mm
6FX3002-2CT20-....
6FX3002-2DB20-....
