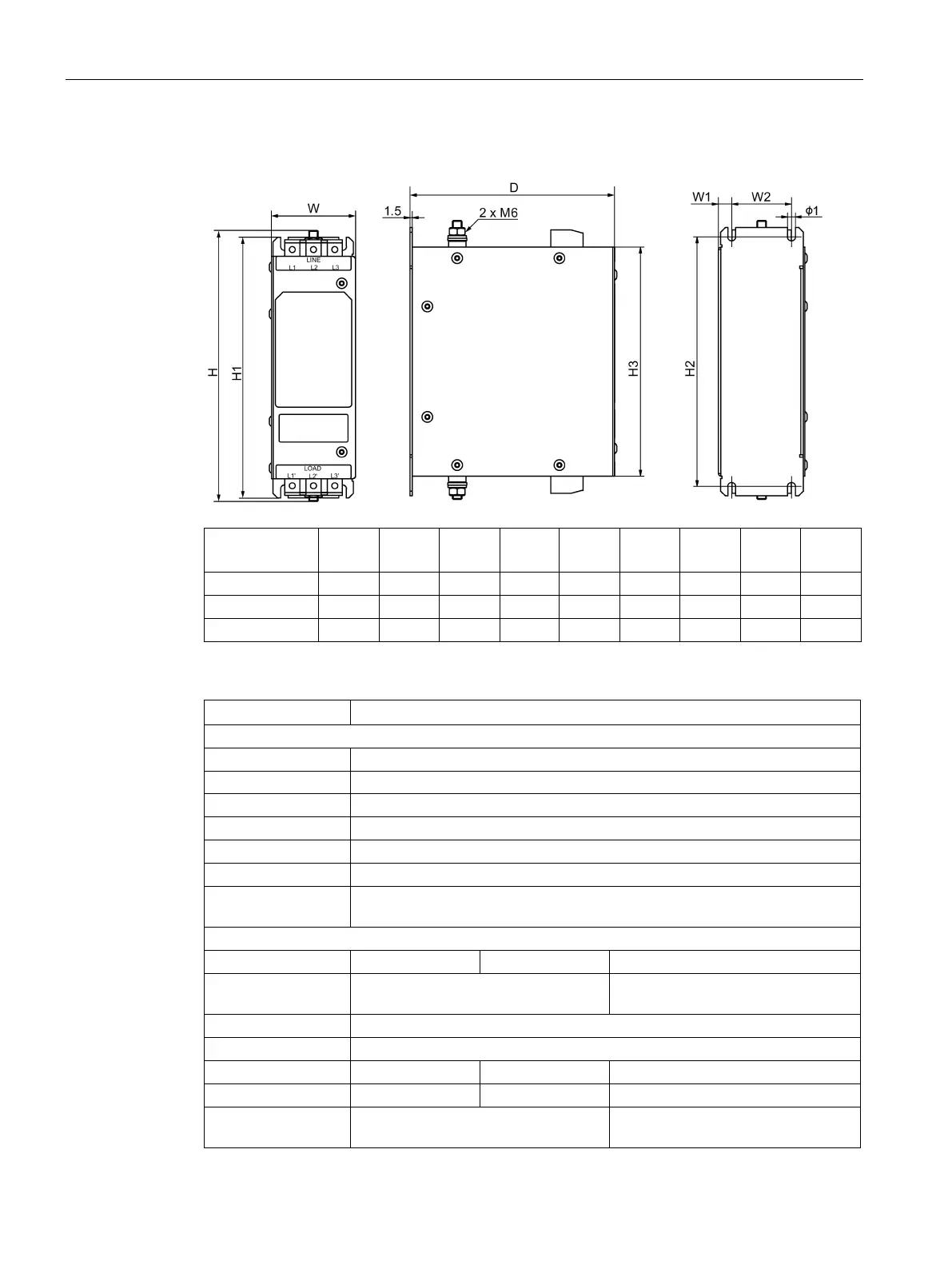

General information
2.5 Accessories
SINAMICS V90, SIMOTICS S-1FL6
54 Operating Instructions, 04/2019, A5E36037884-007
Filter used on the three phase power network
Rated current
(A)
W
W1
W2
H
H1
H2
H3
D
ø1
5
55
8.5
38
176.7
170
158
145
130
5
12
75
8.5
58
176.7
170
158
145
140
5
20
60
10
40
251.7
250
240
220
130
5.5
Basic technical data
Parameter
Description
Filter used on the single phase power network
Rated current 18 A
Rated voltage
Single phase 200 VAC to 240 VAC (-15% to +10%)
Line frequency
50/60 Hz (-10% to +10%)
Product standard
IEC 61800-5-1
Power loss
< 1.2 W
Weight
0.9 kg
Package size (H × W
× D)
230 mm × 95 mm ×90 mm
Filter used on the three phase power network
Rated current
5 A
12 A
20 A
Rated voltage Three phase 200 VAC to 480 VAC (-
15% to +15%)
Three phase 380 VAC to 480 VAC (-
15% to +15%)
Line frequency
50/60 Hz (-10% to +10%)
Product standard
IEC 61800-5-1
Power loss
< 2 W
< 3 W
< 7 W
Weight
0.68 kg
1.01 kg
1.33 kg
Package size (H × W
× D)
140 mm × 200 mm × 260 mm 140 mm × 200 mm × 330 mm
