Siemens SIMOTICS S-1FL6 User Manual

Mounting
3.2 Mounting the motor
SINAMICS V90, SIMOTICS S-1FL6
92 Operating Instructions, 04/2019, A5E36037884-007

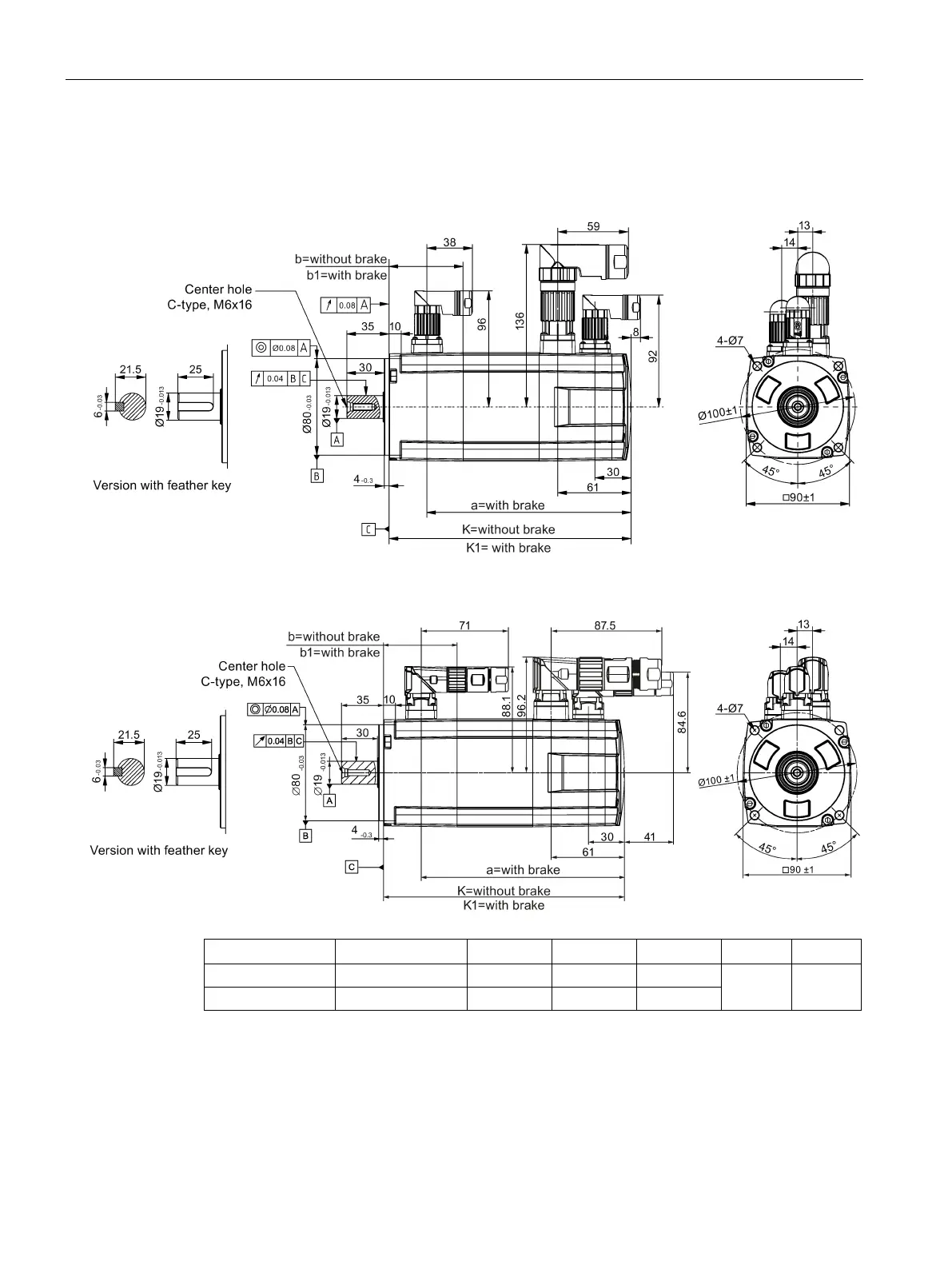

SIMOTICS S-1FL6 high inertia servo motors (unit: mm)
Shaft height 45 mm, with the incremental encoder and straight connectors
Shaft height 45 mm, with the incremental encoder and angular connectors
Rated power
Rated torque
K
K1
a
b
b1
0.4 kW
1.27 Nm
154.5
201
169.5
15 61.5
0.75 kW
2.39 Nm
201.5
248
216.5
