Mounting
3.2 Mounting the motor
SINAMICS V90, SIMOTICS S-1FL6
Operating Instructions, 04/2019, A5E36037884-007
93

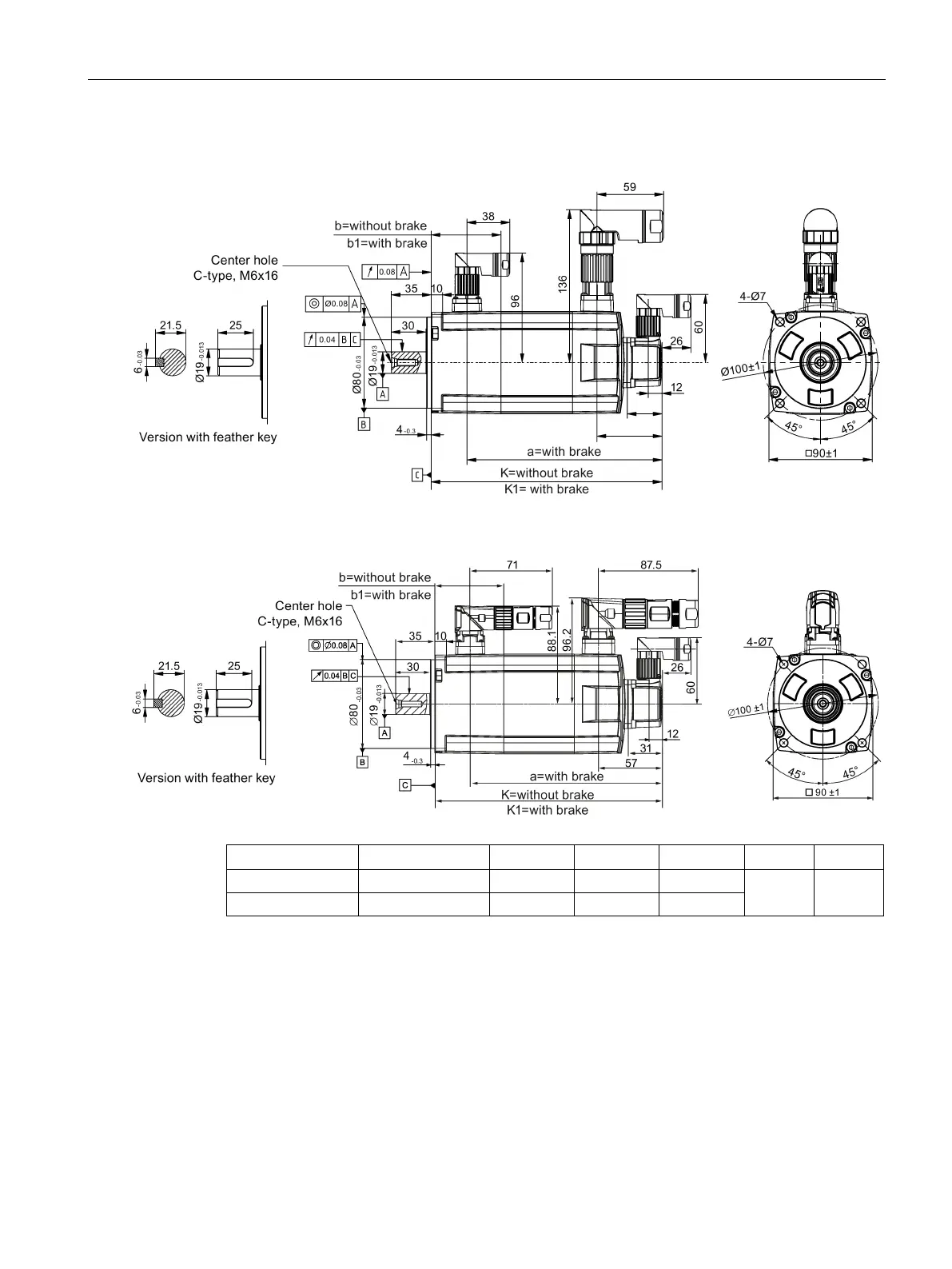

Shaft height 45 mm, with the absolute encoder and straight connectors
Shaft height 45 mm, with the absolute encoder and angular connectors
Rated power
Rated torque
K
K1
a
b
b1
0.4 kW
1.27 Nm
157
203.5
172
15 61.5
0.75 kW
2.39 Nm
204
250.5
219
