Siemens SIMOTICS S-1FL6 User Manual

Mounting
3.2 Mounting the motor
SINAMICS V90, SIMOTICS S-1FL6
94 Operating Instructions, 04/2019, A5E36037884-007

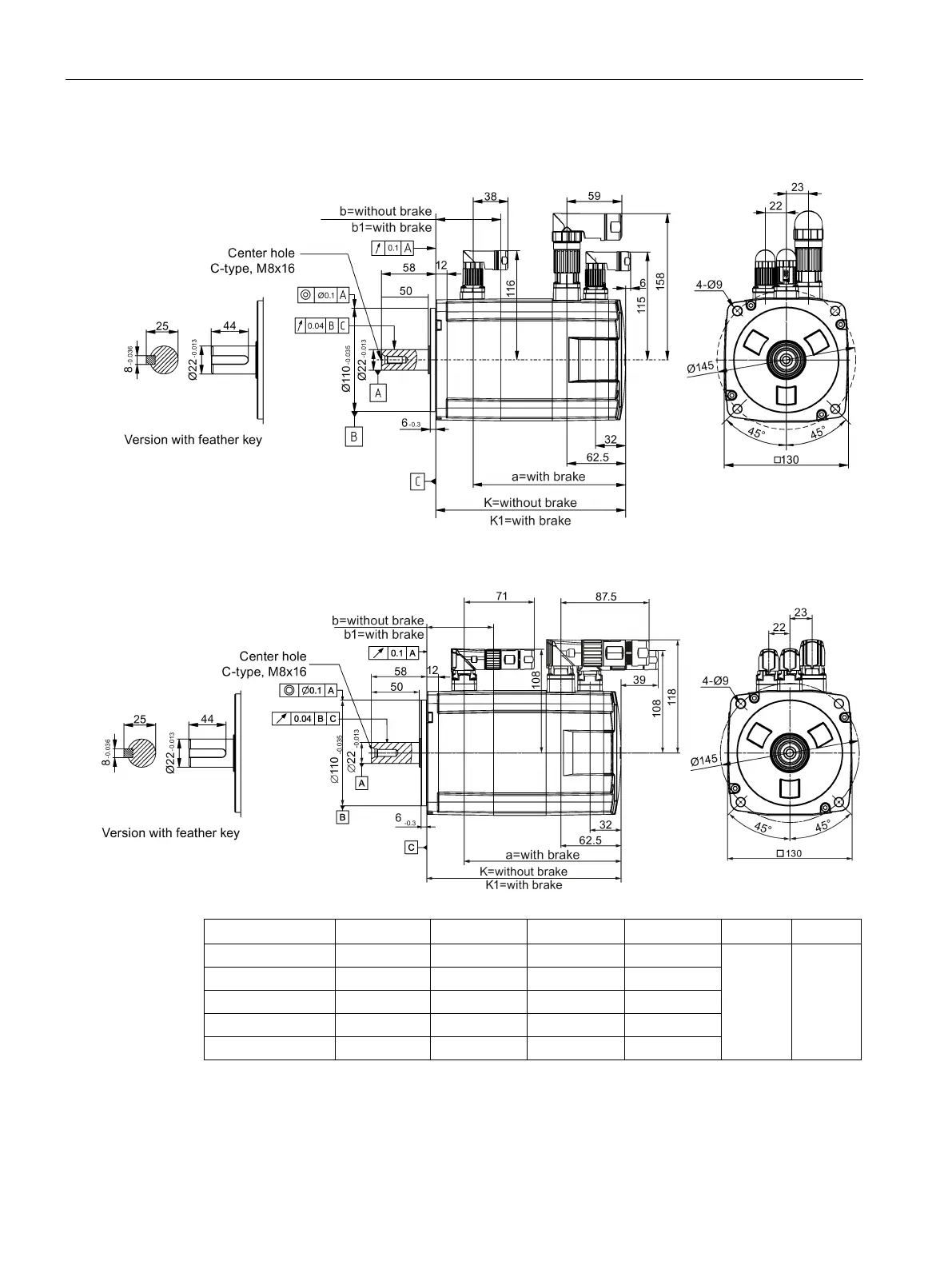

Shaft height 65 mm, with the incremental encoder and straight connectors
Shaft height 65 mm, with the incremental encoder and angular connectors
Rated power
Rated torque
K
K1
a
b
b1
0.75 kW
3.58 Nm
148
202.5
163
15 69.5
1.0 kW
4.78 Nm
181/164
1)
235.5/219
1)
196/179.5
1)
1.5 kW
7.16 Nm
181
235.5
196
1.75 kW
8.36 Nm
214
268.5
229
2.0 kW
9.55 Nm
247
301.5
262
1)
The former value indicates the dimension for high inertia motors with straight connectors; the latter
value indicates the dimension for high inertia motors with angular connectors.
