Mounting
3.2 Mounting the motor
SINAMICS V90, SIMOTICS S-1FL6
Operating Instructions, 04/2019, A5E36037884-007
95

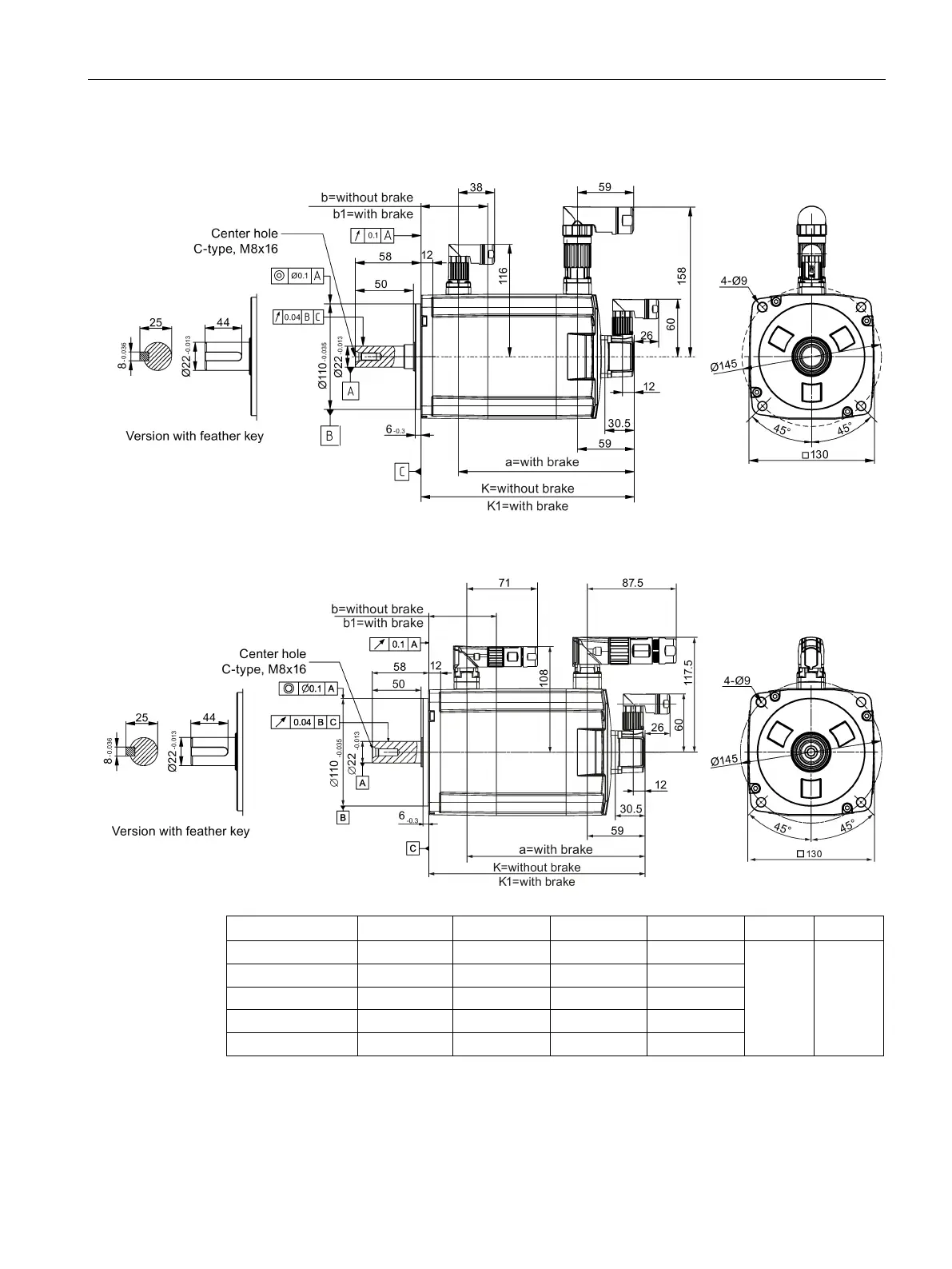

Shaft height 65 mm, with the absolute encoder and straight connectors
Shaft height 65 mm, with the absolute encoder and angular connectors
Rated power
Rated torque
K
K1
a
b
b1
0.75 kW
3.58 Nm
151
205.5
166
15 69.5
1.0 kW 4.78 Nm 184/167.5
1)
238.5/222
1)
199/182.5
1)
1.5 kW
7.16 Nm
184
238.5
199
1.75 kW 8.36 Nm 217 271.5 232
2.0 kW
9.55 Nm
250
304.5
265
1)
The former value indicates the dimension for high inertia motors with straight connectors; the latter
value indicates the dimension for high inertia motors with angular connectors.
