Siemens SIMOTICS S-1FL6 User Manual

Mounting
3.2 Mounting the motor
SINAMICS V90, SIMOTICS S-1FL6
96 Operating Instructions, 04/2019, A5E36037884-007

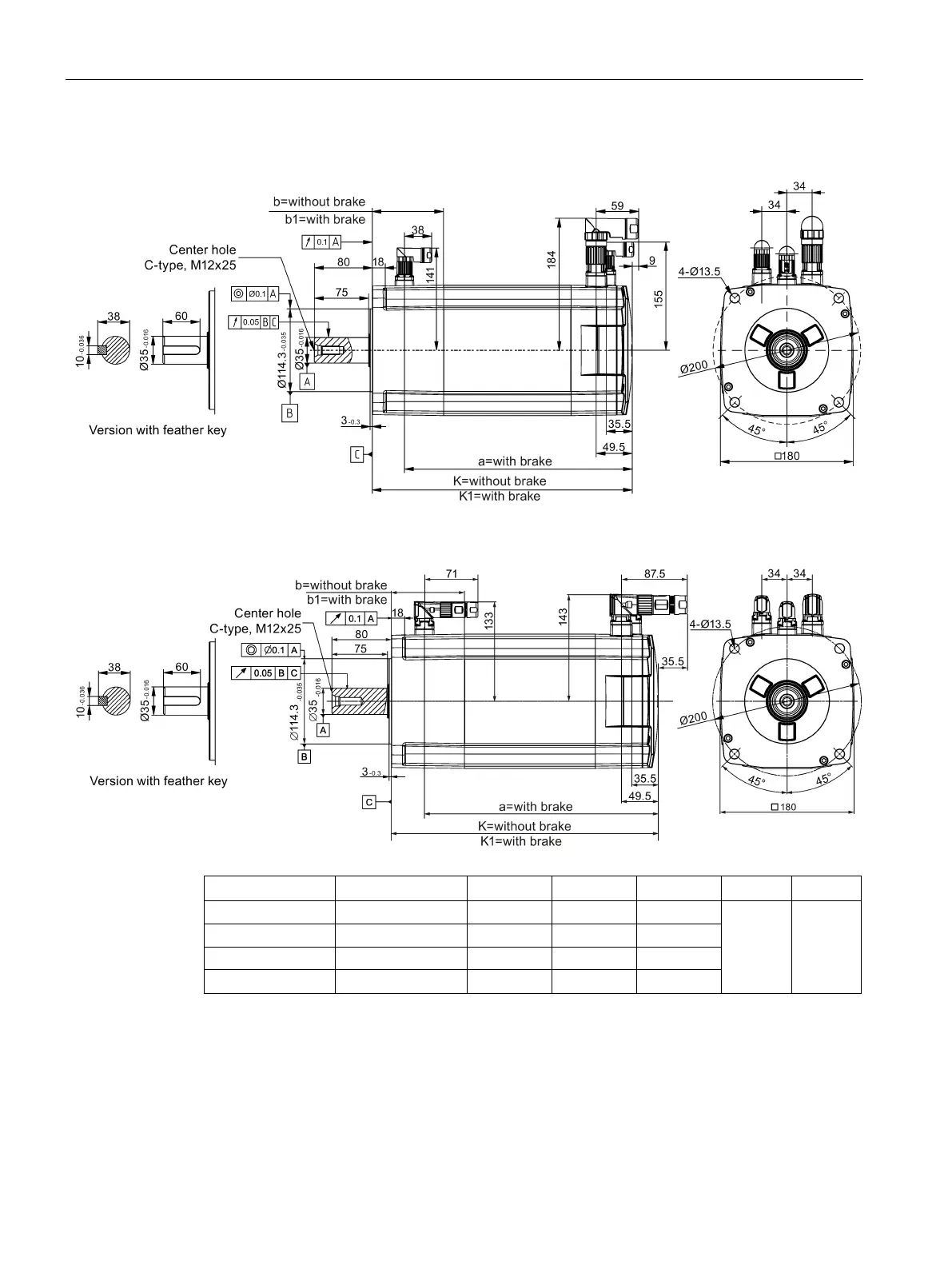

Shaft height 90 mm, with the incremental encoder and straight connectors
Shaft height 90 mm, with the incremental encoder and angular connectors
Rated power
Rated torque
K
K1
a
b
b1
2.5 kW
11.9 Nm
189.5
255
210.5
33 98.5
3.5 kW
16.7 Nm
211.5
281
236.5
5.0 kW
23.9 Nm
237.5
307
262.5
7.0 kW 33.4 Nm 289.5 359 314.5
