Siemens SIMOTICS S-1FL6 User Manual

Mounting
3.2 Mounting the motor
SINAMICS V90, SIMOTICS S-1FL6
Operating Instructions, 04/2019, A5E36037884-007
97

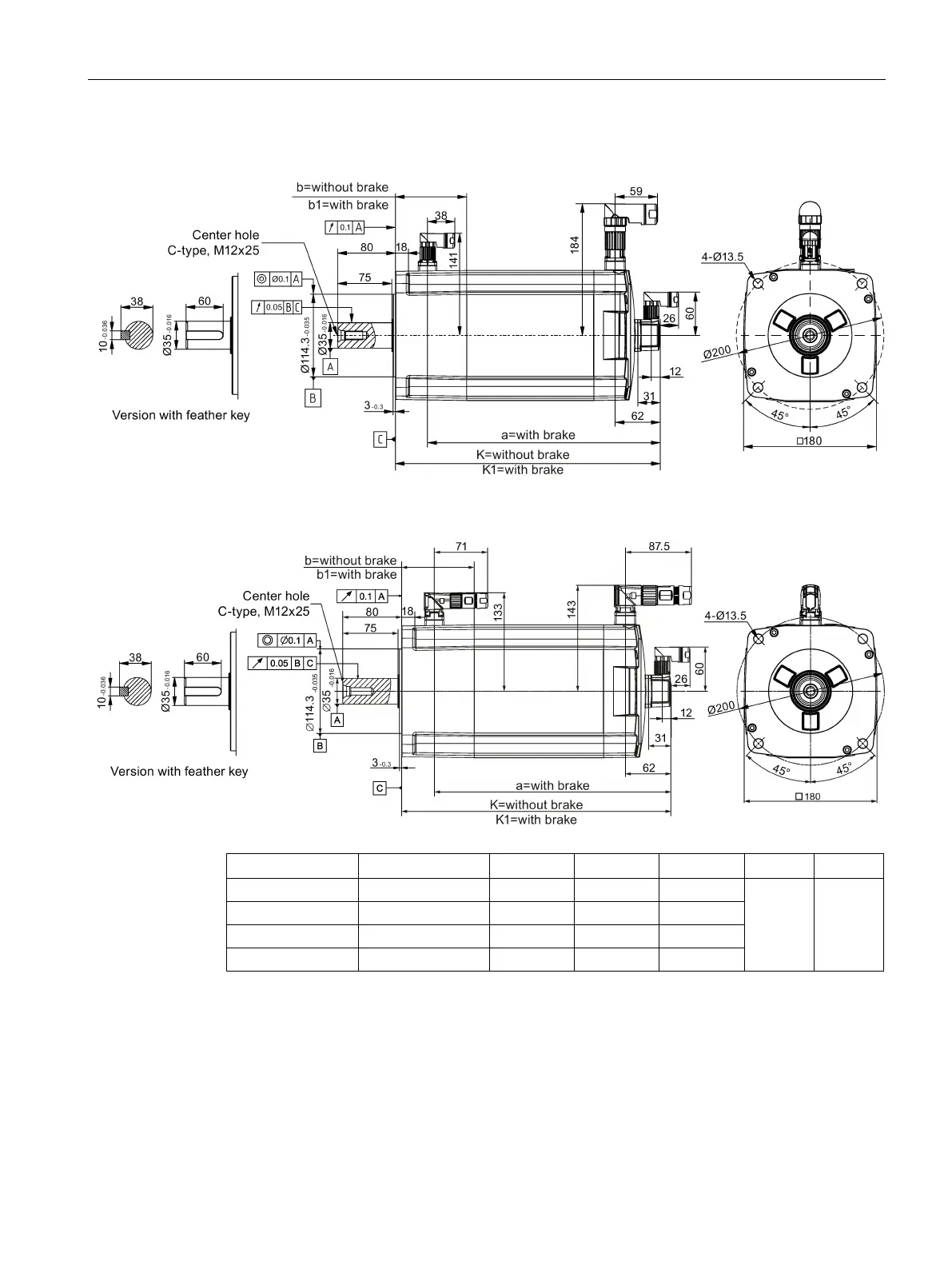

Shaft height 90 mm, with the absolute encoder and straight connectors
Shaft height 90 mm, with the absolute encoder and angular connectors
Rated power
Rated torque
K
K1
a
b
b1
2.5 kW
11.9 Nm
197
263
218
33 98.5
3.5 kW
16.7 Nm
223
289
244
5.0 kW
23.9 Nm
249
315
270
7.0 kW
33.4 Nm
301
367
322
