Additional references
Further information on the topic of "Going online" can be found:
●
In the online help via the "Contents" tab at
– "Diagnostics" > "Overview of service and diagnostics options" > "Part III" > "Go online"
– "Insert device and connect to target system" > "Go online/offline"
● On the Internet at (
https://support.industry.siemens.com/cs/ww/en/view/22016709)
●
In SIMOTION Utilities & Applications, FAQ "Online connections to SIMOTION devices".
SIMOTION Utilities & Applications is part of the scope of delivery of SIMOTION SCOUT.
6.2.4 Representation of SIMOTION D4x5-2 in HW Config
Once you have created a project and inserted a SIMOTION D4x5‑2 as module, HW Config
opens automatically (if parameterized).
In HW Config the SIMOTION D4x5‑2 units are shown with the SINAMICS Integrated and the
interfaces.

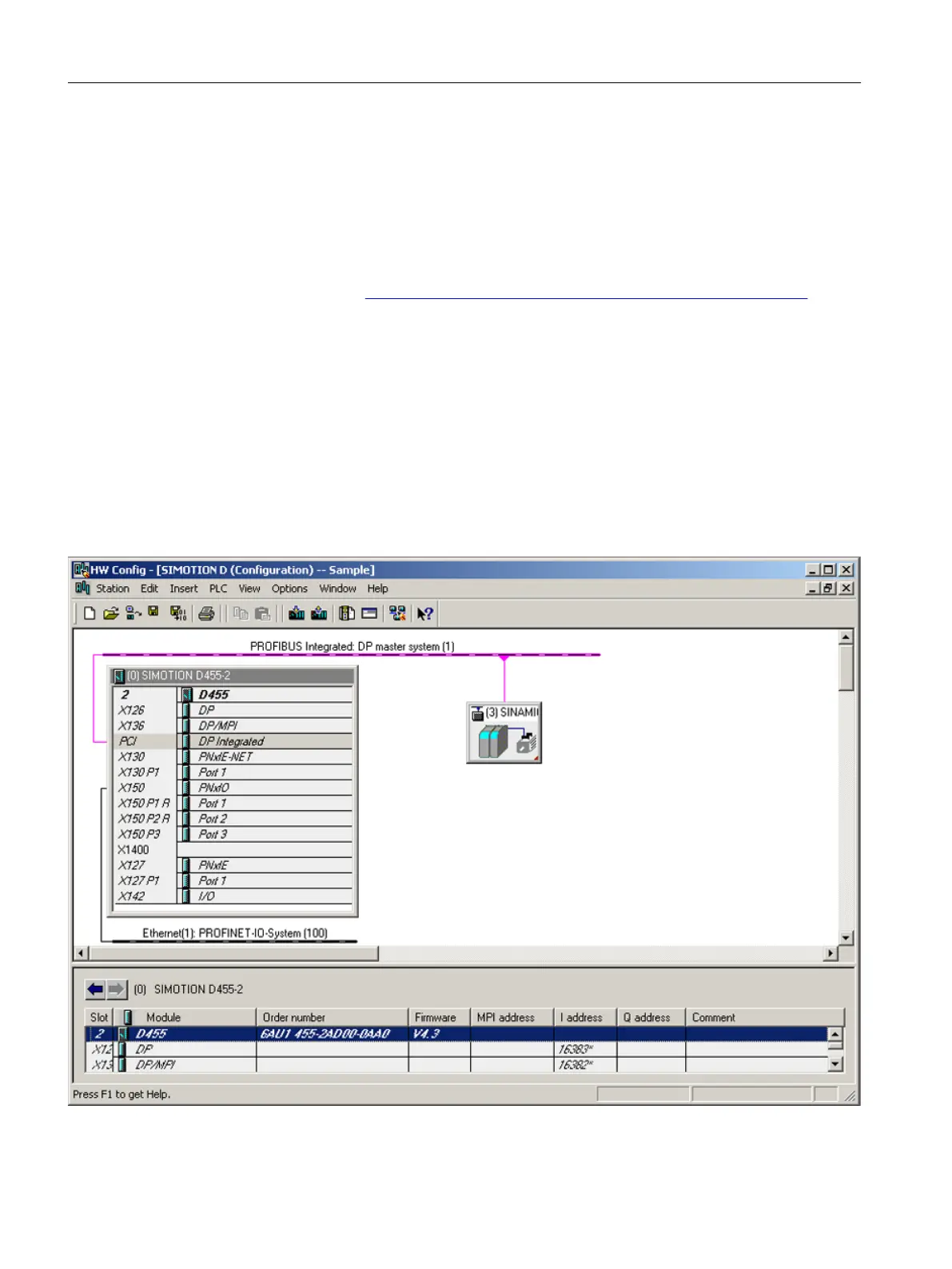

Figure 6-4 Representation of a D4x5‑2 in HW Config
Parameter assignment / addressing
6.2 Creating a project and configuring the communication
SIMOTION D4x5-2
130 Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B
