CX32-2 topology
The
CX32-2 topology displays the DRIVE-CLiQ port required for connection to the SINAMICS
Integrated. The drive objects connected to the CX32‑2 are also displayed.

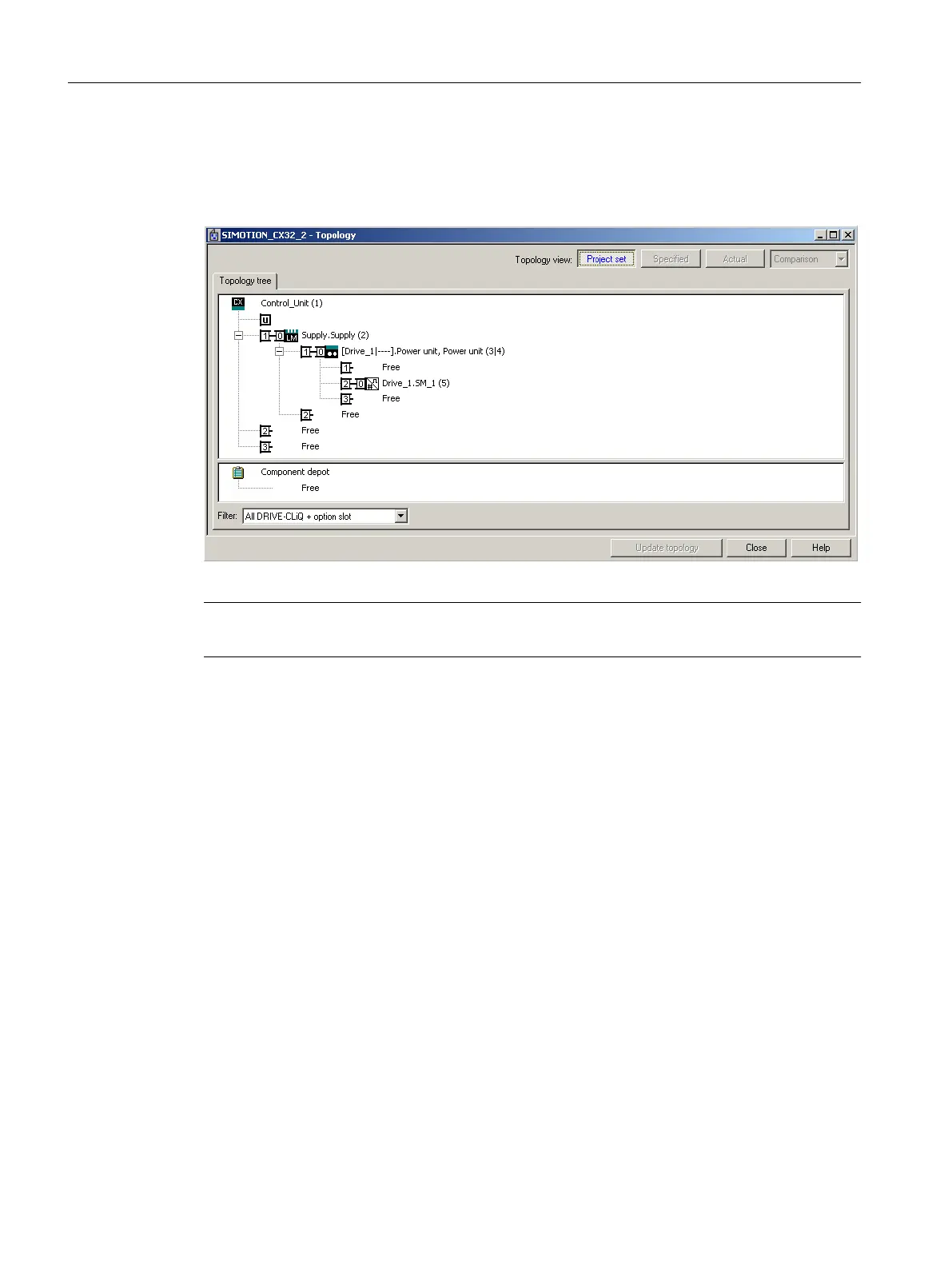

Figure 7-30 CX32-2 topology
Note
Topology errors can result in a download or system power-up not being possible.
7.4.5 CX32-2 offline configuration
Options
The following options are available for commissioning a project created offline:
● Loading a project created offline to the target system
● Loading a project created offline to the CompactFlash Card
