CX32‑2 with spacers on a mounting surface
To
achieve the correct mounting depth for a booksize line-up with internal air cooling, a spacer
is pre-assembled on the CX32‑2. The spacer must then be fixed to the mounting surface.
6HFXUHZLWK
VFUHZV01P

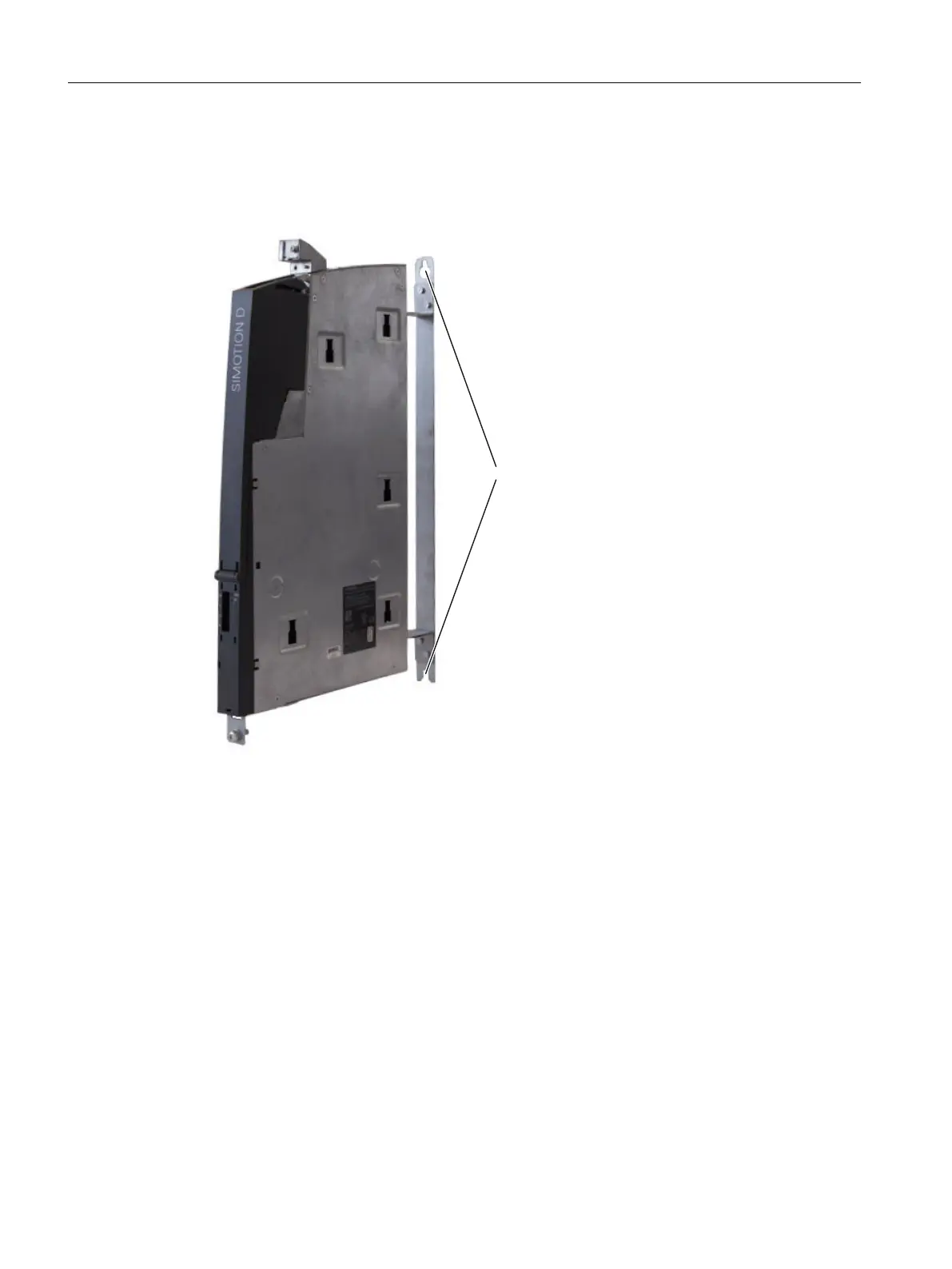

Figure 3-11 Mounting a CX32‑2 with spacers
3.3.4 Removing the cover of the CX32-2
Actions to remove the cover of the CX32-2
Several steps are required to remove the cover:
● Release
● Swing open through approx. 45°
● Remove
Note that the cover can only be removed when it has been swung open through approx. 45°.
See also
Opening the front cover (Page 61)
Installing
3.3 Installing supplementary system components
