Mixed operation of IRT and RT
For mixed operation of IRT and RT, note that the IRT-capable devices must form a so-called
IRT
domain, i.e. there must not be any non-IRT devices on the data transmission link between
the IRT devices.
,57
5
7
,57

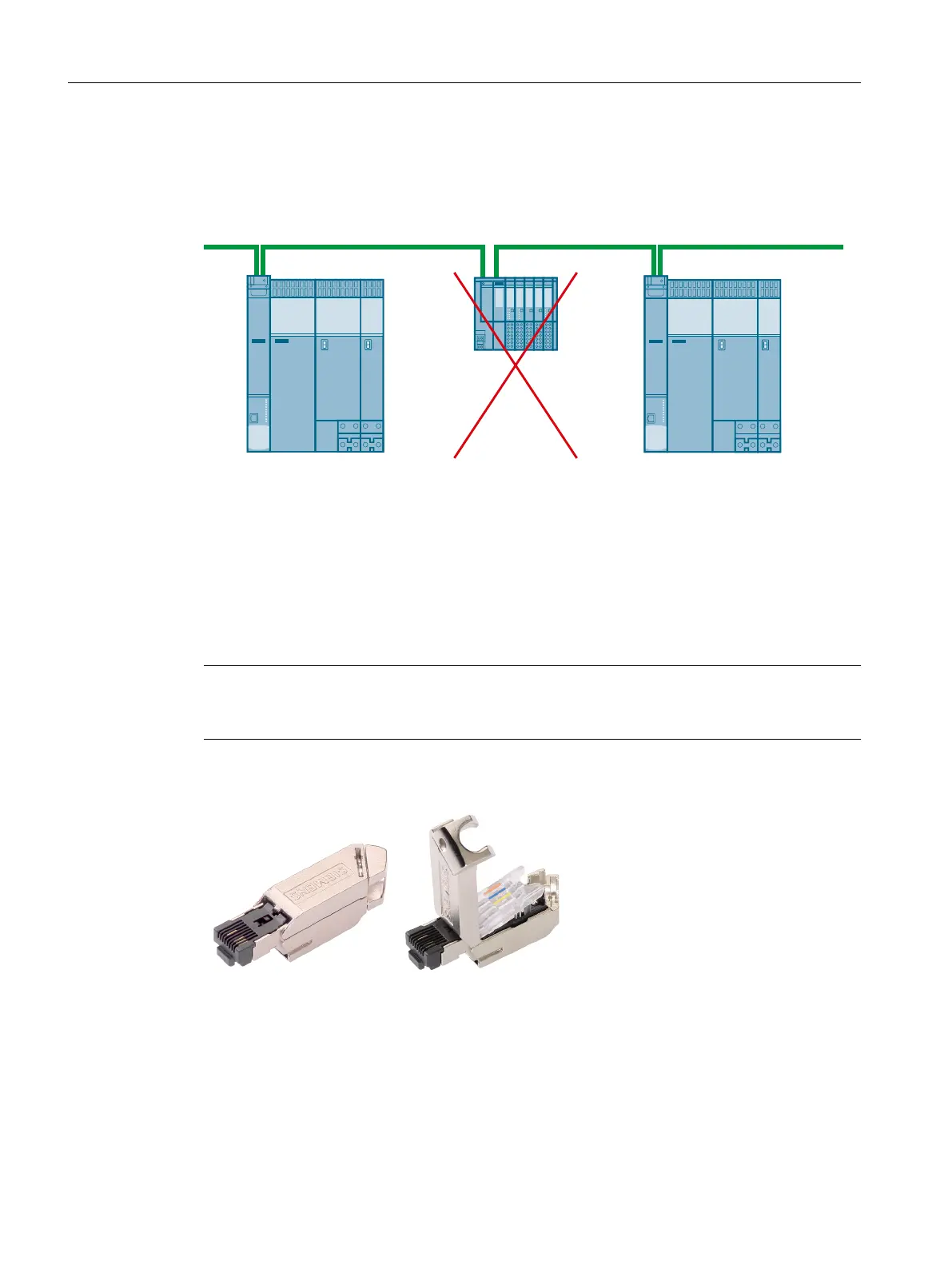

Figure 4-16 Mixed operation of IRT and RT
4.8.2 PROFINET cables and connectors
Cable and connector types
Note
For
connecting PROFINET IO to D4x5‑2, a connector with a 145° cable outlet is recommended
(IE FC RJ45 plug 145).
Figure 4-17 RJ45 PN connector with a 145° cable outlet
Connecting
4.8 Connecting PROFINET IO components
SIMOTION D4x5-2
86 Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B
