3.3 Installing supplementary system components
3.3.1
Installing the TB30
Requirement
Note
The
TB30 terminal board may only be inserted and removed when the D4x5‑2 control unit and
the terminal board are de-energized.
Procedure
The TB30 is installed in the option slot of the control unit.
,QV
HUWDQGIDVWHQ7%RSWLRQ
ERDUG
/RRVHQDQGUHPRYHFRYHURIWKH
RSWLRQVORW
)L[LQJVFUHZV
01P
7RU[7



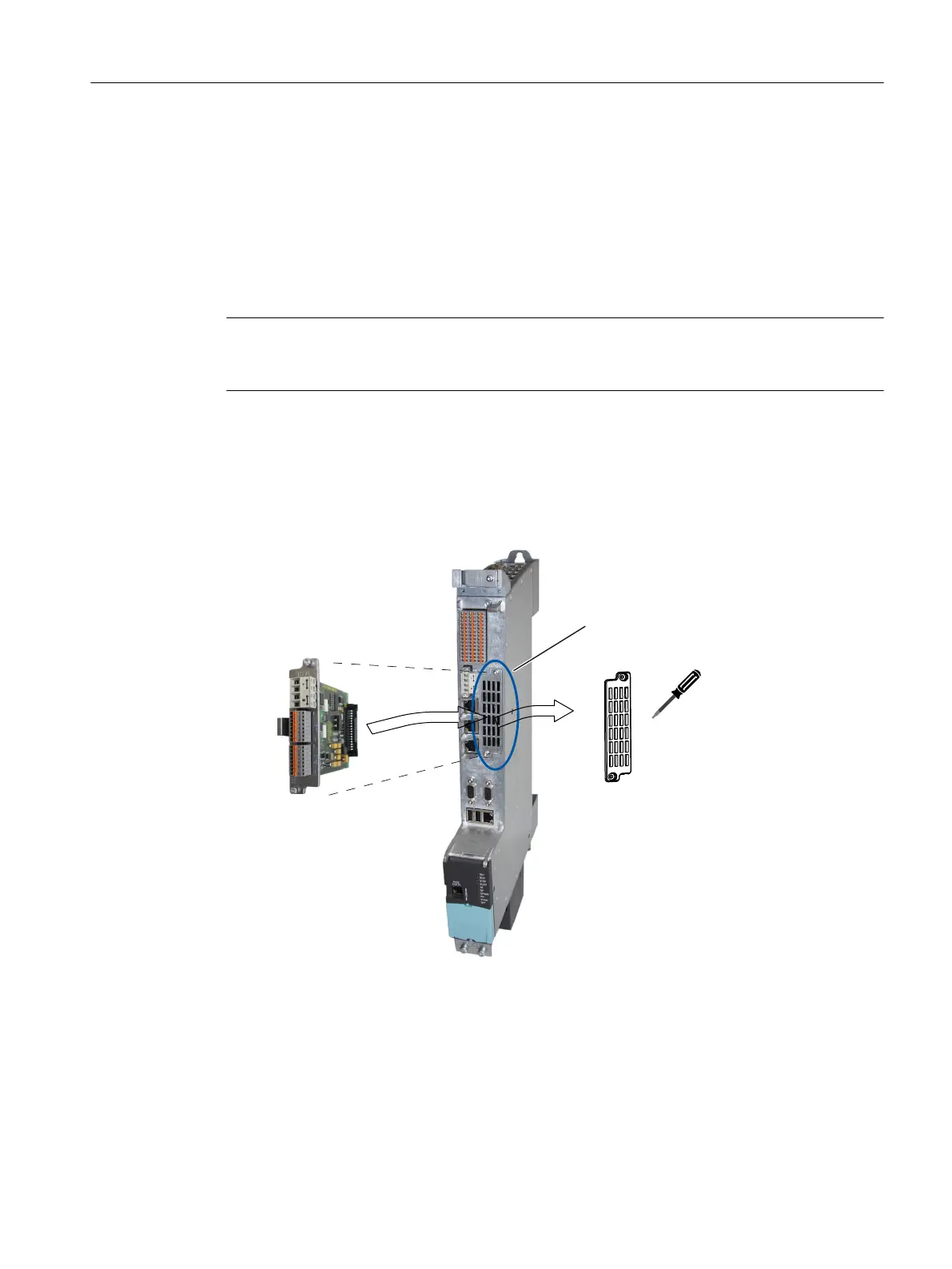

Figure 3-6 Installation of the TB30 terminal board using the D445-2 DP/PN as an example
3.3.2 Installing the CBE30-2
A second PROFINET interface can be implemented for the SIMOTION D4x5-2 DP/PN with
the CBE30-2 Ethernet communication board.
Installing
3.3 Installing supplementary system components
SIMOTION D4x5-2
Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B 43
