4.9 Connecting Ethernet
4.9.1
Wiring Ethernet
Procedure
To the 8-pin RJ45 sockets
● X127 P1
● X130 P1
● X120 P1 (only for D4x5-2 DP)
you can connect Industrial Ethernet.
The interfaces support a transmission rate of 10/100/1000 Mbit/s. Suitable Ethernet cables
and connectors must be used for the Ethernet connection.
,QGXVWULDO(WKHUQHW
31,(23;3RQO\IRU'['3
31,(1(7;3
31,(;3

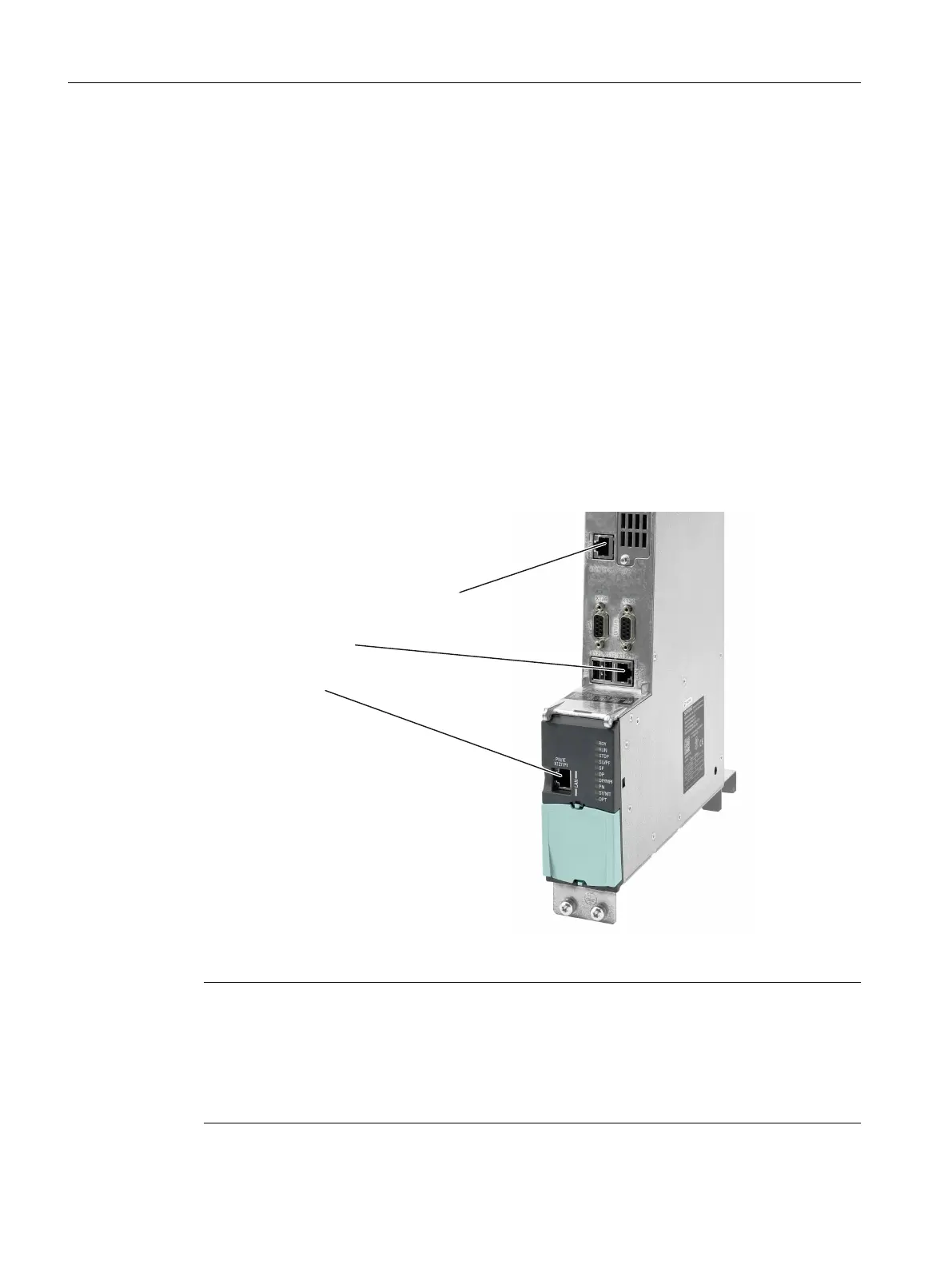

Figure 4-18 Connecting Industrial Ethernet
Note
As
of V4.3, the three Ethernet interfaces support the PROFINET basic services - they therefore
have the designation PN/IE-NET, PN/IE-OP or PN/IE.
These PROFINET basic services (e.g. DCP, LLDP, SNMP) provide uniform functions for the
address assignment and diagnostics, but do not provide PROFINET IO communication for the
connection of drives, I/O modules, etc.
Connecting
4.9 Connecting Ethernet
SIMOTION D4x5-2
88 Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B
