9. In
the "Control Structure" dialog, you can select the function modules and the control type.
Here, you can select the
V
/
f
control under drive objects type "vector".

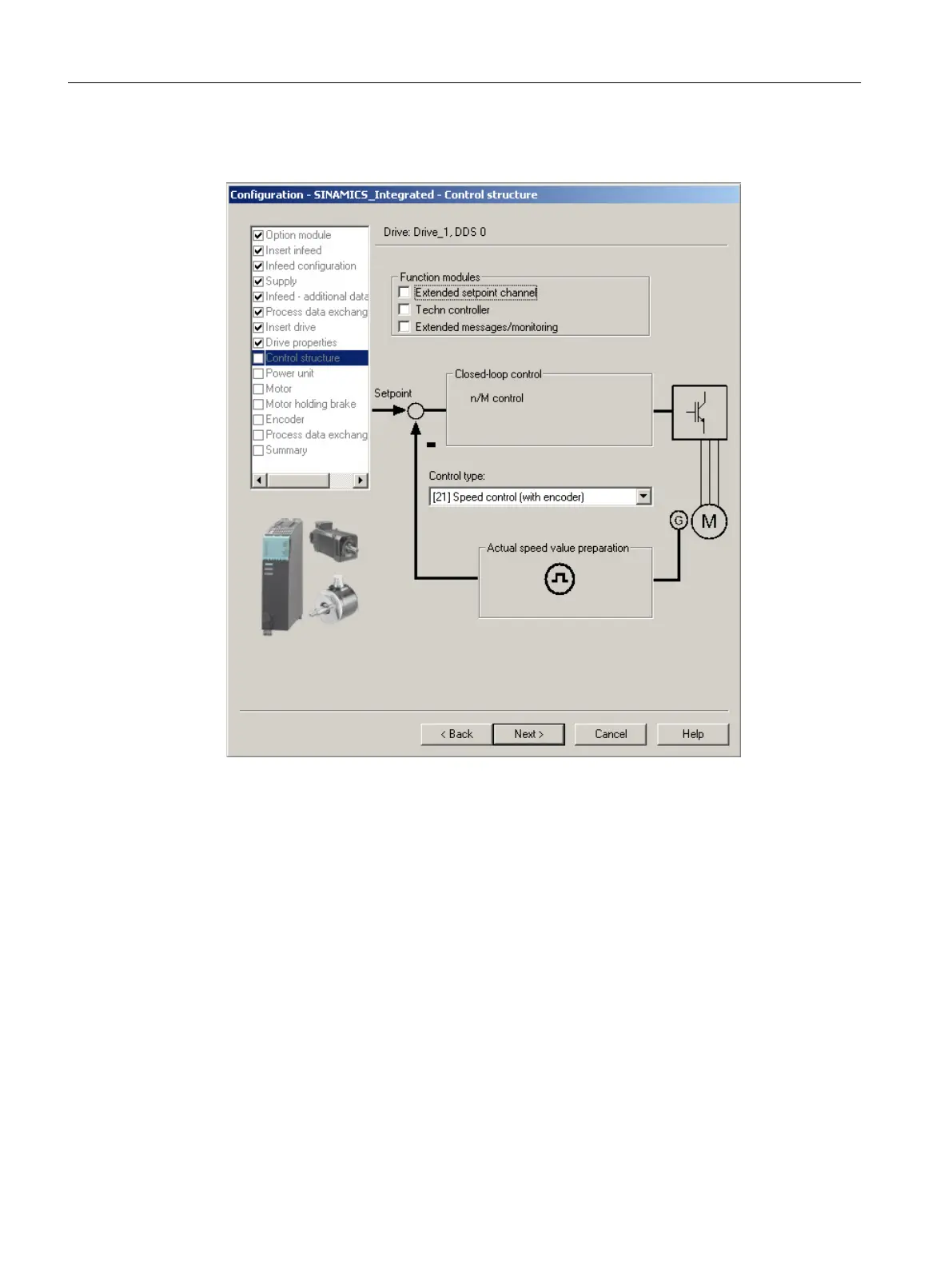

Figure 7-9 Control structure
Commissioning (software)
7.2 Performing the configuration for the D4x5-2 offline
SIMOTION D4x5-2
186 Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B
