11.If you have selected an infeed without a DRIVE‑CLiQ connection in step 2, a message
prompting you to wire the operation signal will appear. The next dialog box allows you to
select the source of the infeed's operation signal.

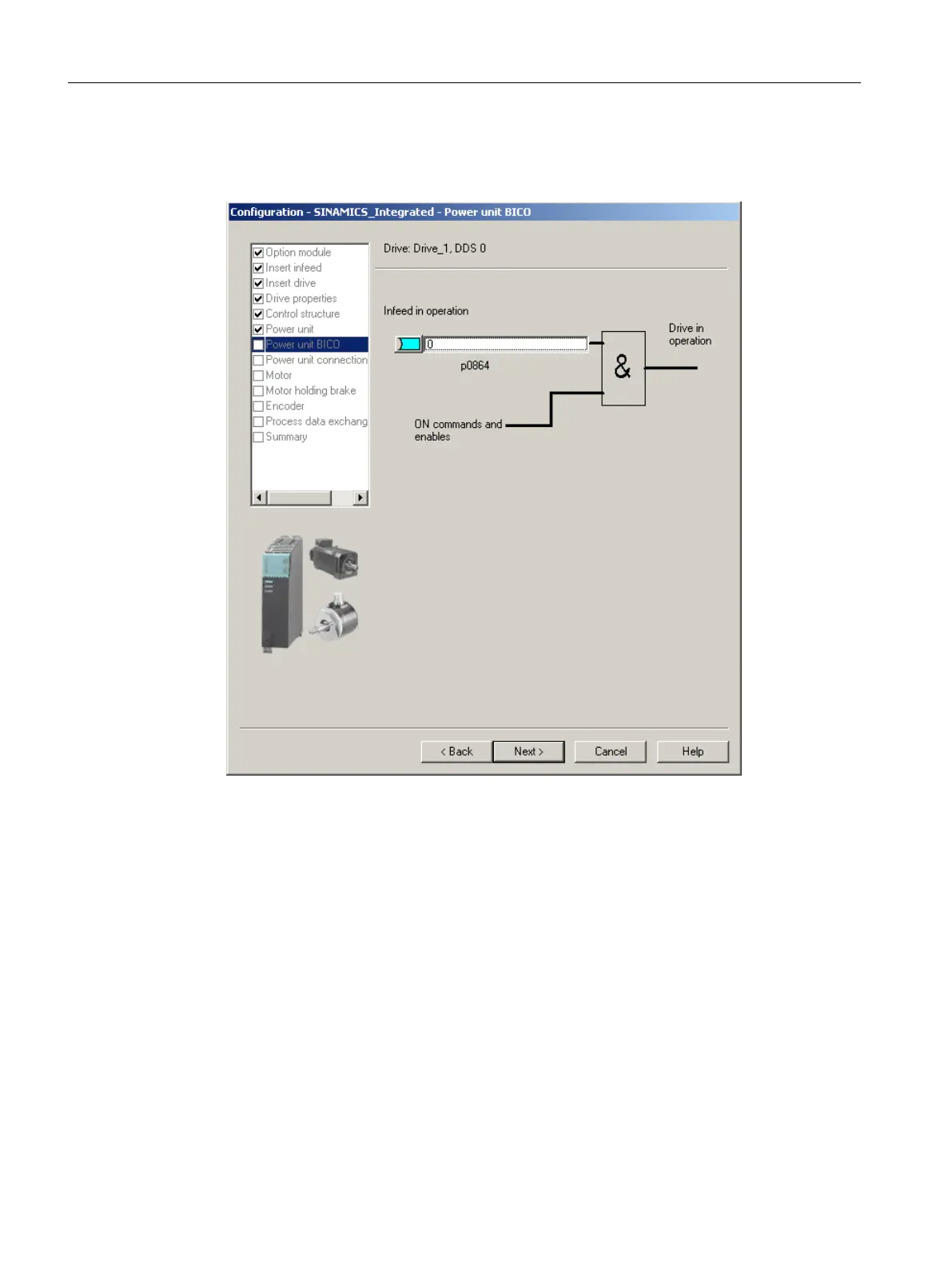

Figure 7-11 Selecting the infeed operation signal
Commissioning (software)
7.2 Performing the configuration for the D4x5-2 offline
SIMOTION D4x5-2
188 Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B
