Interconnecting the infeed operation signal
The "Closed-loop control operation" signal of the Line Module connected to the SIMOTION
D4x5‑2
is available in parameter r8510.0 of the CX32‑2. Using the expert list or the drive wizard,
interconnect parameter p0864 (drives on CX32‑2) to parameter r8510.0 of the CX32‑2
controller extension.

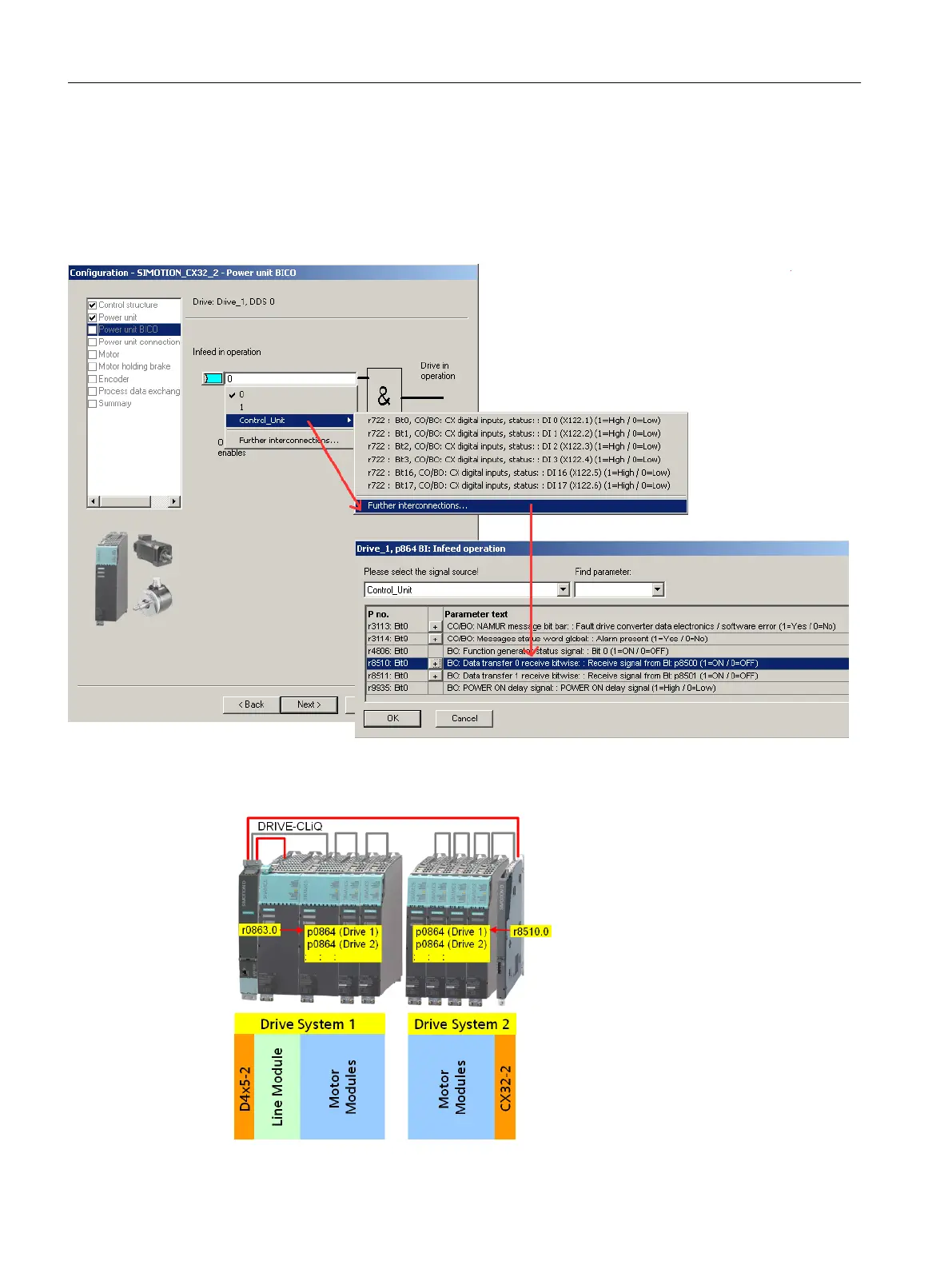

Figure 7-31 Interconnecting the infeed operation signal
Commissioning (software)
7.4 Configuring a CX32-2
