Keyword Explanation
Ethernet interfaces The configurations on the Ethernet interfaces including any existing PG/PC assignment are
retained.
Mapping of D4x5 on D4x5-2:
X120 IE1/OP → X127 P1 PN/IE (interface on the front of the module)
X130 IE2/NET → X130 P1 PN/IE‑NET (interface under the front flap)
The X120 P1 PN/IE‑OP interface is only available on the D4x5‑2 DP. Mapping is never per‐
formed on this interface.

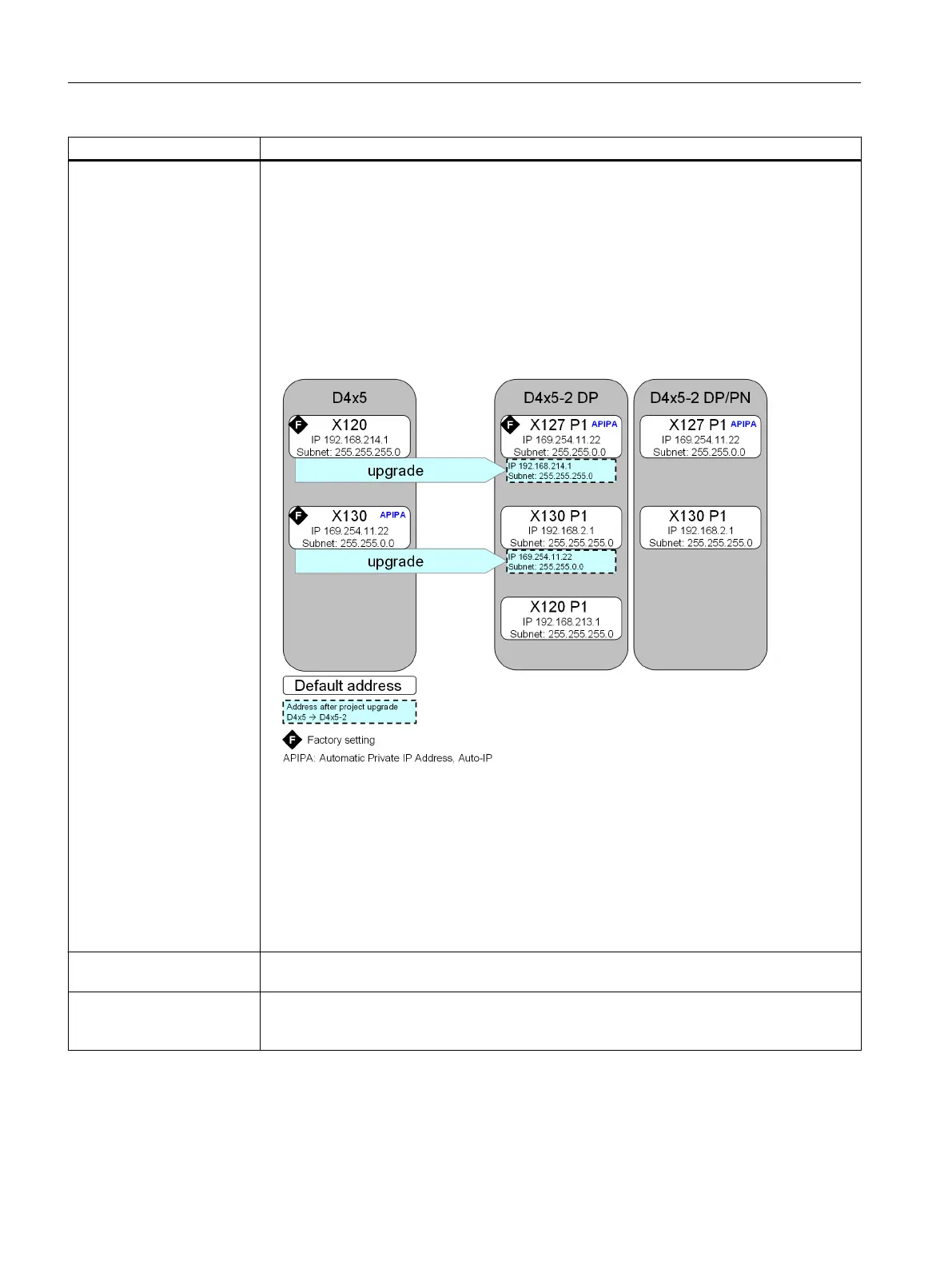

The following figure provides an overview of the default addresses as well as the behavior
when upgrading a D4x5 to D4x5‑2 (assumption: The default addresses have been used for
the D4x5).
With SIMOTION D4x5, the Ethernet interfaces of the D4x5 have default addresses in the
delivery
condition. These addresses are also offered as default addresses in the configuration
of SIMOTION SCOUT.
With SIMOTION D4x5-2, only interface X127 P1 has a default address in the delivery condi‐
tion. Interface X127 P1 is preferable for the PG/PC connection because it is easier to access.
The default address is an Automatic Private IP Address (APIPA, Automatic Private IP Ad‐
dressing). In this way, a PG/PC can automatically configure the network interface.
Interfaces X120 P1 and X130 P1 do not have an address in the delivery condition. When
configuring the interfaces, the addresses shown in the figure are offered as default addresses.
Telegram configurations Telegram configurations on the PROFIBUS and PROFINET interfaces are retained. The same
applies for the addresses of the slots/subslots.
SINAMICS Integrated / Con‐
troller Extension
The SINAMICS Integrated and Controller Extension are changed to the new type and its
corresponding version. The drive configuration and the assignments of the DRIVE‑CLiQ in‐
terfaces are retained.
Commissioning (software)
7.22 Migration of SIMOTION D4x5 to SIMOTION D4x5-2
SIMOTION D4x5-2
332 Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B
