Mounting the CX32‑2 on another CX32‑2
A description with photos of opening the cover can be found in Section
Removing the cover
of the CX32-2 (Page 50).

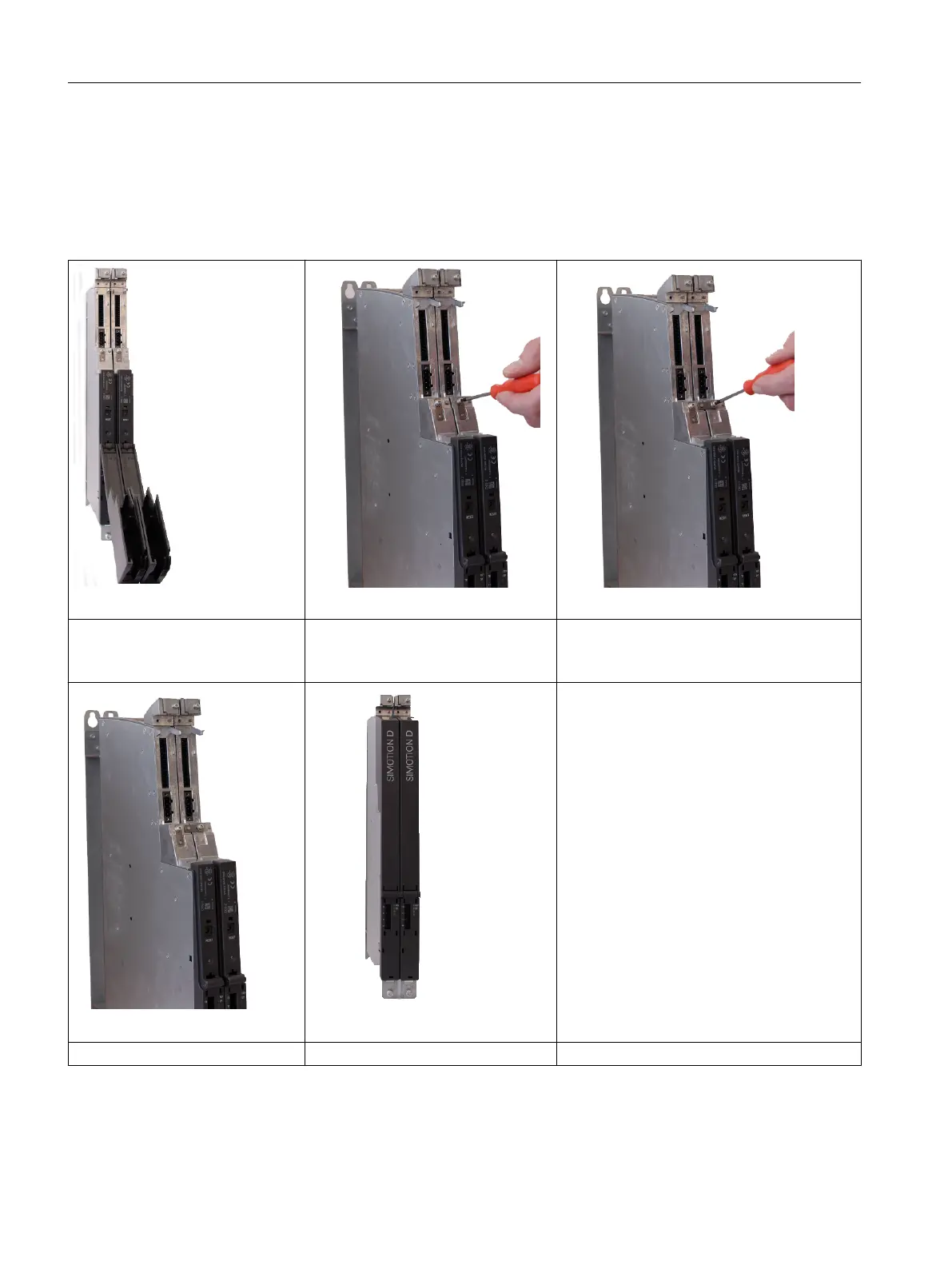

Table 3-2 Mounting a CX32‑2 on another CX32‑2
Opening the covers.
Unscrewing the screw
(M3, Torx T10)
The bracket must be moved so that the pin is
in the opening of the bracket. Tighten the
screw (tightening torque 0.8 Nm).
Mounted bracket. Closing the cover.
Installing
3.3 Installing supplementary system components
SIMOTION D4x5-2
46 Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B
