Engineering system / HMI to PROFIBUS

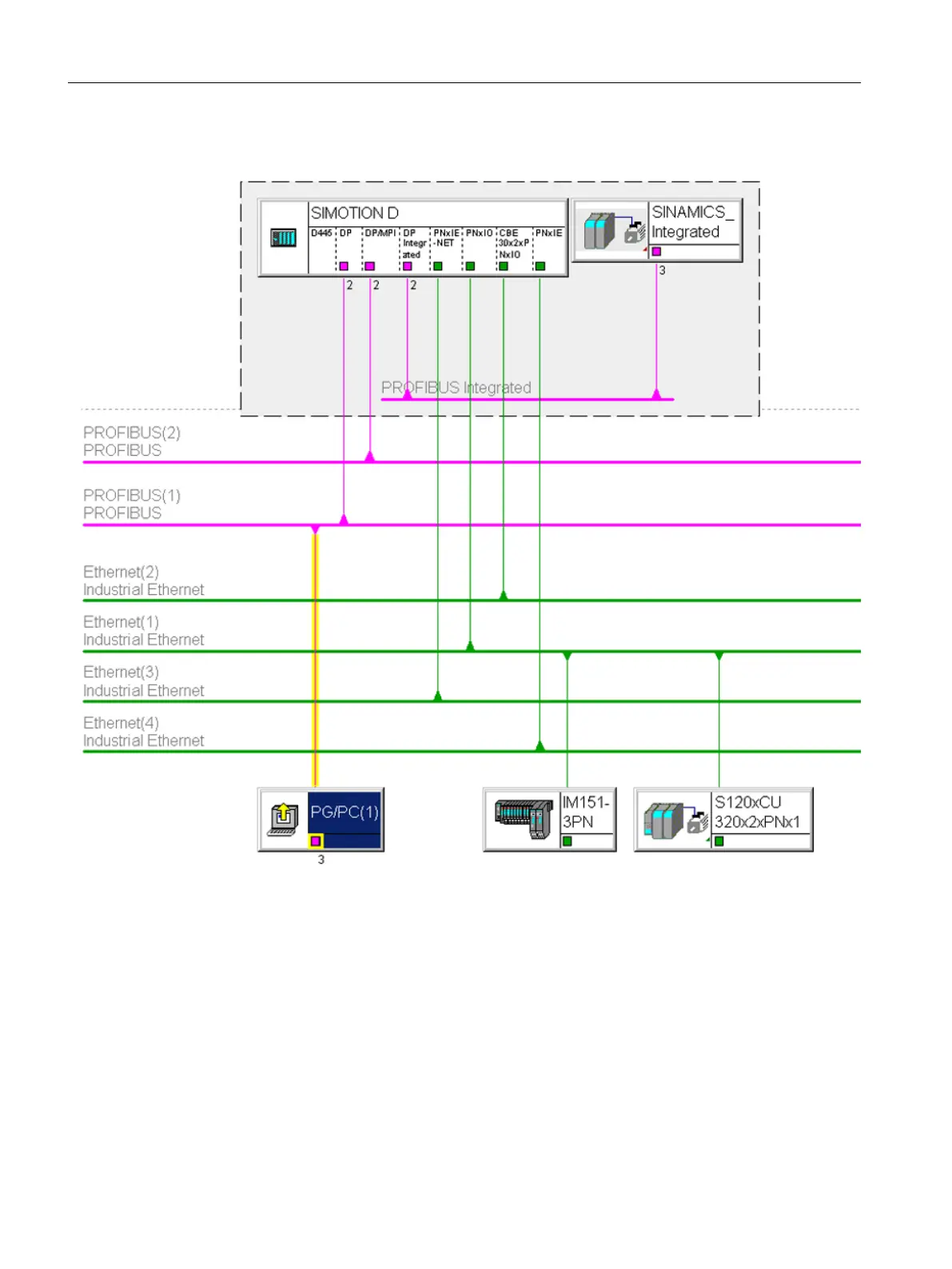

Figure 4-20 Example of PG/PC to PROFIBUS interface (DP, X126)
● S7 routing to the other (master) PROFIBUS interfaces (only if configured)
●
S7 routing to the PROFIBUS Integrated
● S7 routing to the onboard PROFINET IO interface (X150, P1-P3)
● S7 routing to the second PROFINET IO interface with CBE30-2 (X1400, P1-P4)
● S7 routing to the Ethernet interfaces PN/IE (X127 P1) and PN/IE-NET (X130 P1) (for
D4x5-2 DP also to PN/IE-OP (X120 P1))
Connecting
4.10 Routing
SIMOTION D4x5-2
92 Commissioning and Hardware Installation Manual, 03/2018, A5E33441636B
