Commissioning
4.3 Creating a STEP 7 project
Connecting SIMOVERT MASTERDRIVES MC to the Technology-CPU
Product Information, 03/2008, A5E00272072-05
23
● Overwrite the calculated value of the basis time, calculated from the pulse frequency of
5.3 kHz, from 3.019 ms with 3.000 ms and click on Align. The following settings are made
when the button is pressed:·
– The equidistant bus cycle is activated
– The DP cycle in the master system is aligned with the drive properties and set to
3.000 ms
– All drive components of the same family receive the same parameterization

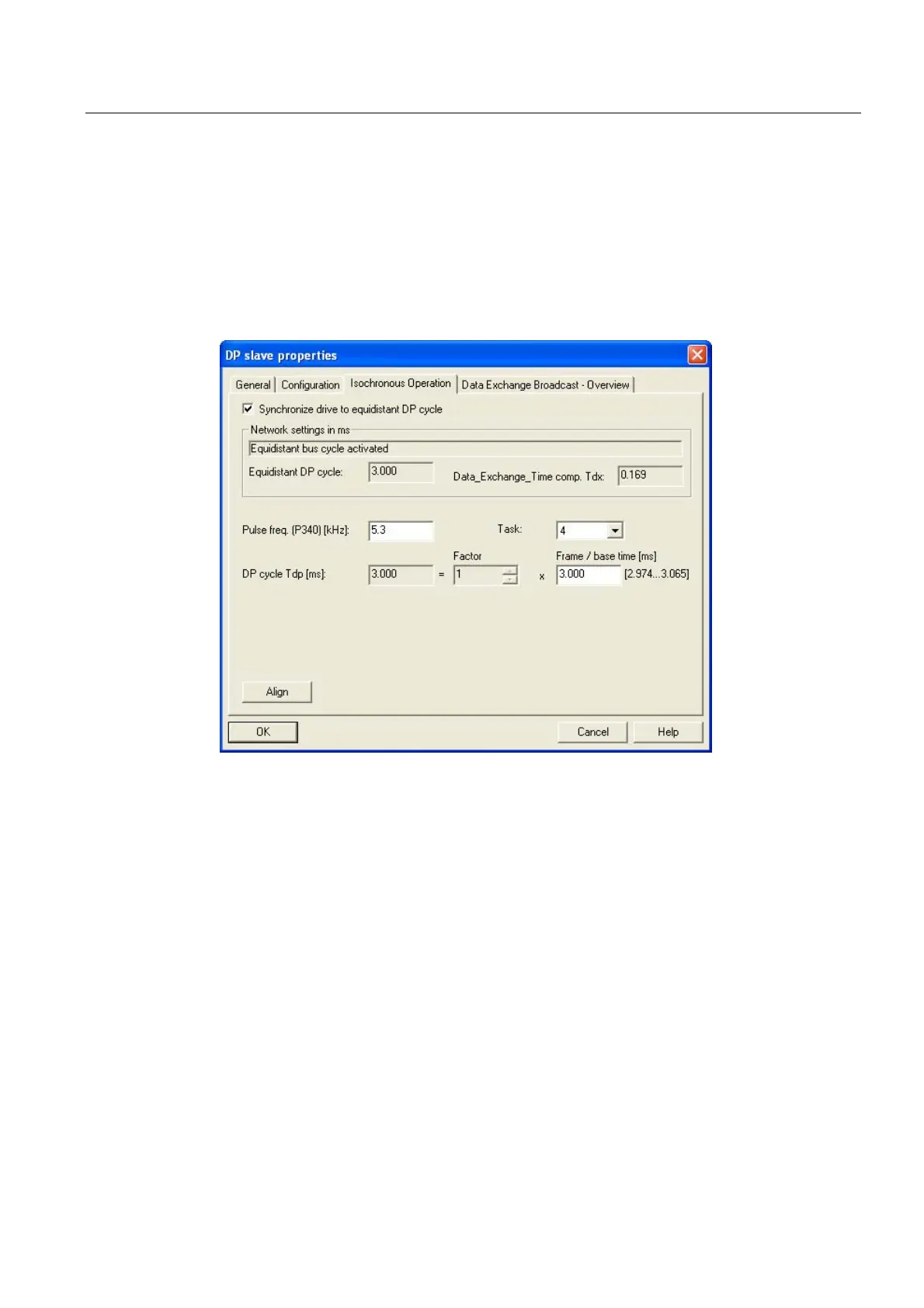

Figure 4-10 Adapting the DP cycle
● Click OK to confirm the changes.
