Commissioning
4.5 Connect MASTERDRIVES MC to the Technology-CPU
Connecting SIMOVERT MASTERDRIVES MC to the Technology-CPU
84 Product Information, 03/2008, A5E00272072-05
● Carefully read the contents of the message box with the setting information for the
application-dependent parameter P205 (rated velocity) and acknowledge the message.

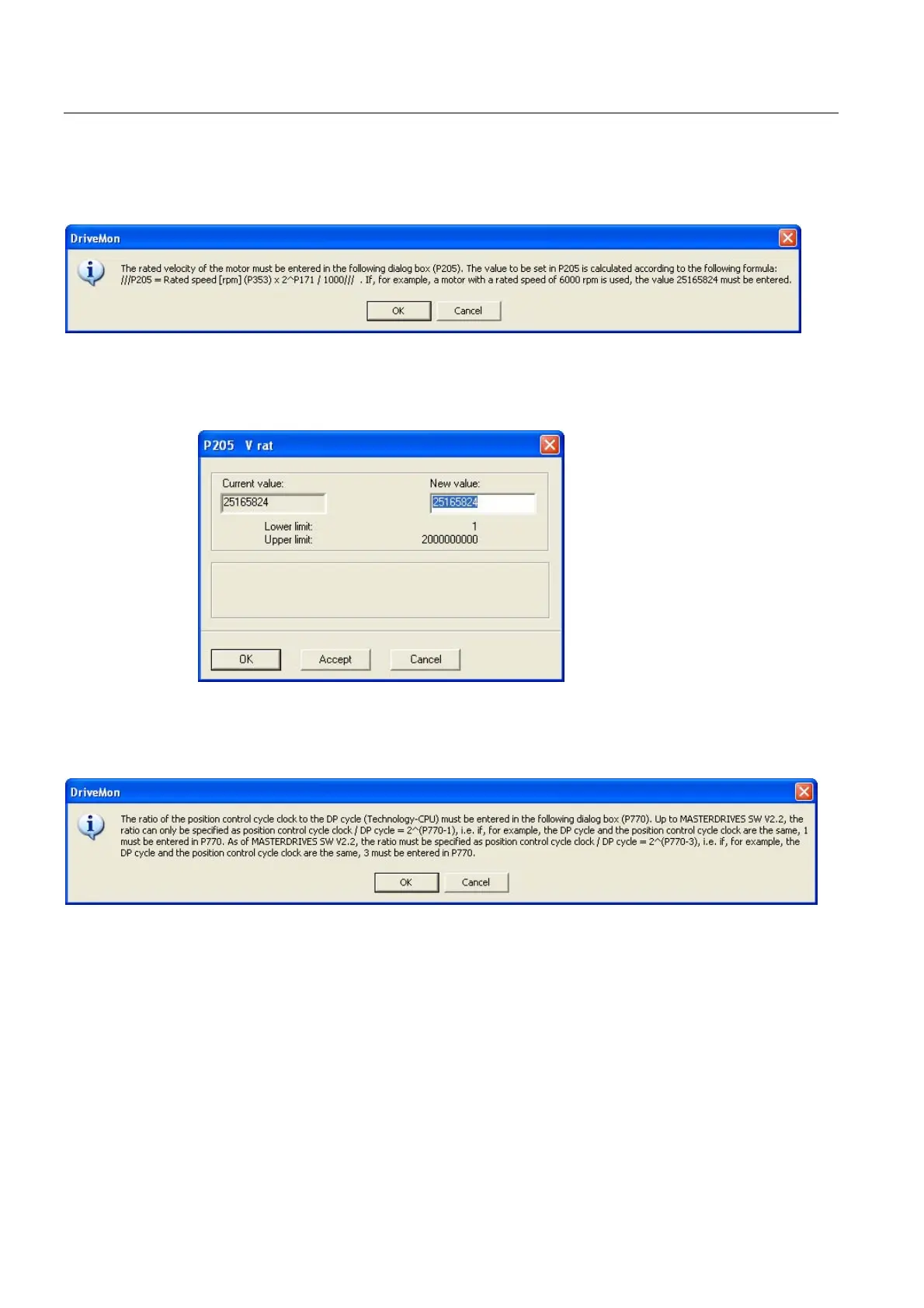

Figure 4-62 Message box with setting information for P205
● Set the required value in the dialog box for the application-dependent parameter P205
(rated velocity):
Figure 4-63 Dialog box for setting P205
● Carefully read the contents of the message box with the setting information for the
application-dependent parameter P770 (interpolator) and acknowledge the message.
Figure 4-64 Message box with setting information for P770
