Commissioning
4.3 Creating a STEP 7 project
Connecting SIMOVERT MASTERDRIVES MC to the Technology-CPU
Product Information, 03/2008, A5E00272072-05
35

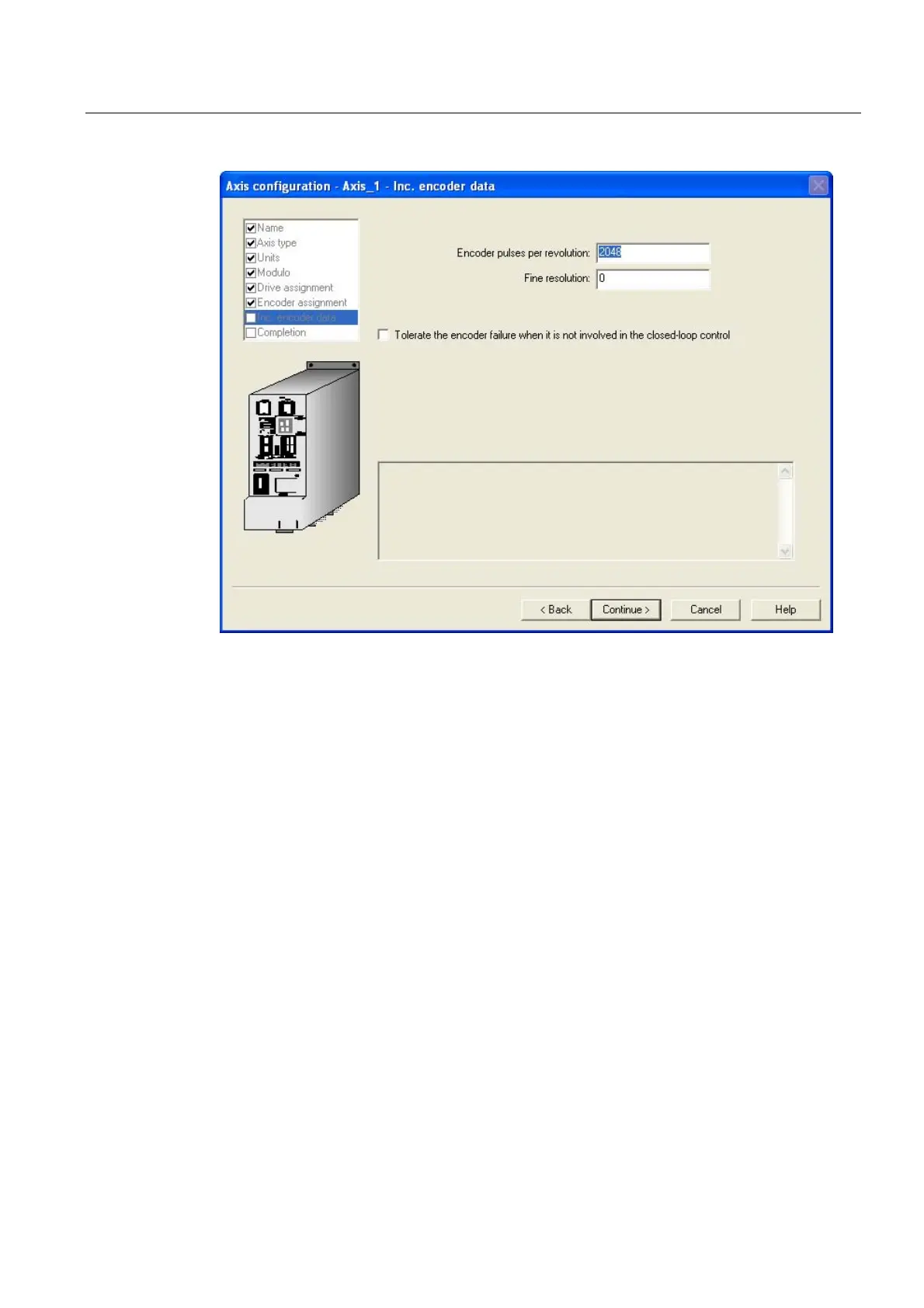

Figure 4-22 Axis configuration in S7T Config (enters the resolution of incremental encoders)
Specifying the encoder and the resolution
The encoder and its resolution must be specified in the Technology CPU and in
MASTERDRIVES MC.
