Commissioning
4.3 Creating a STEP 7 project
Connecting SIMOVERT MASTERDRIVES MC to the Technology-CPU
34 Product Information, 03/2008, A5E00272072-05
Incremental encoders are appropriately set (squarewave TTL, sinusoidal, resolver) and the
resolution is entered according to the manufacturer's data (refer to the following two
diagrams), e.g. motor 1Fxxxxx-xxxxx-xAxx sin/cos.

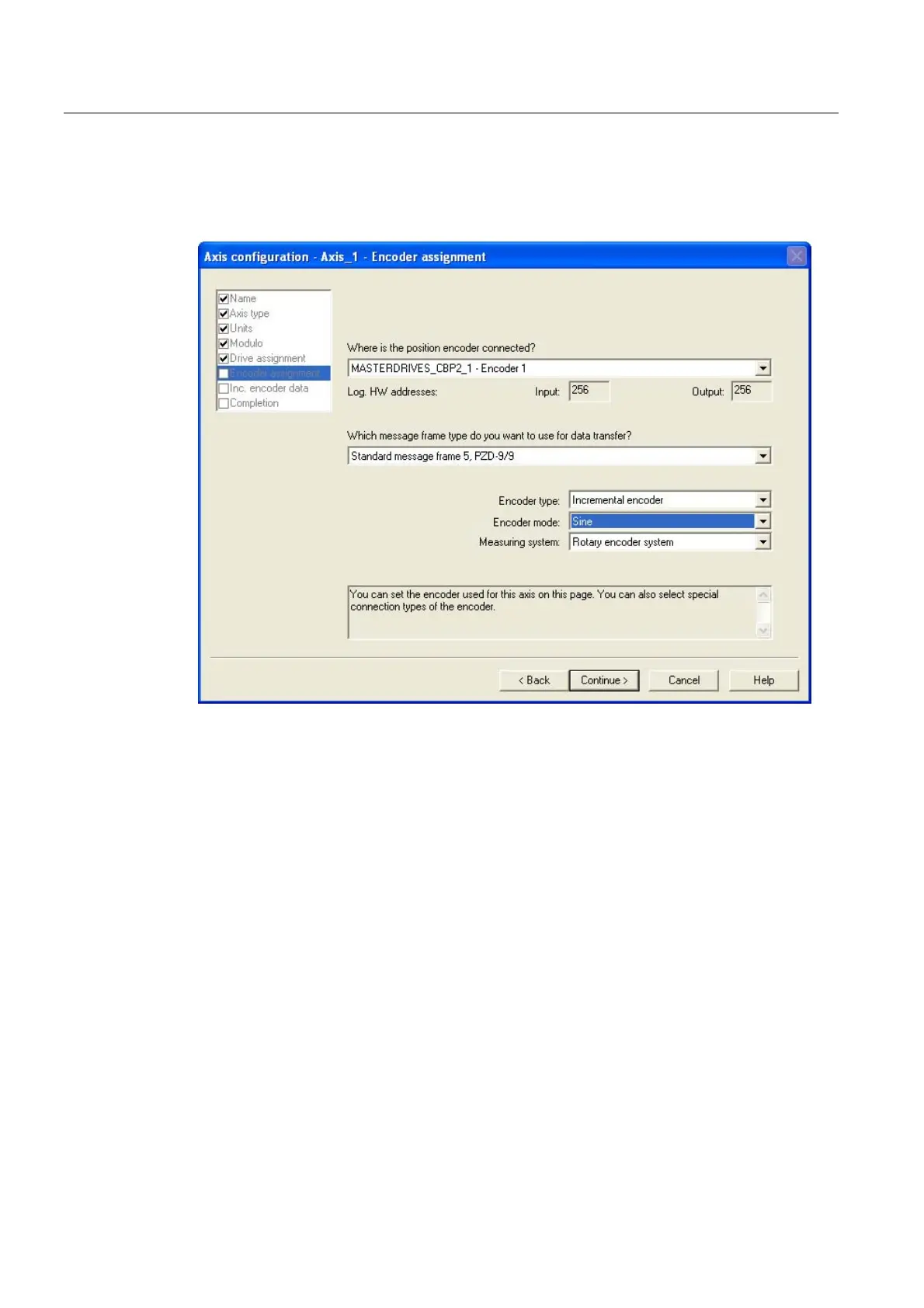

Figure 4-21 Axis configuration in S7T Config (selects the encoder type for incremental encoders)
