Commissioning
4.3 Creating a STEP 7 project
Connecting SIMOVERT MASTERDRIVES MC to the Technology-CPU
Product Information, 03/2008, A5E00272072-05
47
Correcting of system-related deadtimes
The system compensates the system-related deadtimes (deadtimes after the optimized DP
cycle). With the coupling between the control and MASTERDRIVES MC, additional
deadtimes occur, that are dependent on the DB cycle and the firmware release of the MC. In
order to compensate these additional deadtimes, the configuration data must be
appropriately configured.

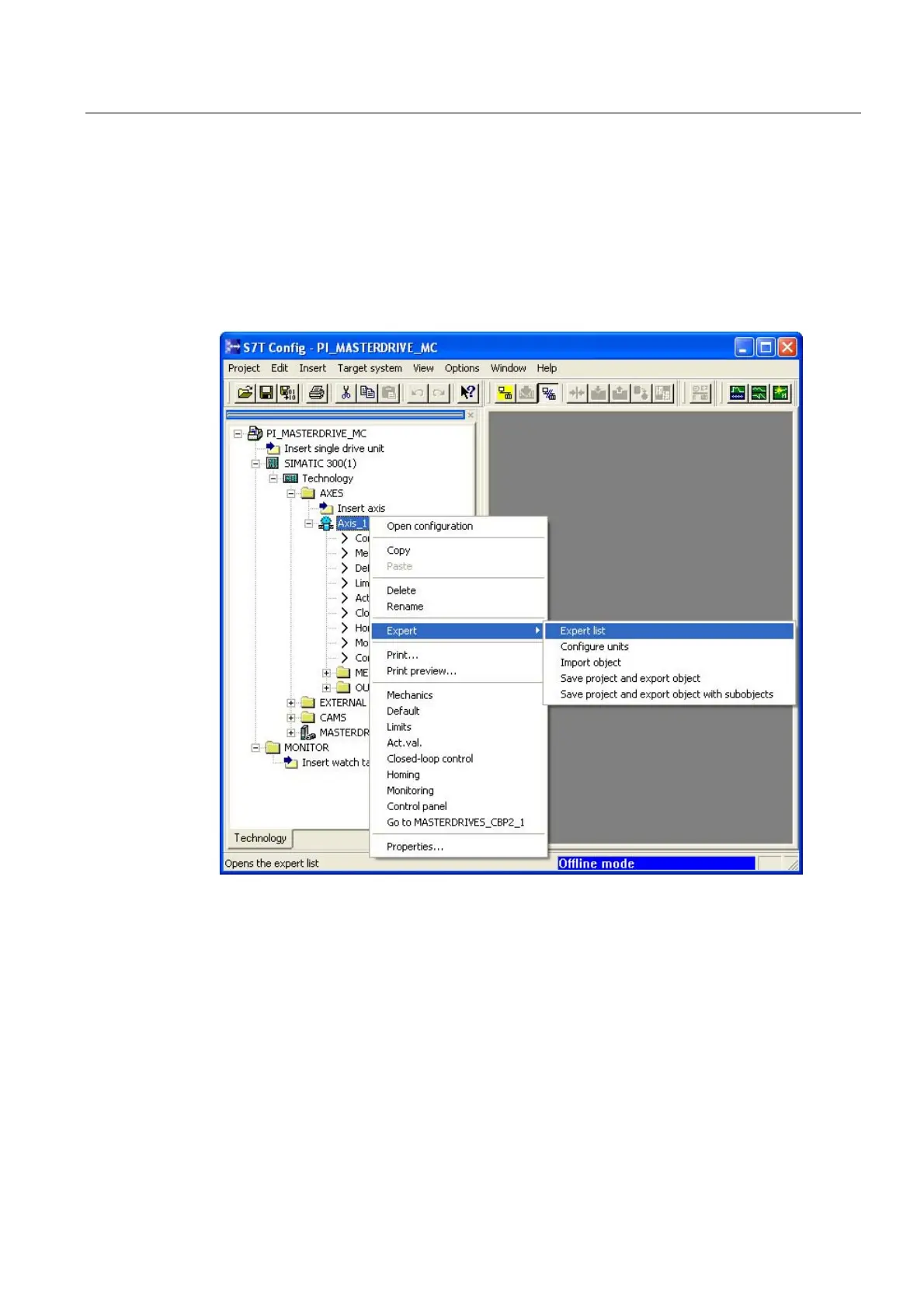

Using the righthand mouse key, click on the axis and select Expert > Expert list:
Figure 4-26 Calling the expert list
