4.3 Creating a STEP 7 project
Connecting SIMOVERT MASTERDRIVES MC to the Technology-CPU
24 Product Information, 03/2008, A5E00272072-05
ā You must then save and compile the project (Station > Save and compile). The
consistency must also be checked (Station > Check consistency).
After these steps have been completed without any errors, you must download the
hardware configuration into the Technology CPU (Target system > Load to module).
If you have changed the data transfer rate of the MPI/DP interface, then you must adapt
the interface parameters in the PG/PC interface in order to be able to subsequently
download the technology system data into the module.
The hardware configuration therefore still does not contain any technology system data.
The generation of this data is separately activated in the hardware configuration. To do
this, double click on index 3 (Technology) in the profile rail of the SIMATIC 300 station
and change to the Technology system data tab. Activate Generate technology system
data and save and compile and again download the configuration into the CPU.

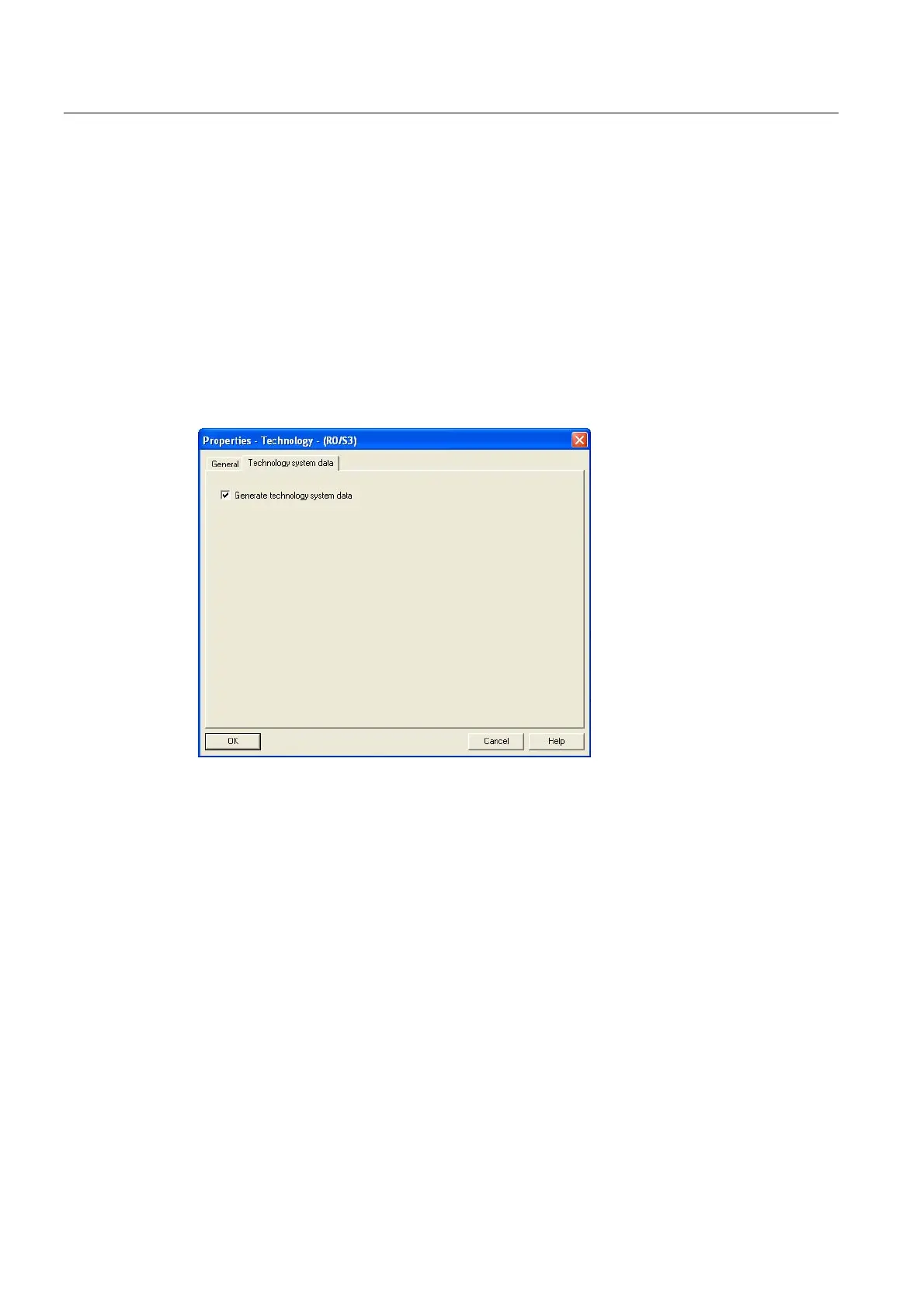

Figure 4-11 Activating the Generate Technology System Data function
