Procedure with Startdrive

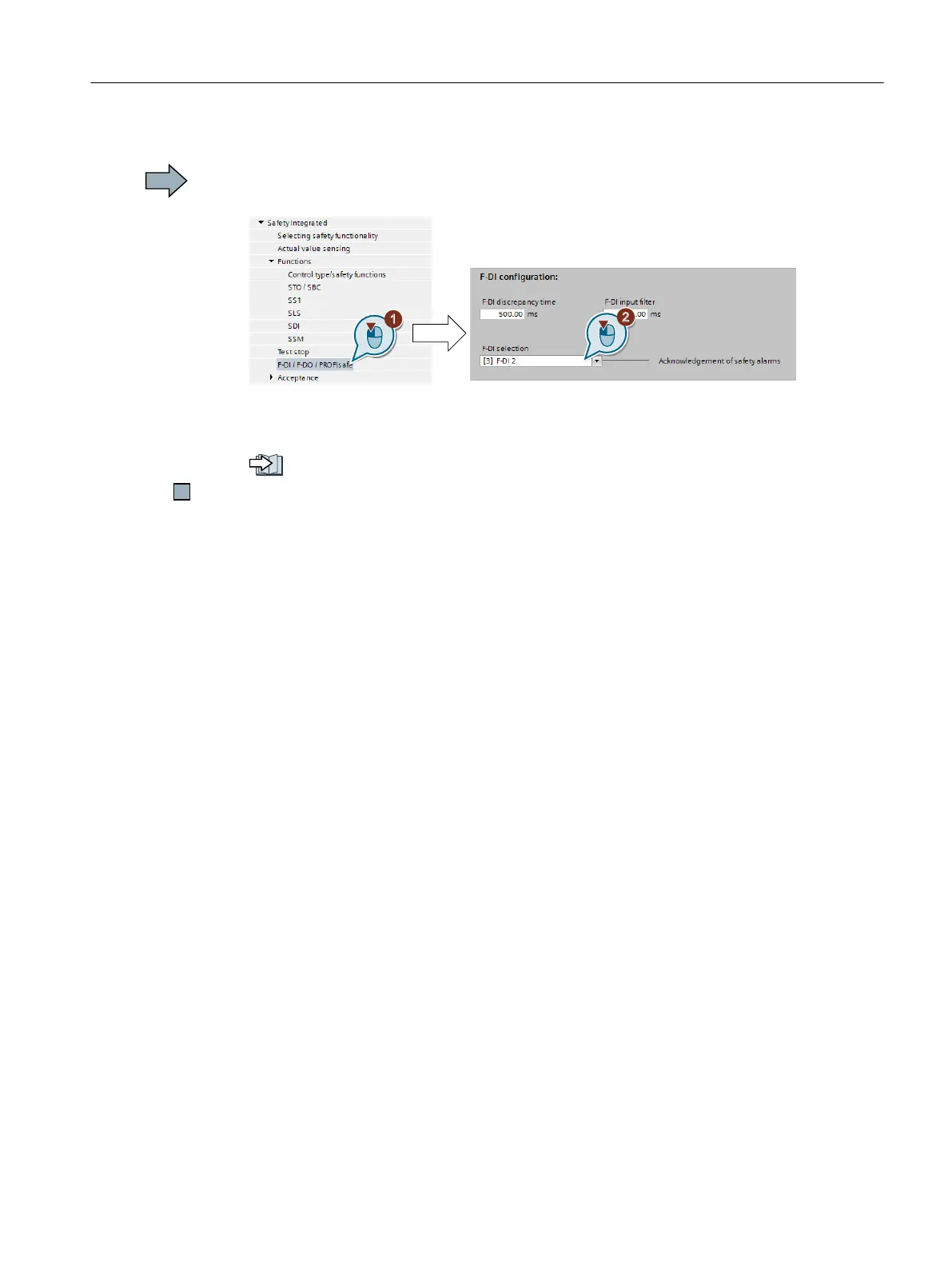

To assign the fail-safe acknowledgement signal to a fail-safe digital input, proceed as follows:
1. Select "F-DI / F-DO / PROFIsafe".
2. Select a free safety-related digital input for the fail-safe acknowledgment signal.
If there are no free fail-safe digital inputs available, you have to acknowledge the safety
function faults using a different method.
Acknowledging using a fail-safe signal (Page 299)
You have interconnected fail-safe acknowledge signal with a fail-safe digital input.
Commissioning
5.12 Setting extended functions
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD 163
