6.12.6 Selecting SS1 when SDI is active
Select SS1
SDI is active
6SHHG
*UHHQRQ
<HOORZRQ<HOORZIODVKHVVORZO\
6$06%5DFWLYH
66DFWLYH
672DFWLYH
6',
6',DFWLYH
6',DFWLYH
6KXWGRZQVSHHG
'HVHOHFW66
6',GHVHOHFW
6',DFWLYHUHPDLQVDFWLYH
6',DFWLYHEHFRPHV
LQDFWLYH
6$0
W
W
W
/('5'<
/('6$)(

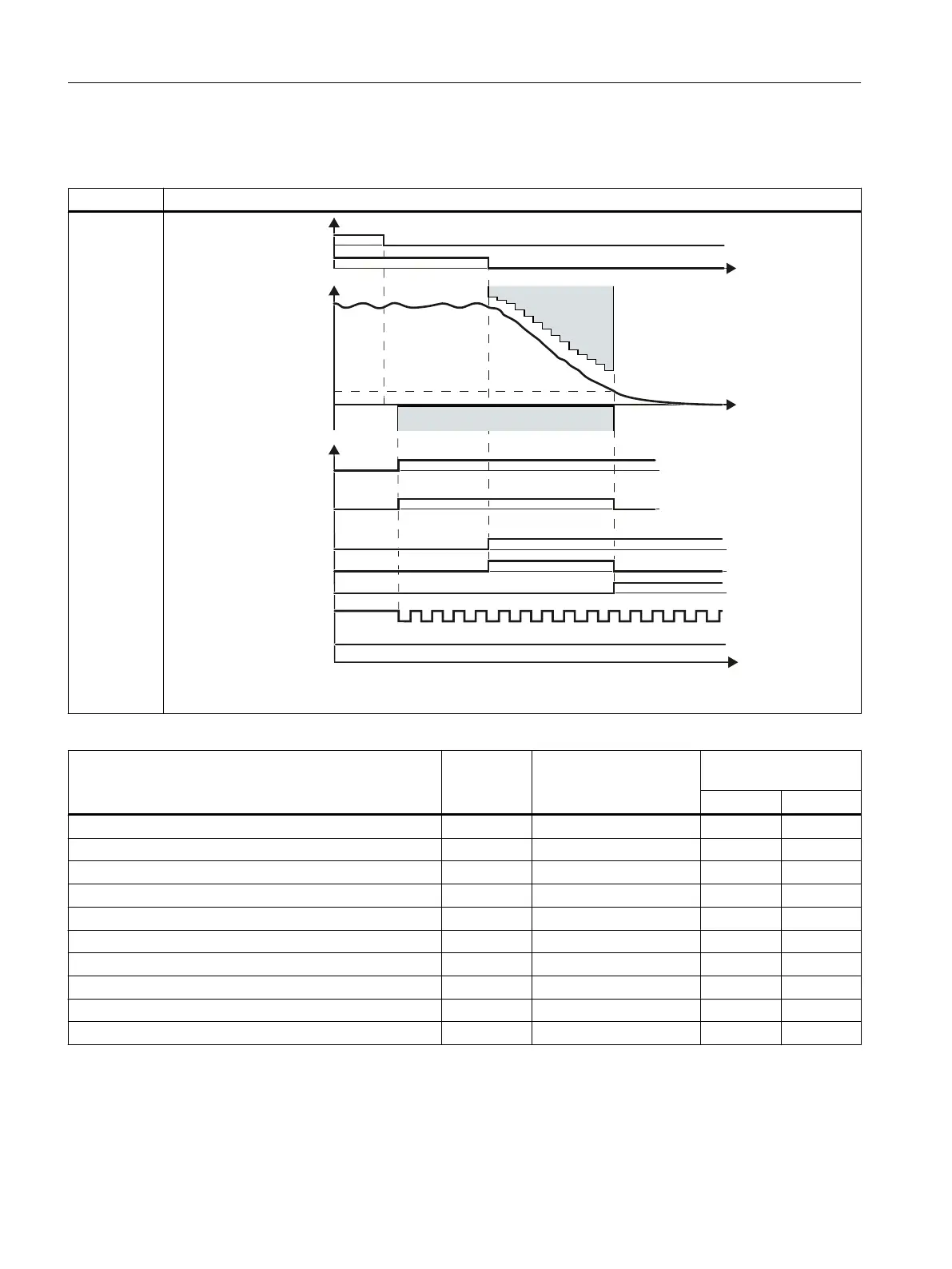

Example: SS1 with acceleration monitoring SAM
Inverter signals Parameter Included in the PROFI‐
safe telegram
Can be interconnected
with
F-DI F-DO
STO active (extended functions) r9722.0 ✓ --- ✓
SS1 active (basic functions) r9773.6 ✓ --- ✓
Deselect SS1 (basic functions) r9773.5 ✓ ✓ ---
SS1 active (extended functions) r9722.1 ✓ --- ✓
Deselect SS1 (extended functions) r9720.1 ✓ ✓ ---
SDI+ active r9722.12 ✓ --- ✓
SDI+ deselect r9720.12 ✓ ✓ ---
SDI- active r9722.13 ✓ --- ✓
Deselect SDI- r9720.13 ✓ ✓ ---
SAM/SBR active r9723.16 --- --- ---
Operation
6.12 Selecting safety function when a safety function is active
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
310 Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD
