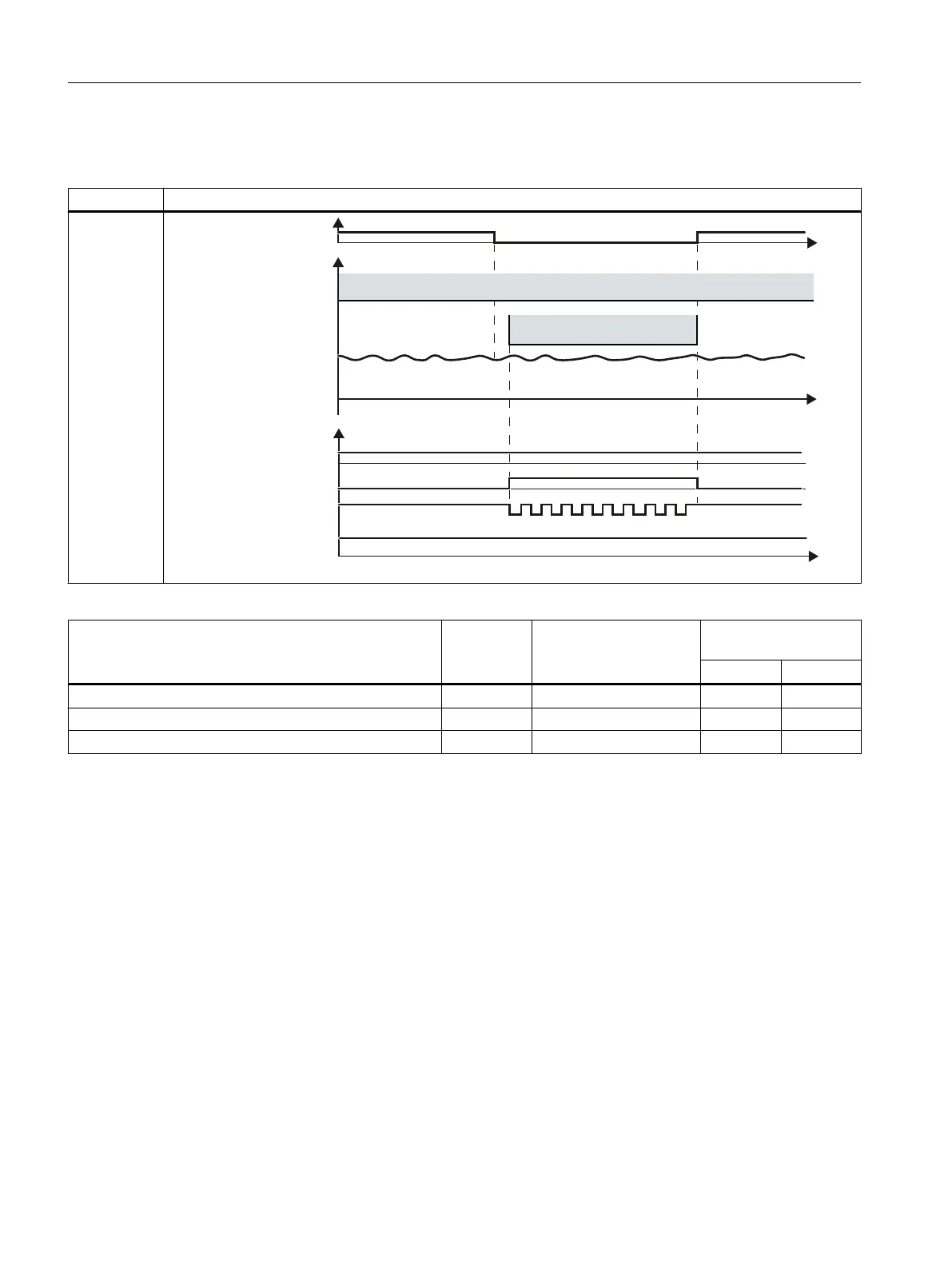

6.12.9 Selecting SLS when SSM is active
Select SLS
SSM is ac‐
tive
6SHHG
*UHHQRQ
<HOORZIODVKHVVORZO\<HOORZRQ<HOORZRQ
6SHHGEHORZWKH
OLPLWYDOXH
6/6DFWLYH
'HVHOHFW6/6
660
6/6
W
W
/('5'<
/('6$)(
W
Inverter signals Parameter Included in the PROFI‐
safe telegram
Can be interconnected
with
F-DI F-DO
SLS active r9722.4 ✓ --- ✓
Deselect SLS r9720.4 ✓ ✓ ---
SSM feedback signal active (speed below limit value) r9722.15 ✓ --- ✓
Operation
6.12 Selecting safety function when a safety function is active
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
314 Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD
