5.12.4.2 Output signal and setting the test mode
Requirements
● You are online with STARTER or Startdrive.
● You have selected the extended functions via onboard terminals.

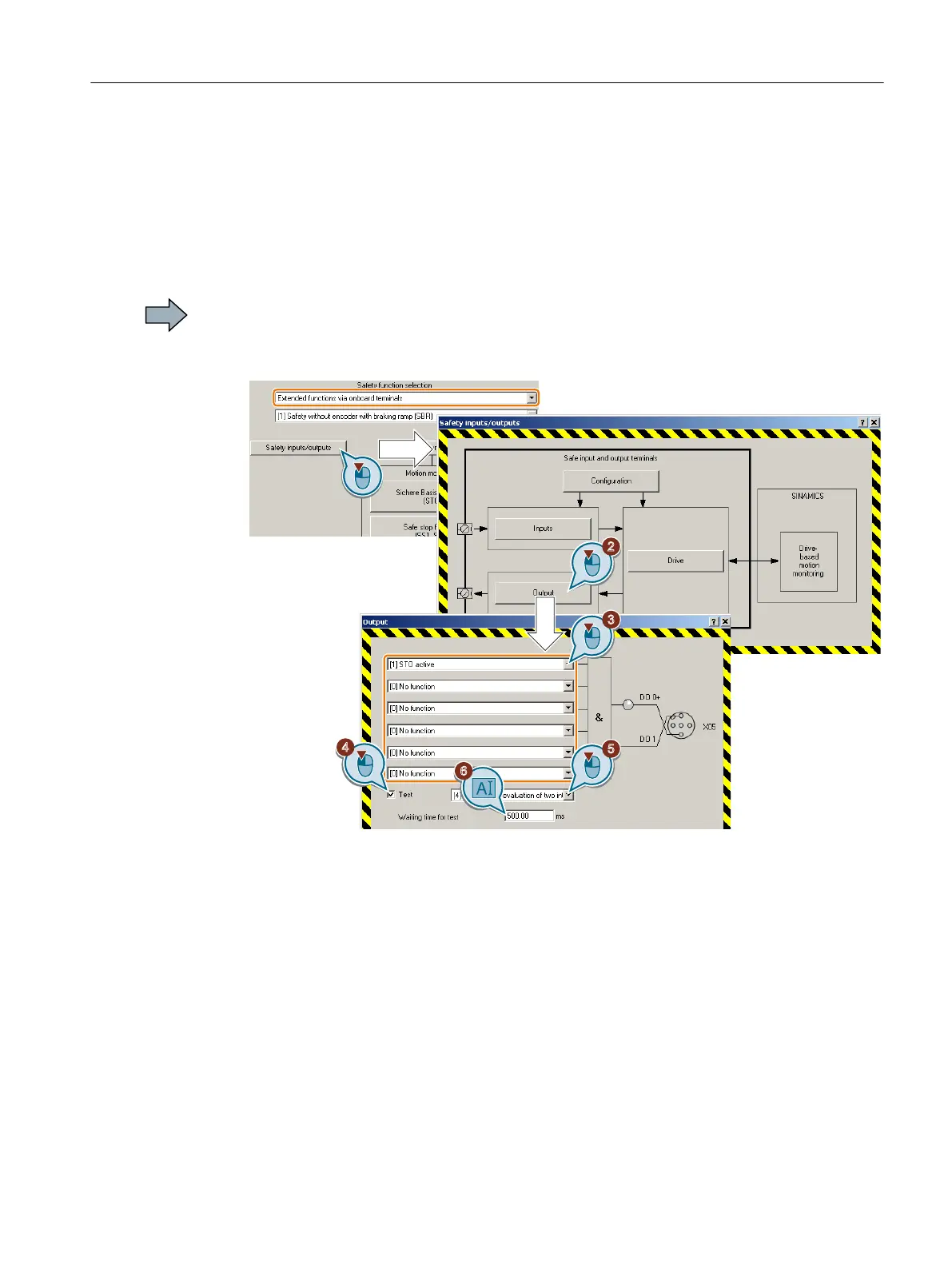

Procedure with STARTER
To set the fail-safe digital output, proceed as follows:
1. Press the "Safety inputs/outputs" button.
2. Press the "Output" button.
3. Interconnect the status signals of your choice with the fail-safe digital output. The
"Safestate"signal is described below.
The inverter logically combines the status signals according to the following rules:
– The inverter ignored inputs without interconnection.
– If none of the inputs is interconnected, then the output signal = 0.
4. Activate the test for the fail-safe digital output.
5. Select the test mode that is compatible with your application.
