6.5.5 Limit value violation when SS1 is active
Drive response
If motion monitoring detects a fault when SS1 is active, the inverter safely switches off the
motor torque (STOP A).
6SHHG
W
W
,QWHUQDOHYHQW
6$06%5DFWLYH
66DFWLYH
672DFWLYH
W
'HVHOHFW66
212))
&RQYHUWHULGHQWLILHV
DIDXOW
*UHHQRQ5HGIODVKHVTXLFNO\*UHHQRQ
<HOORZRQ
<HOORZ
TXLFN
<HOORZVORZ
<HOORZRQ
6WDQGDUGDFNQRZOHGJH
/('5'<
/('6$)(
6723$
6$0

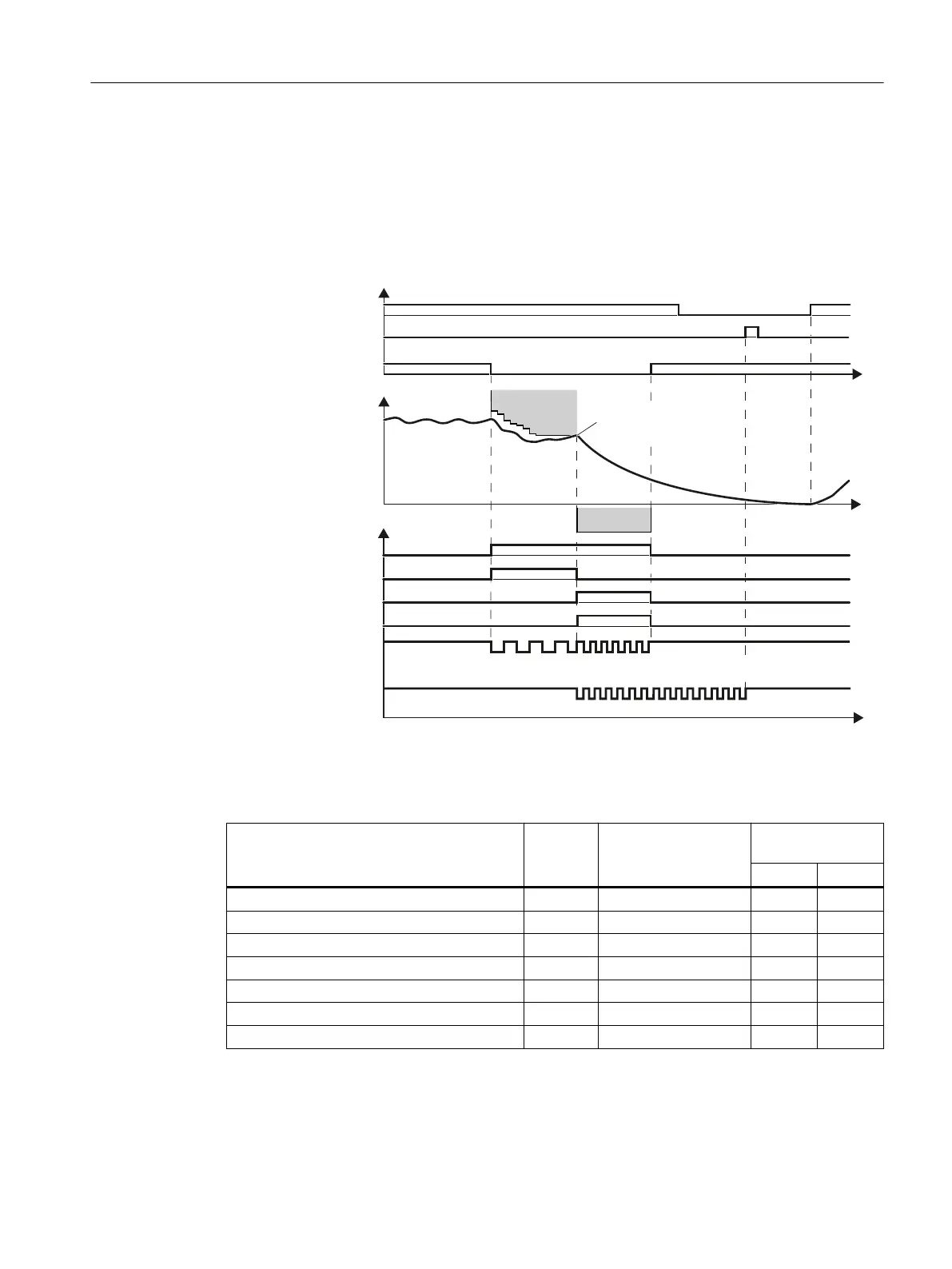

Figure 6-23 General fault response of safety function SS1 (as an example: SS1 with acceleration
monitoring)
Inverter signal Parame‐
ter
Included in the PRO‐
FIsafe telegram
Can be intercon‐
nected with
F-DI F-DO
Internal event r9722.7 ✓ --- ✓
STO active (extended functions) r9722.0 ✓ --- ✓
SS1 active (extended functions) r9722.1 ✓ --- ✓
Deselect SS1 (extended functions) r9720.1 ✓ ✓ ---
SAM/SBR active r9723.16 --- --- ---
"Standard" acknowledgment p2103 --- --- ---
ON/OFF1 r0054.0 --- --- ---
