Procedure with STARTER

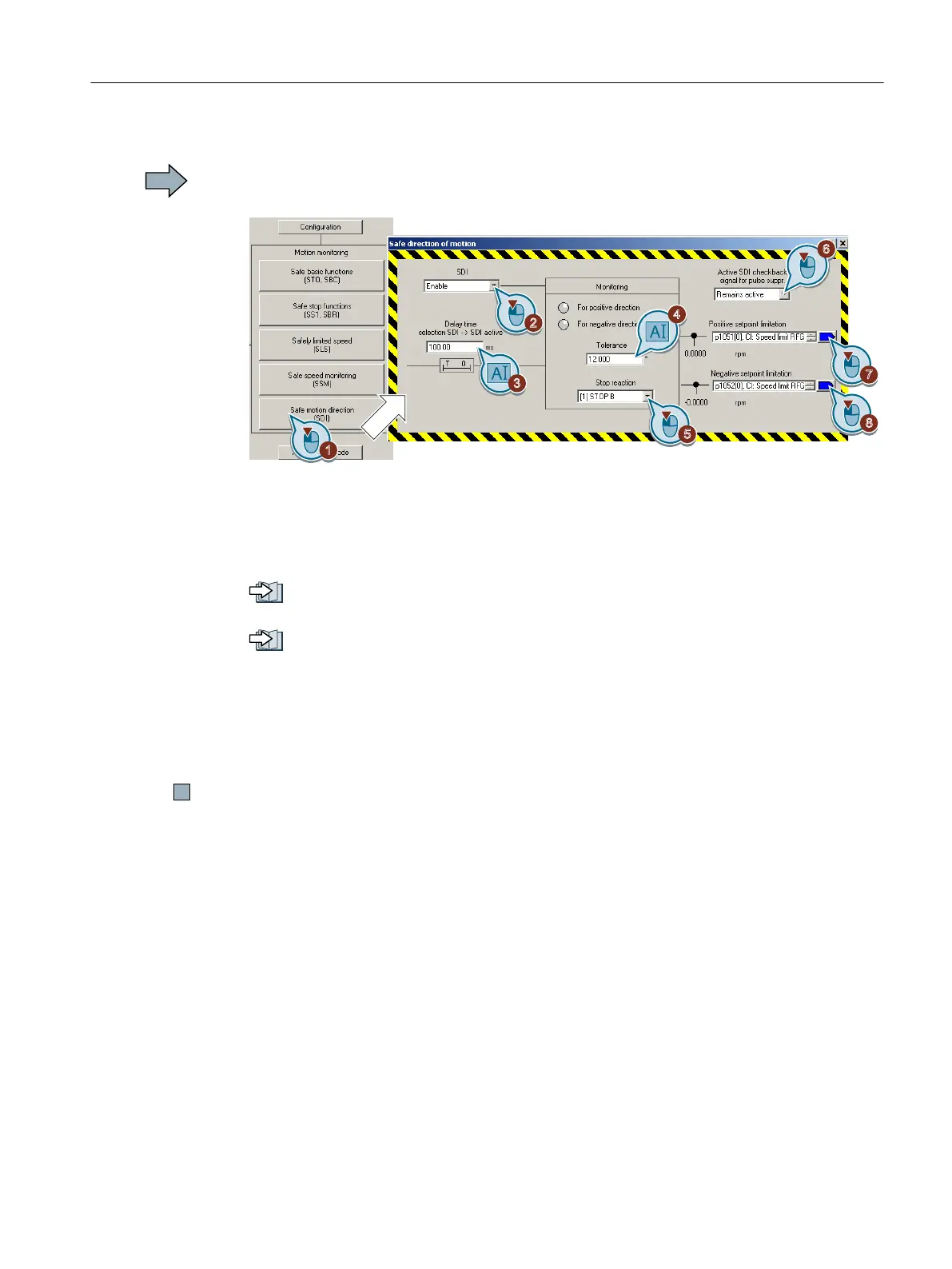

Proceed as follows to set the SDI function:
1. Press the button for SDI.
2. Enable the function.
3. Delay time up to active monitoring.
4. Tolerance for motion in the monitored direction.
5. Response when the monitoring function responds.
Stop responses (Page 294)
6. The response when the motor is switched off.
Switching off the motor when SDI is active (Page 283)
7. If you leave this signal interconnection at the factory setting, when SDI- is selected, the
inverter limits the speed.
8. If you leave this signal interconnection at the factory setting, when SDI+ is selected, the
inverter limits the speed.
9. Close the screen form.
You have set the SDI function.
