Selecting STO when the motor is rotating
Function
1. The higher-level control selects the STO function.
2. The inverter closes the brake without taking the current speed into consideration.
000
6SHHG
212))
'HVHOHFW672
2SHQPRWRUKROGLQJEUDNH
0RWRUKROGLQJEUDNHLVRSHQ
6%&LVUHTXHVWHG
W
W
W

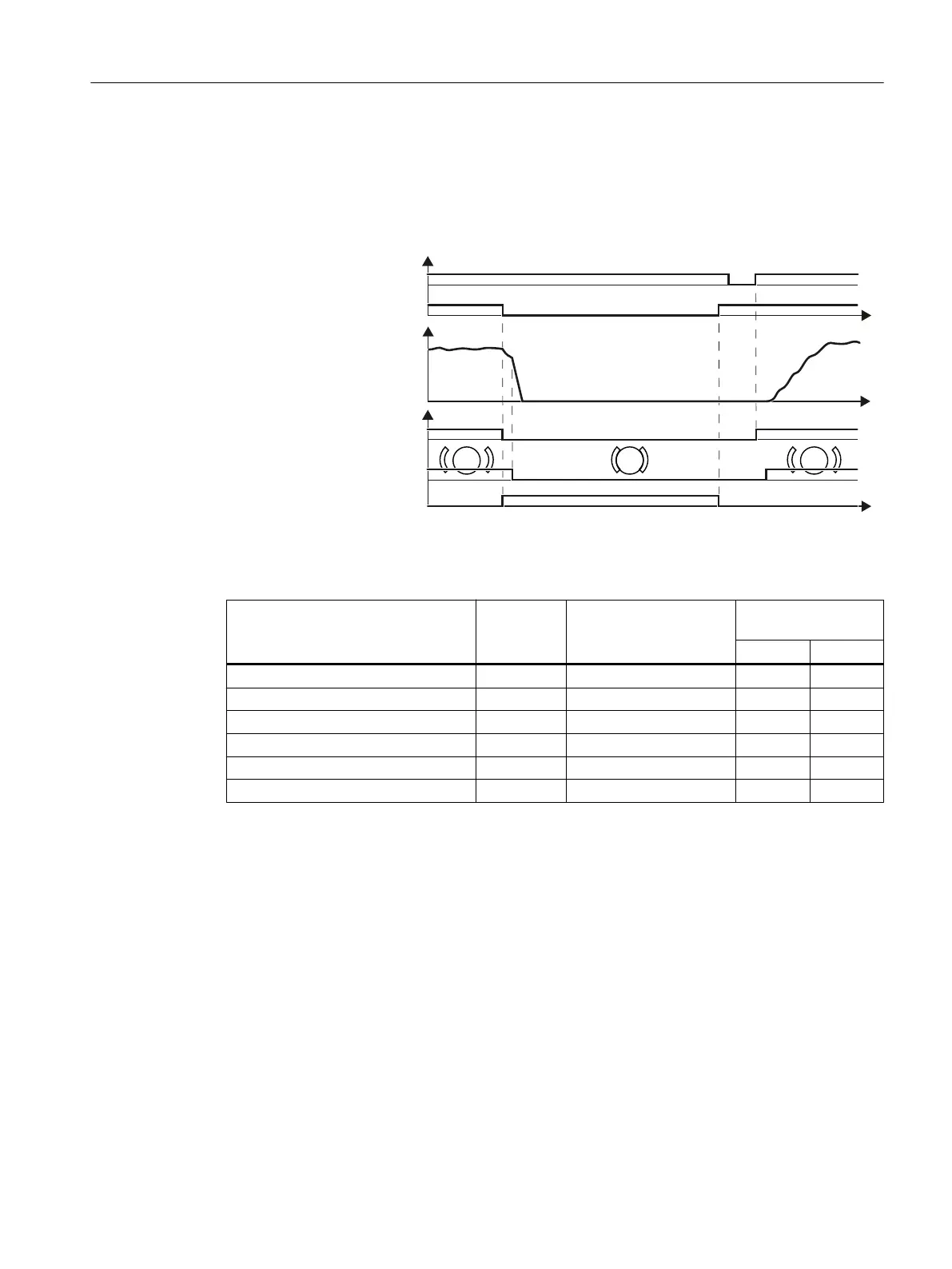

Figure 6-15 The motor holding brake closes after selecting STO
Before you can switch on the motor again, you must deselect the STO function.
Inverter signal Parameter Included in the PROFI‐
safe telegram
Can be interconnec‐
ted with
F-DI F-DO
STO deselection (basic functions) r9773.0 ✓ ✓ ---
Deselect STO (extended functions) r9720.0 ✓ ✓ ---
SBC requested (basic functions) r9773.4 --- --- ---
ON/OFF1 r0054.0 --- --- ---
Release motor holding brake r0899.12 --- --- ---
Close motor holding brake r0899.13 --- --- ---
