6ZLWFKHG
2Q
6SHHG
6HWSRLQW
*UHHQ
2Q
*UHHQ
2Q
'LDJQRVWLFV
7HVWWKHOLPLW
YDOXH
$FNQRZOHGJH
6',DFWLYH
,QWHUQDOHYHQW
)ODVKLQJUDSLGO\
)ODVKLQJUDSLGO\
VORZ
<HOORZ
2Q
)ODVKLQJVORZO\
&RQWURO
)DLOVDIHDFNQRZO
HGJPHQW
6',GHVHOHFW
6ZLWFKRQ
PRWRU
'HDFWLYDWH
OLPLWDWLRQ
212))
$FNQRZOHGJH
672DFWLYH
6$)(
5'<
W
W
U
U
/('
W
U
S
S
6',
U

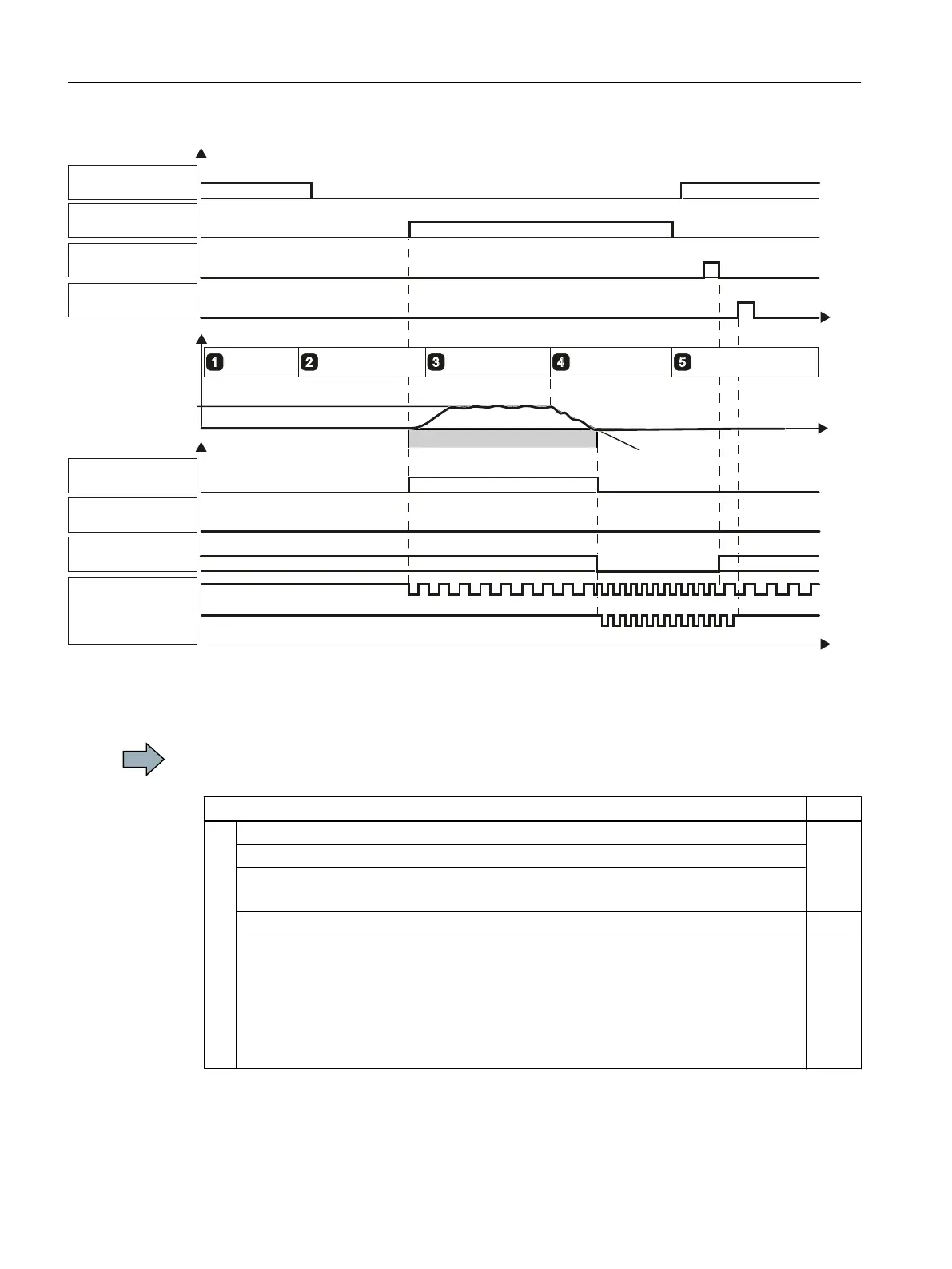

Figure A-12 Diagram 2 - acceptance for SDI+, "SDI active" becomes inactive when the motor is switched off
Procedure
To perform the acceptance test of the SDI function for the positive direction of rotation, proceed
as follows:
Status
1. The inverter is ready
Check the following:
● The inverter signals neither faults nor alarms of the safety functions (r0945[0…7],
r2122[0…7]).
● SDI+ is not active (r9722.12 = 0).
Go online with the STARTER and configure the following trace:
● Trigger on variable - bit pattern (r9722.7 = 0).
● Record the following values: r9713[0], r9722
Display the bits r9722.0/.1/.7/.12
● Select the interval and pretrigger so you can recognize when the SDI tolerance has
been exceeded and the subsequent drive responses.


Appendix
A.2 Examples of acceptance tests
Safety Integrated - SINAMICS G110M, G120, G120C, G120D and SIMATIC ET 200pro FC-2
404 Function Manual, 01/2017, FW V4.7 SP6, A5E34261271B AD
