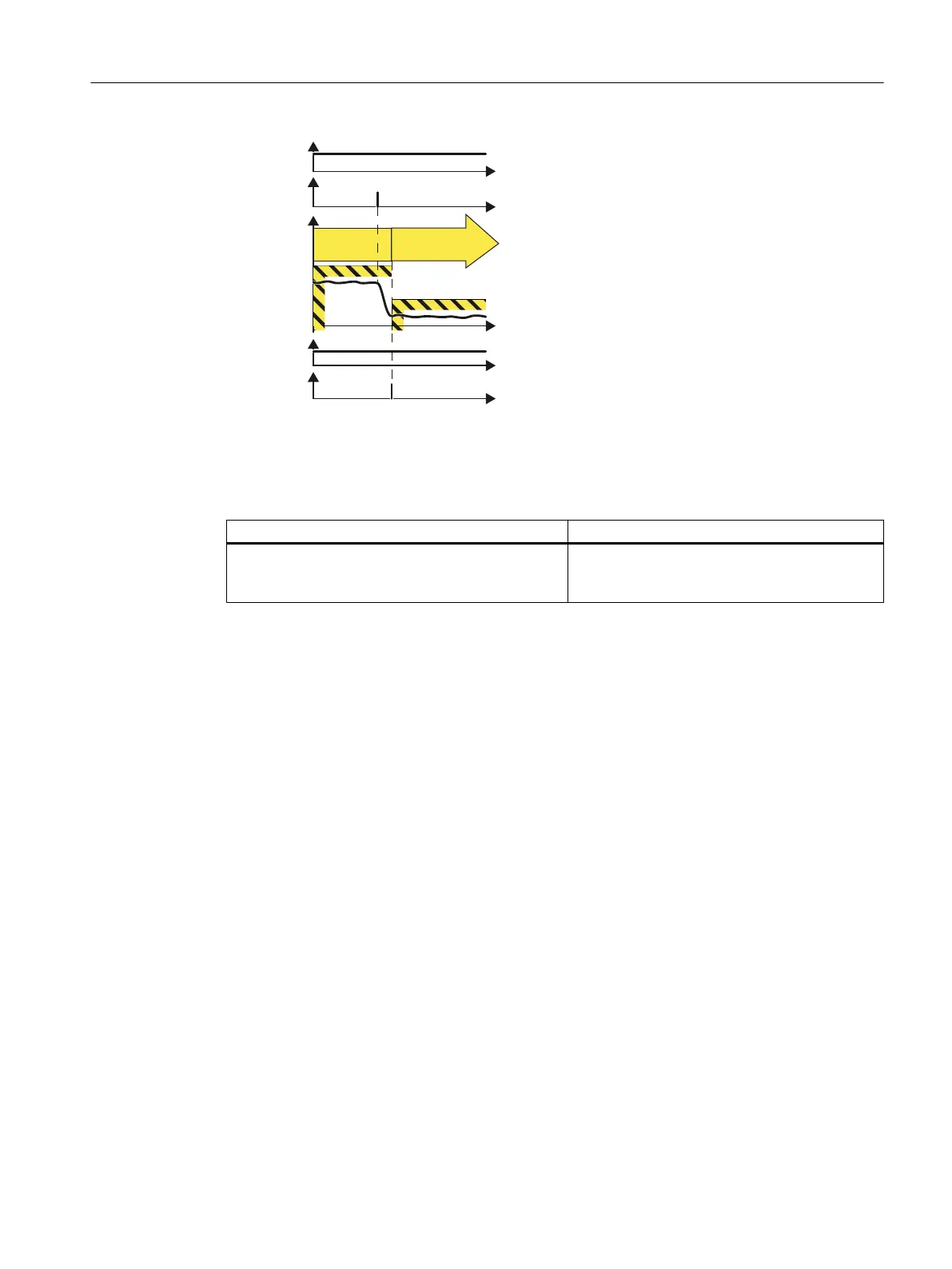

Figure 3-6 Switching over from SLS level 2 to SLS level 1
Application example for selecting SLS levels
Examples Possible solution
Depending on the diameter of the saw blade, a cir‐
cular saw must not exceed a specific maximum
speed.
● Select SLS and the corresponding SLS level
in the inverter via PROFIsafe.
Description
3.7 An overview of the principle of operation of the safety functions
