Procedure
To configure the inserted IO modules, select them successively and make the settings
individually for each module in the inspector window. Proceed as follows:
1. In the device view, select the rack and open the device overview.

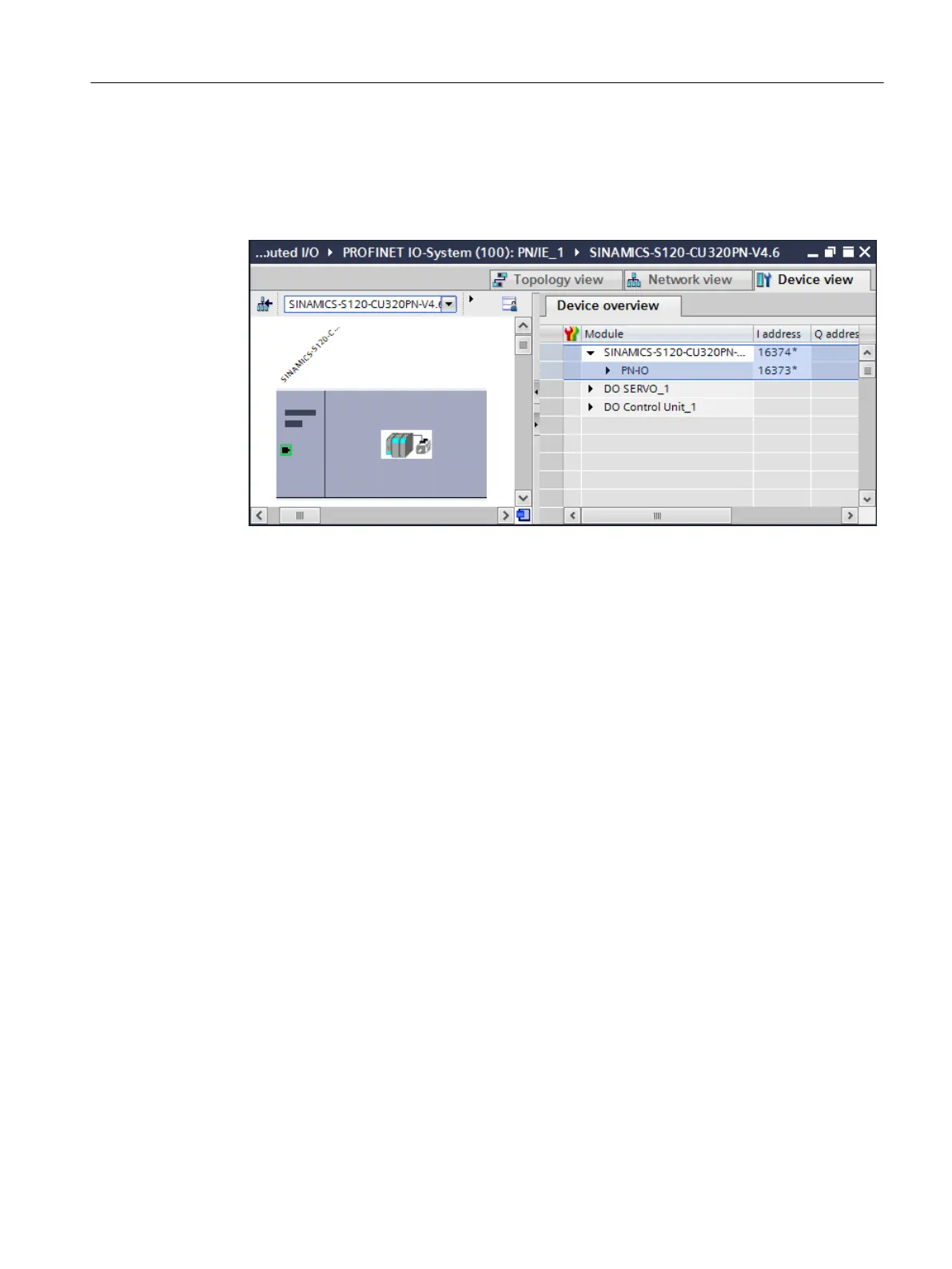

Figure 5-5 Device overview example of a GSD drive device with modules
2. In the device overview, select on the rack of the PROFINET unit one of the inserted modules
to be configured.
Configuring networks
5.5 Configuring PROFINET IO with IRT
SINUMERIK STEP 7 Toolbox V15.1
Configuration Manual, 12/2018, A5E46279635B AA 107
