4.1.3 Using copy templates
Introduction
The "Global libraries" folder of the "Libraries" TaskCard contains the system library of the
SINUMERIK PLC program for your device version: "SINUMERIK 840D sl PLC basic program
V4.x.x.x".

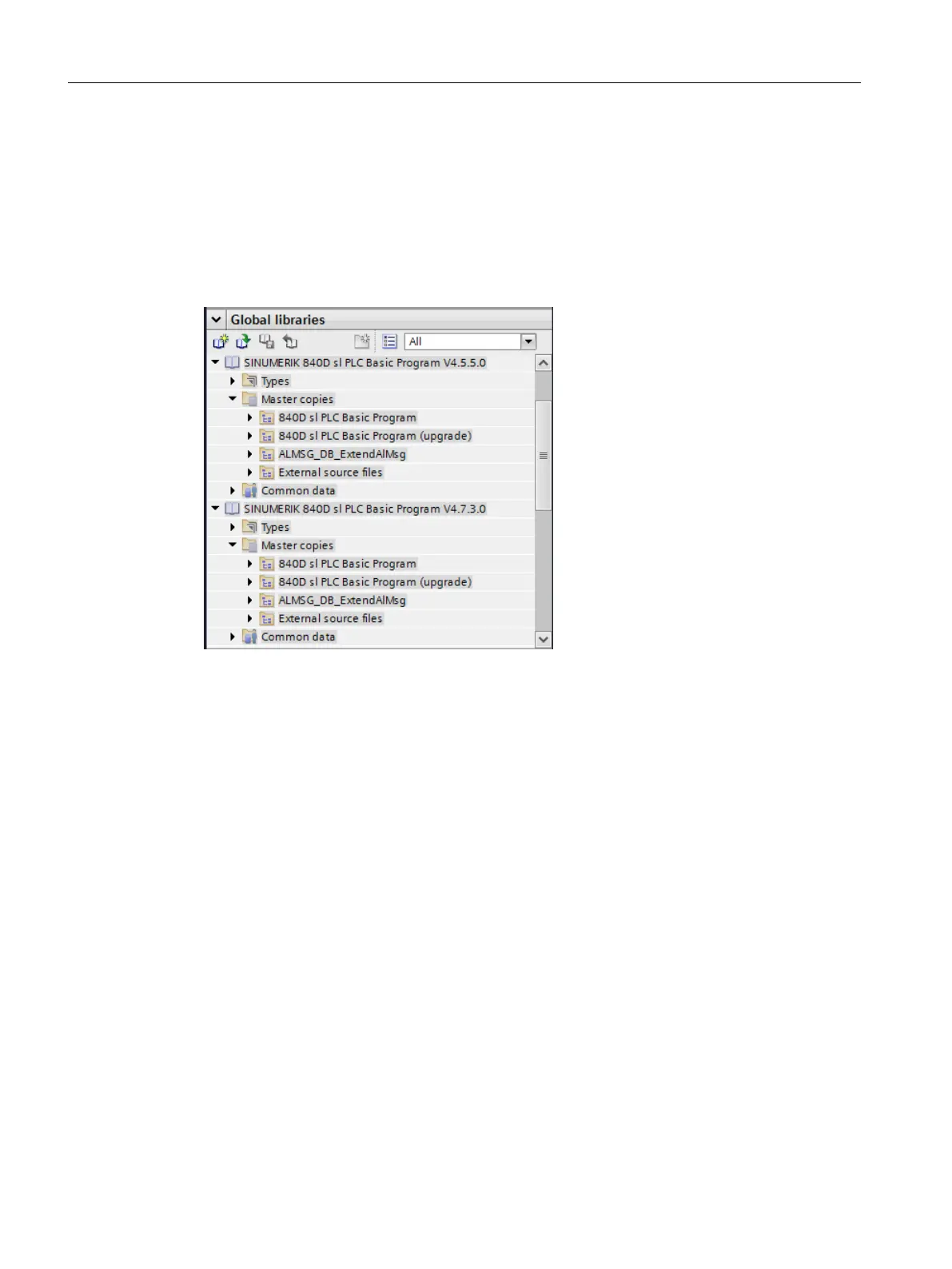

Figure 4-2 Master copies of the SINUMERIK PLC program
Under the "Master copies" folder there are four subfolders with different contents. You can copy
the contents of these subfolders in their entirety or you can copy the individual objects as
needed.
Using the Ctrl or shift key, you can select several objects of the same type and then copy
them.
If you copy a master copies folder in its entirety (e.g. "840D sl PLC BP"), the folder structure
is imported, i.e. new groups (subfolders) are created (Page 82) in your "Program blocks"
folder.
Programming the PLC
4.1 General information about the PLC program
SINUMERIK STEP 7 Toolbox V15.1
58 Configuration Manual, 12/2018, A5E46279635B AA
