5.5.3 Isochronous-capable modules identification
Whether
a module supports isochronous mode can be determined in the hardware catalog in
the following manner:
● When you select a device in the hardware catalog, you can see from the description in the
"Information" section whether this device supports isochronous mode or IRT.

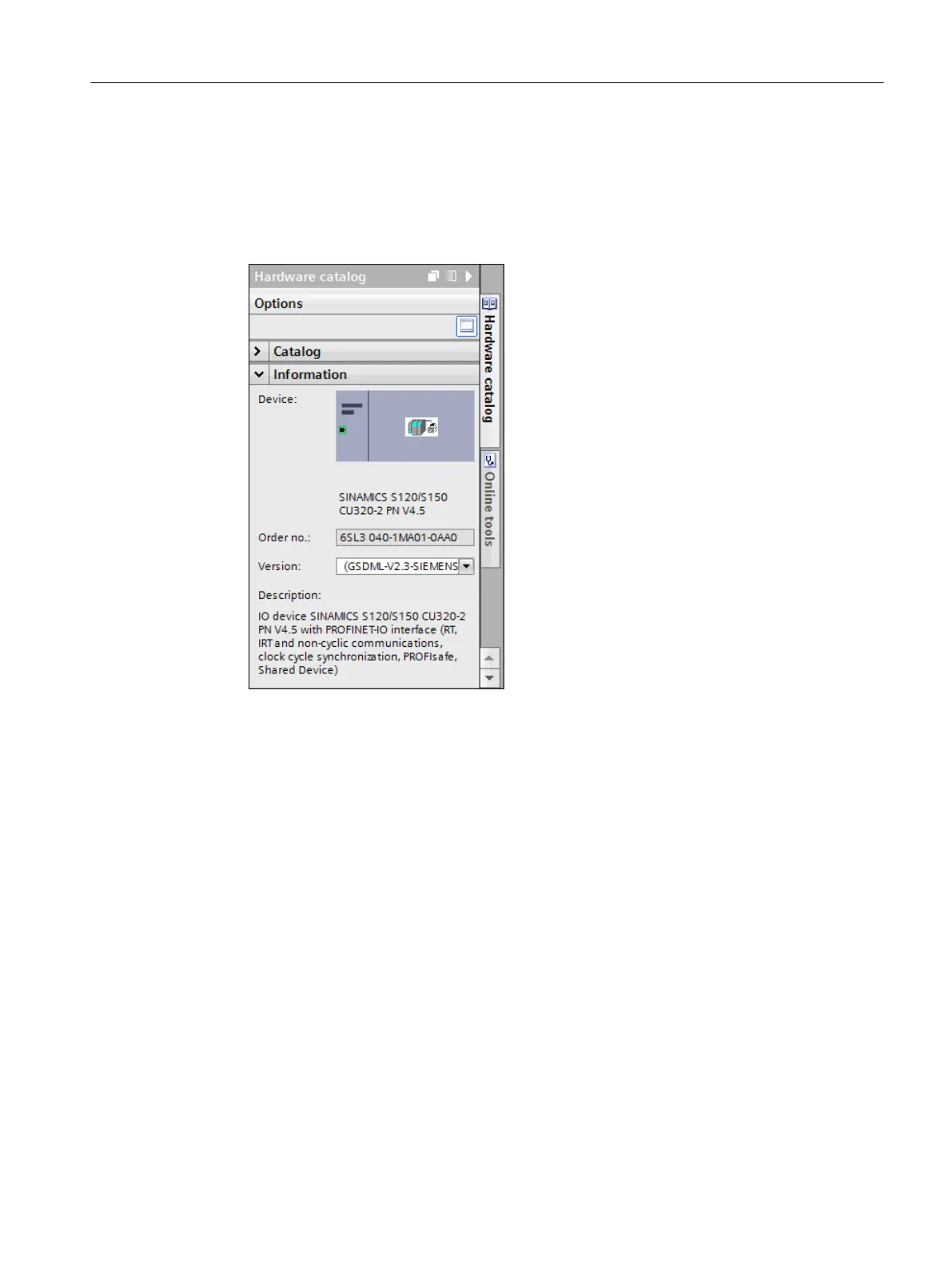

Figure 5-1 Description of a device in the hardware catalog
● All
peripheral modules that have the "HF" name suffix can be operated isochronously (e.g.
DI 16x 24 VDC HF - 6ES7 521-1BH00).
Configuring networks
5.5 Configuring PROFINET IO with IRT
SINUMERIK STEP 7 Toolbox V15.1
Configuration Manual, 12/2018, A5E46279635B AA 99
