The
general station description files are installed, and then the SINUMERIK I/O in the hardware
catalog displayed in the appropriate folders:
● SINUMERIK I/O for PROFINET IO: "Further field devices > PROFINET IO > I/O > SIEMENS
AG > SINUMERIK"
● SINUMERIK I/O for PROFIBUS DP: "Further field devices > PROFIBUS DP > NC/RC >
SIEMENS AG > MOTION CONTROL"

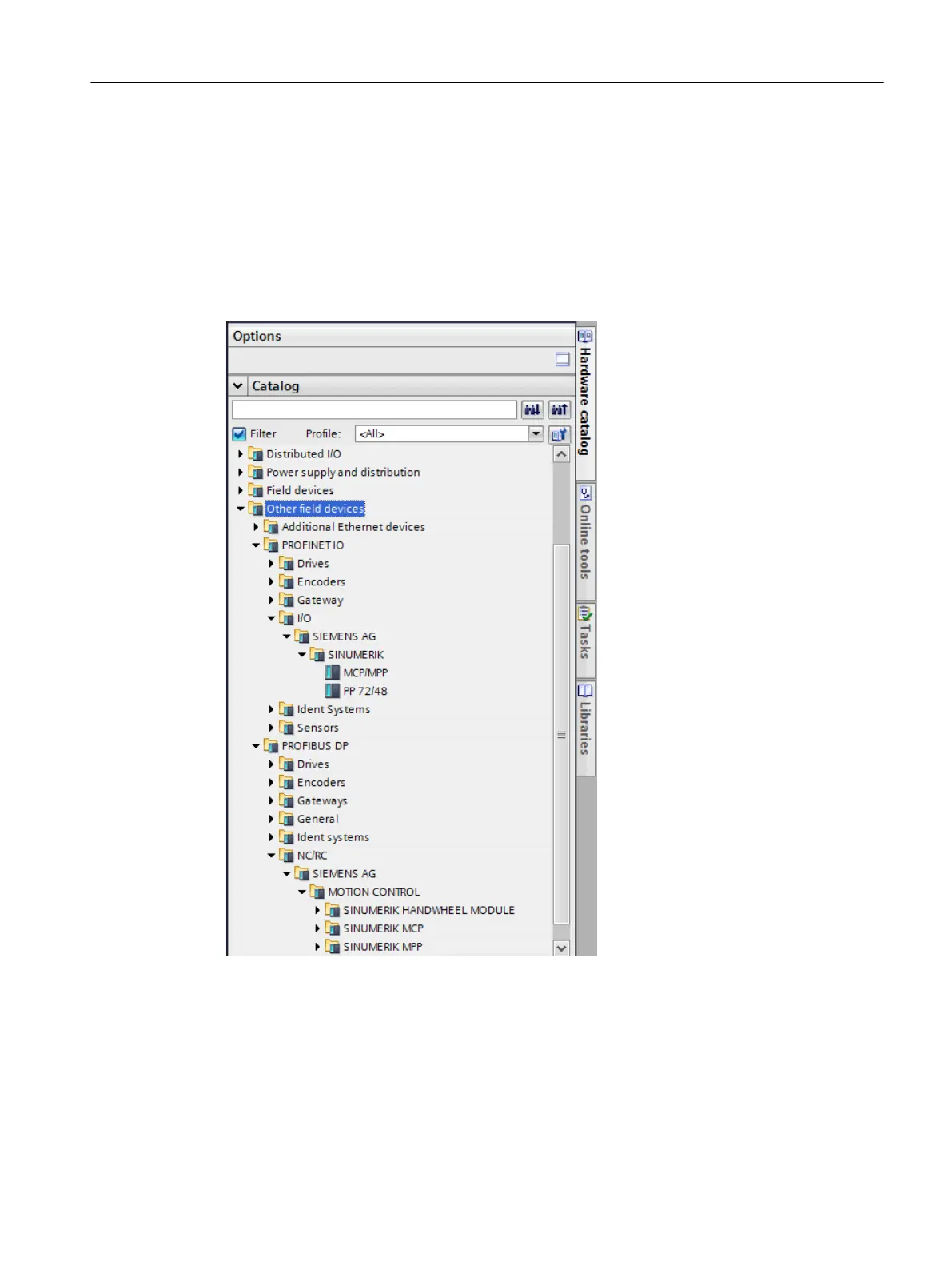

Figure 7-1 Installed SINUMERIK I/O in the hardware catalog
Configuring I/O
7.2 Installing general station description files for SINUMERIK I/O
SINUMERIK STEP 7 Toolbox V15.1
Configuration Manual, 12/2018, A5E46279635B AA 151

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
