Procedure
To create a PLC commissioning archive, proceed as follows:
1. In the project tree, right-click the device name, e.g. "CNC_1", and select "Create
SINUMERIK archive > Hardware and all program blocks" in the shortcut menu.
The "Create SINUMERIK archive" dialog opens.

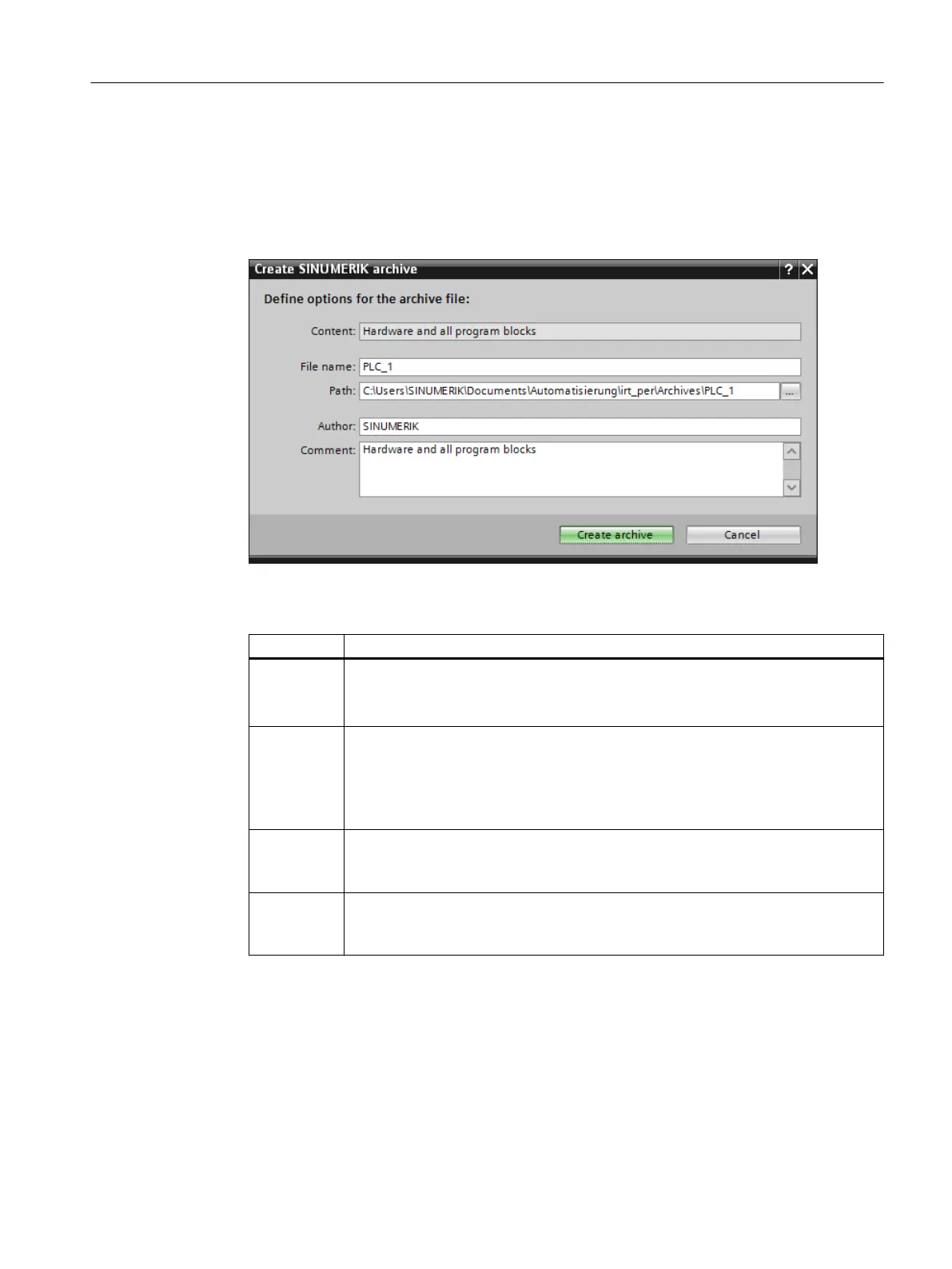

Figure 3-6 "Create SINUMERIK archive" dialog with hardware data and program blocks
2. Make the required settings:
Element Purpose
File name Enter the desired file name of the SINUMERIK archive in the text field.
File extensions cannot be changed
The file extension (.arc) is not displayed and cannot be changed.
Path Click Browse and select a directory, or enter the directory directly.
Default storage location for data export
The used path is shown as the default setting the next time you export an archive.
To
specify the default setting for the data export in the settings, switch to "General >
General > Data exchange > Storage location for data export" in the settings.
Author Name of the author or a person responsible for the project.
The default setting corresponds to the setting of the user name in the TIA Portal
under: "Extras > Settings > General > General settings > User name".
Comment Input of a comment for the SINUMERIK archive.
As
default setting, the comment field contains an entry whether the archive contains
only hardware or hardware and all program blocks.
3. Click "Create archive" to confirm your input.
Result
The SINUMERIK archive is created and stored in the path that you have specified.
Configuring the NCU
3.6 Creating SINUMERIK PLC archives
SINUMERIK STEP 7 Toolbox V15.1
Configuration Manual, 12/2018, A5E46279635B AA 51
